Descontinuado
Code - 06728-01

LGX® Fiber Optics Shelves Slack Storage

The LST1LP Shelf is ready to be mounted into a 23-inch (58.4 cm) frame (19-inch frame mounting is possible with optional brackets). These shelves are equipped two pivoting trays. Each tray will accommodate up to 150 feet of 3.0 mm slack jumper cordage. Five bend limiting drums are included with each tray to prevent bending fibers less than 3-inch (7.62 cm) diameter. The dimensions of these shelves are 17 inches wide by 11.5 inches deep by 2.5 inches high. This shelf has the exact same profile of the LGX shelves.

The LST1LP Shelf is ready to be mounted into a 23-inch (58.4 cm) frame (19-inch frame mounting is possible with optional brackets). These shelves are equipped two pivoting trays. Each tray will accommodate up to 150 feet of 3.0 mm slack jumper cordage. Five bend limiting drums are included with each tray to prevent bending fibers less than 3-inch (7.62 cm) diameter. The dimensions of these shelves are 17 inches wide by 11.5 inches deep by 2.5 inches high. This shelf has the exact same profile of the LGX shelves.

Product Description

The LST1LP Shelf is ready to be mounted into a 23-inch (58.4 cm) frame (19-inch frame mounting is possible with optional brackets). These shelves are equipped two pivoting trays. Each tray will accommodate up to 150 feet of 3.0 mm slack jumper cordage. Five bend limiting drums are included with each tray to prevent bending fibers less than 3-inch (7.62 cm) diameter. The dimensions of these shelves are 17 inches wide by 11.5 inches deep by 2.5 inches high. This shelf has the exact same profile of the LGX shelves.

Attributes

  • Strictly slack storage
  • 2.5” high(6.3 cm) 17” wide(43.2 cm) 11.5” deep(27.9 cm)
  • 19” or 23” Frame Mount

Product Code

LST1LP-10/2.5

Comcode

106 795 057

Note

If mounting into 19-inch (48.3 cm) frame, order optional mounting bracket (Comcode 107 317 794).

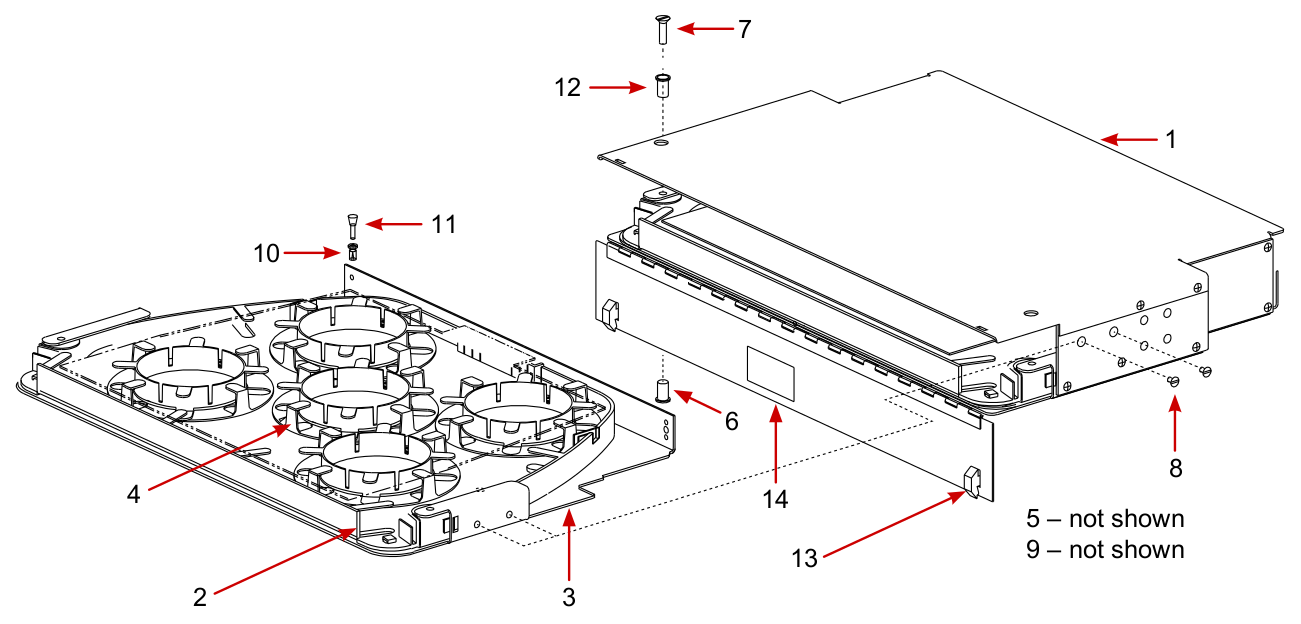

LST1LP Shelf

Stock List

Stock List
Item Quantity Description
1 1 Shelf rivet assembly
9 12 Screw, flat head #12-24 X 3/8 lg (not shown)
2 2 Tray sub-assembly
10 10 Nylatch grommet HN3G-32-2
3 1 Tray support sub-assembly
11 10 Nylatch plungen HN3G-32-4-2
4 10 Drum, 3"
12 2 Pem stand-off, 5/16 lg
5 2 Mounting bracket, 2.5" shelf (not shown)
13 2 Slide latch
6 2 Pem stand-off, 5/8 lg
14 2 Label
7 2 Screw, pan head #10-32 X 3/4 lg
N/A 1 Instruction sheet
8 4 Screw, flat head #6-32 X 1/4 lg
