M-Pack 1.2 mm Cordage – Interconnect

Features

Lightweight cordage with highly reduced diameter
Available in simplex and duplex designs
OFNR (UL 1666), OFNP (NFPA-262), LSZH (IEC 60332-1)
ROHS compliant and environmentally friendly; free of heavy metals and polybrominated fire retardants

Benefits

Compact, lightweight cordage allows ease of deployment and termination
Ideal for use in high-density frame management systems and in building micro assemblies
Increase packing density by 196%

Product Description

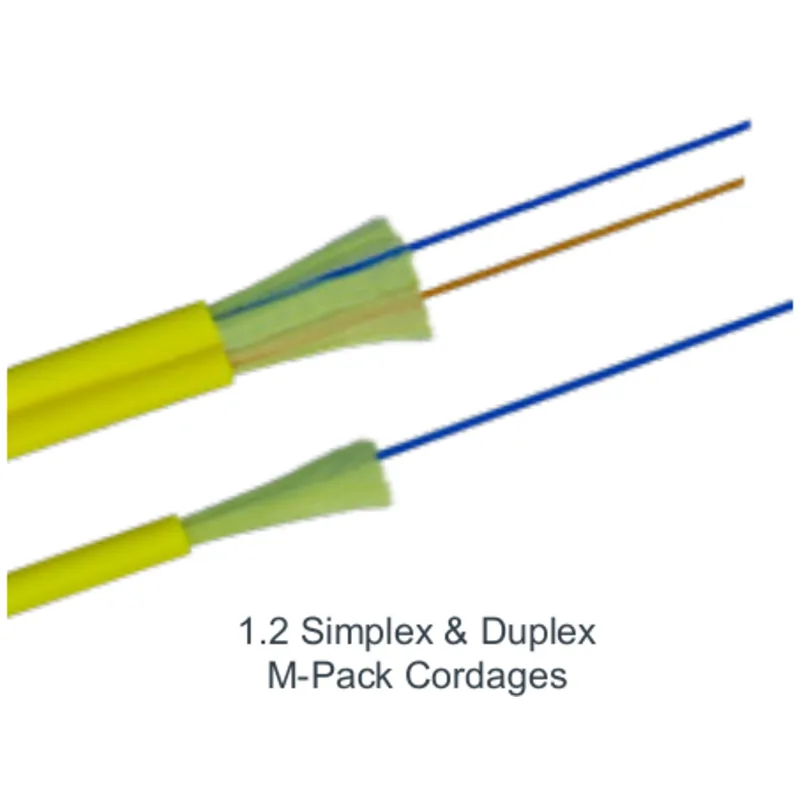

When you need a highly compact, leading-edge cordage solution for demanding high-density applications, look to the new M-Pack® Simplex Interconnect Cordage. This new cordage series was specifically designed to answer the need for extremely small and lightweight, yet durable and flexible cordages to help facilitate rapid installation, termination and splicing. World-class OFS optical fiber lies at the heart of each M-Pack Simplex Cordage. Aramid yarn is wrapped around the non-buffered, 250 micron (µm) optical fiber for protection and to add overall strength to the cordage. This construction is then carefully encased in a durable, flame-resistant jacket. The 1.2 mm M-Pack Simplex Cordage is also available in duplex zipcord and round duplex constructions and features PVC OFNR riser-rated or OFNP jacket. Also available with LSZH jacket material in simplex and duplex round constructions.

Why To Use It

The M-Pack Interconnect Cordage is specifically engineered for customers who need an extremely compact and flexible, yet highly durable cordage optimized for use with demanding high-density and FTTx drop solutions. This cordage’s small diameter and light weight allow ease of deployment and termination along with rapid access for splicing for use in FTTx drop solutions. The cordage also offers: Optical Fiber Quality: OFS develops and produces world-class optical fibers with precise fiber geometries for a broad range of global applications. Strength and Durability: The M-Pack Interconnect Cordage is designed to exceed industry tensile standards and features extra aramid yarn in each cordage for added strength. Meets the same testing standards of 1.6 & 2.0 mm cordage. Material Performance Stability: Controlling cordage shrinkage is key to delivering a high-performance connectorized product. OFS’ extensive knowledge of materials allows us to design and produce cordages that help enterprise cabling networks and other high-bandwidth applications.

Specification

MP12

Version

Simplex

Fiber Count

1

Outer Diameter in. (mm)

0.05 (1.2)

Weight lb/kft (kgm/km)

.90 (1.34)

Maximum Tensile lb (N)

22 (100)

Flame Spread

OFNR, OFNP, or LSZH CPR

Mechanical

GR 409 Interconnect – All Cordages

Performance Standard

Cordage tested and listed to applicable standards including Telcordia GR-409/ICEA-S-83-596/ICEA-S-104-696/ICEA-S-115-730; TIA-568: TIA 598. Cordage UL Listed as compliant with NEC Article 770; CSA; EN 50173.

Handling Temperature Installation

32º F to 140º F (-0º C to 60º C)

Handling Temperature Operation

32º F to 158º F (-0º C to 70º C)

Handling Temperature Storage

-40º F to 158º F (-40º C to 70º C)

CPR Rating

LSZH Versions: Dca-s1, d0, a2 Riser Versions: Dca-s1, d0, a3

Dop Lookup

LSZH: MP12-001-A-H Riser: MP12-001-A-R

Version

Duplex Zipcord

Fiber Count

2

Outer Diameter in. (mm)

0.05 x 0.10 (1.2 x 2.48)

Weight lb/kft (kgm/km)

1.8 (2.68)

Maximum Tensile lb (N)

44 (200)

Flame Spread

OFNR

Mechanical

GR 409 Interconnect – All Cordages

Performance Standard

Cordage tested and listed to applicable standards including Telcordia GR-409/ICEA-S-83-596/ICEA-S-104-696/ICEA-S-115-730; TIA-568: TIA 598. Cordage UL Listed as compliant with NEC Article 770; CSA; EN 50173.

Handling Temperature Installation

32º F to 140º F (-0º C to 60º C)

Handling Temperature Operation

32º F to 158º F (-0º C to 70º C)

Handling Temperature Storage

-40º F to 158º F (-40º C to 70º C)

Specification

MX12

Version

Round Duplex

Fiber Count

2

Outer Diameter in. (mm)

0.05 (1.2)

Weight lb/kft (kgm/km)

0.94 (1.41)

Maximum Tensile lb (N)

44 (200)

Flame Spread

OFNR, Plenum, or LSZH CPR

Mechanical

GR 409 Interconnect – All Cordages

Performance Standard

Cordage tested and listed to applicable standards including Telcordia GR-409/ICEA-S-83-596/ICEA-S-104-696/ICEA-S-115-730; TIA-568: TIA 598. Cordage UL Listed as compliant with NEC Article 770; CSA; EN 50173.

Handling Temperature Installation

32º F to 140º F (-0º C to 60º C)

Handling Temperature Operation

32º F to 158º F (-0º C to 70º C)

Handling Temperature Storage

-40º F to 158º F (-40º C to 70º C)

CPR Rating

LSZH Versions: Dca-s1, d0, a2 Riser Versions: Dca-s1, d0, a3

Dop Lookup

LSZH: MP12-001-A-H Riser: MP12-001-A-R

Code

W

Single-Mode Descripter

AllWave FLEX+ ZWP Bend-Optimized Optical Fiber

Grade

G.657.A2

1310 nm

0.4 (dB/km)

1550 nm

0.3

MCA (Z)

4

Code

9

Single-Mode Descripter

AllWave FLEX MAX Bend-Optimized Optical Fiber

Grade

G.652.D & G.657.B3

1310 nm

0.4

1550 nm

0.3

MCA (Z)

4

Code

K

Multimode Descripter

LaserWave® FLEX G+ Optical Fiber

Grade

OM2

1310 nm

3.5 (dB/km)

1550 nm

45778

MCA (Z)

G

Code

3

Multimode Descripter

LaserWave FLEX 300 Optical Fiber

Grade

OM3

1310 nm

45780

1550 nm

45778

MCA (Z)

G

Code

5

Multimode Descripter

LaserWave FLEX 550 Optical Fiber

Grade

OM4

1310 nm

45780

1550 nm

45778

MCA (Z)

G

Example

MP12-001A-WRY-4-01-250 ¹

Short Description

MBNN-NNNV-WXY-Z-UU-DDD

Code Description MP

M-Pack Interconnect Cordage

Code Description MX

M-Pack Round Duplex

Code Description NN

Cable Size 30 = 3.0 mm 38 = 3.8 mm DJ = 4.5 mm 54 = 5.4 mm

Code Description NNN

Fiber Count 002-024

Code Description V

Version

Code Description W

Fiber Type

Code Description X

Jacket Material (Flame Retardant) R = Riser P = Plenum H = Low Smoke/Zero Halogen (CPR Rated)

Code Description Y

Jacket Color Y = Yellow (IN) (Single-Mode Optical Fiber) A = Aqua (IN) (Multimode Optical Fiber)

Code Description Z

Maximum Cable Attenuation

Code Description UU

Fiber Groupings or Ribbon Type = 01 or 02

Code Description DDD

Fiber Outer Diameter = 250 µm

Note

Other colors available upon customer request.

¹Part Number shown is for a 1.2 mm M-Pack Simplex Riser-Rated AllWave FLEX+ ZWP Single-Mode Fiber Cordage with a yellow jacket, one (1) 250 micron fiber and standard cable print: OFS M-PACK® ALLWAVE® FLEX+ ZWP BIF G.657.A2 OPTICAL CABLE -C- MP12-001A-WRY-4-01-250 9/125 FT4 C(UL) OFNR OFN-LS [MM/ YY] [LOT NO] [LENGTH IN FEET
