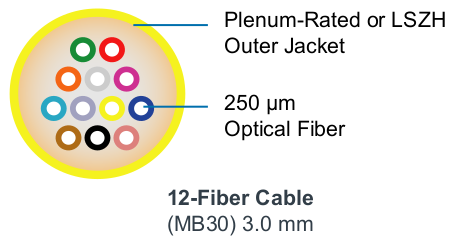

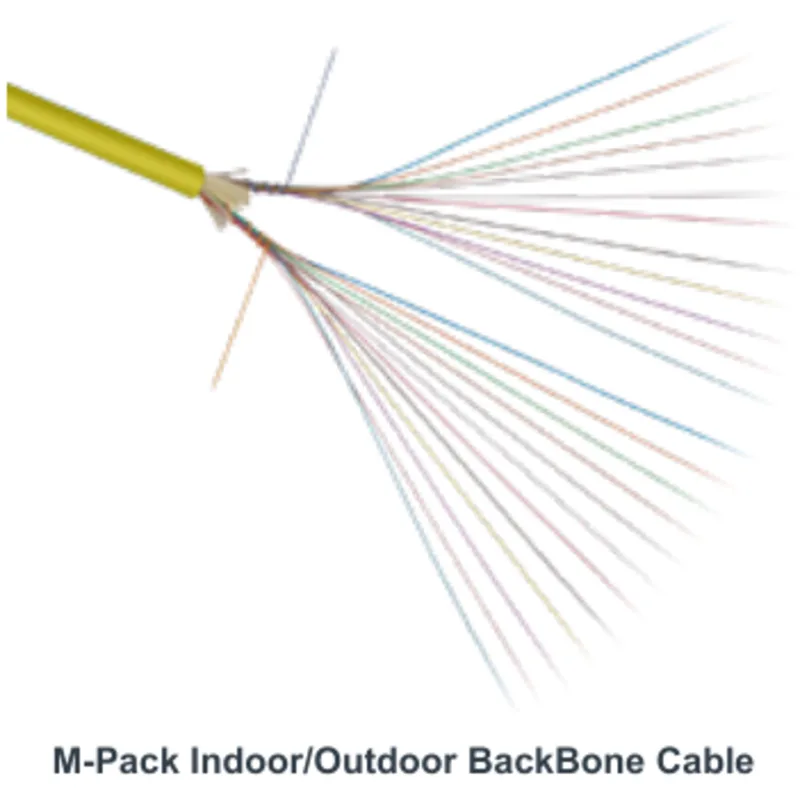

The M-Pack BackBone Cable uniquely combines ratings for plenum, horizontal backbone and indoor/outdoor use to create a truly versatile design. UV-resistant jacket materials (OFNP rated), water-blocking aramids and high tensile fibers together produce a robust cable that delivers excellent performance in short routing outdoor spaces.
The M-Pack BackBone Cable uniquely combines ratings for plenum, horizontal backbone and indoor/outdoor use to create a truly versatile design. UV-resistant jacket materials (OFNP rated), water-blocking aramids and high tensile fibers together produce a robust cable that delivers excellent performance in short routing outdoor spaces.
The M-Pack BackBone Cable uniquely combines ratings for plenum, horizontal backbone and indoor/outdoor use to create a truly versatile design. UV-resistant jacket materials (OFNP rated), water-blocking aramids and high tensile fibers together produce a robust cable that delivers excellent performance in short routing outdoor spaces.
With its versatile design and excellent performance, the M-Pack BackBone Cable can be installed at virtually any point in a network. While this cable’s extra-small footprint helps to improve routing in today's data centers and central offices, it also meets stringent Telcordia GR-409 or ICEA-596 standards for horizontal applications (typically using ladder racking). This cable offers reduced cable congestion, high crush resistance and superior fibers to help create the next generation of cabling solutions.

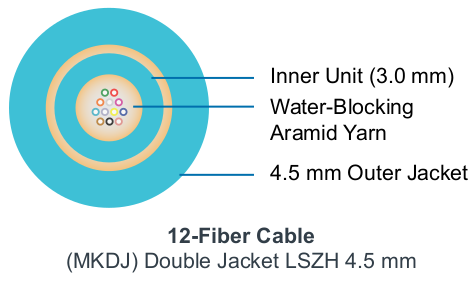

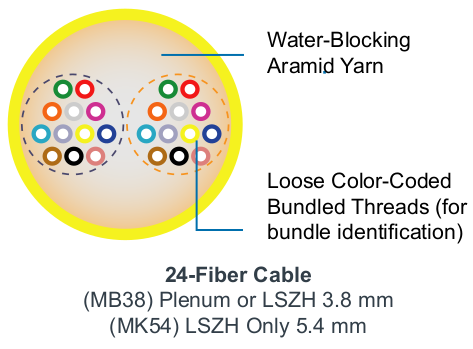

In addition, the new low smoke, zero halogen (LSZH) versions of the M-Pack Backbone Cable offer improved CPR ratings. These cables include a 12-fiber double jacket 4.5 mm design (MKDJ) and a 24-fiber single jacket design (MK54).
Available in a wide range of Lightera fibers to meet the needs of your specific application, the durable, compact M-Pack BackBone Cable is ideal for Data Centers, Central Offices, backbone installations and MPO connector terminations. The indoor/outdoor version, paired with EZ-Bend® optical fiber, is well suited for FTTx applications.
| Specifications | MB30 | MB30 | MB30 | MB30 | MB30 | MB38 | MB38 | MBDJ | MB54 |
|---|---|---|---|---|---|---|---|---|---|
| Version | B | B | B | B | B | A | A | B | C |
| Fiber Count | 2 | 4 | 6 | 8 | 12 |
16 | 24 | 2-12 |
24 |
| Outer Diameter – in. (mm) | 0.12 (3.0) |
0.12 (3.0) |
0.12 (3.0) |
0.12 (3.0) |
0.12 (3.0) |
0.15 (3.8) |
0.15 (3.8) |
0.18 (4.5) |
0.21 (5.4) |
| Weight – lb/kft (kgm/km) | 5.6 (8.1) |
5.8 (8.6) |
6.0 (8.9) |
6.1 (9.1) |
6.5 (9.7) |
8.8 (13.1) |
9.5 (14.2) |
15.2 (22.7) |
19.2 (28.7) |
| Maximum Tensile lb (N) | 100 (440) |
100 (440) |
100 (440) |
100 (440) |
100 (440) |
150 (660) |
150 (660) |
100 (440) |
150 (660) |
| Handling Temperature |
|||||||||
| Installation | -4 °F to 140 °F (-20 °C to 60 °C) | ||||||||
| Operation | -4 °F to 158 °F (-20 °C to 70 °C) | ||||||||
| Storage | -40 °F to 158 °F (-40 °C to 70 °C) | ||||||||
| Jacket Material | Plenum or LSZH | Plenum or LSZH | Plenum or LSZH |
Plenum or LSZH | |||||
| CPR Rating | LSZH Versions: Cca-s1a, d0, a1 | B2ca, s1, d0, a1 | B2ca-s1a, d1, a1 |
B2ca-s1a, d1, a1 | |||||
| Dop Lookup: www.ofs-sales.com/cpr/ | MB30-XXX-B-H (XXX = Fiber Count) | MB38-XXX-D-H | MBDJ-012-B-H | MB54-024-M-H | |||||
| Performance Standard | The M-Pack BackBone Cable meets all or portions of Telcordia GR-409 Horizontal Backbone/ICEA-S-83-596/ICEA-S-104-696/ICEA-S-115-730 and TIA-568. Plenum-rated cables are UL® listed as compliant with NEC® Article 770 as Type OFNP. LSZH-rated cables are CPR rated. |
||||||||
| Fiber Type² | |||||
|---|---|---|---|---|---|
| Code | Single-Mode Descriptor | Grade | 1310 nm (dB/km) | 1550 nm (dB/km) | MCA (Z) |
| W | AllWave FLEX+ ZWP Bend-Optimized Optical Fiber | G.657.A2 | 0.4 | 0.3 | 4 |
| 9 | AllWave FLEX Max Bend-Optimized Optical Fiber | G.657.B3 & G.652.D | 0.4 | 0.3 | 4 |
| D | EZ-Bend Ultra-Bend Insensitive Optical Fiber | G.657.B3 | 0.4 | 0.3 | 4 |
| Code | Multimode Descriptor | Grade | 850 nm | 1300 nm | MCA (Z) |
| K | LaserWave FLEX G+ Optical Fiber | OM2 | 3.5 | 1.5 | G |
| 3 | LaserWave FLEX 300 Optical Fiber | OM3 | 3.5 | 1.5 | G |
| 5 | LaserWave FLEX 550 Optical Fiber | OM4 | 3.5 | 1.5 | G |
| 4 | LaserWave FLEX 550 WideBand Optical Fiber | OM5 | 3.5 | 1.5 | G |
| M-Pack Indoor/Outdoor Backbone Cable Ordering Information | ||
|---|---|---|
| Example | MB30-012B-9PY-4-12-250¹ |
|
| Short Description | MBNN-NNNV-WXY-Z-UU-DDD |
|
| MB | M-Pack I/O Backbone Cable | |
| NN | Cable Size 30 = 3.0 mm 38 = 3.8 mm DJ = 4.5 mm 54 = 5.4 mm |
|
| NNN | Fiber Count: 002-024 | |
| V | Version (See Chart) | |
| W | Fiber Type (see Chart) | |
| X | Jacket Material (flame Retardant) P = Plenum H = Low Smoke/Zero Halogen (CPR Rated) |
|
| Y | Jacket Color K = Black (IO) Y = Yellow (IN) O = Orange (IN) W = White (IO) A = Aqua (IN) L = Lime (IN) |
|
| Z | Maximum Cable Attenuation (See Chart) | |
| UU | Fiber Groupings or Ribbon Type = 08, 12 or 16 | |
| DDD | Fiber Outer Diameter = 250 µm | |
| Note | * NOTE: Other colors available upon customer request. ¹ Part Number shown is for an M-Pack BackBone Plenum-Rated Cable with 12 AllWave FLEX Max ZWP Single-Mode Fibers and standard cable print. Lightera M-PACK® ALLWAVE® FLEX MAX ZWP BIF G.657.B3 & G.652.D OPTICAL CABLE -C- MB30-012B-9PY-4-12-250 9/125 FT6 C(UL) OFNP {MM/YY} {Lot No} {LENGTH IN FEET} |
|
