- Fully compatible with other LC connectors
- Reduces the need for slack storage
- Reduces assembly time
- No polishing or epoxy required
- Easy instructions
- Useful in multiple applications
Code -
06724-01

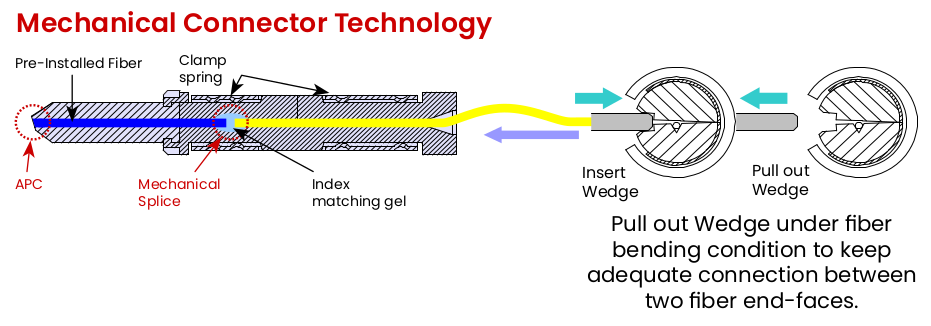

Mechanical LC Connector Eliminates the Use of Splicing, Polishing or Epoxy for Bare or Buffered Fiber

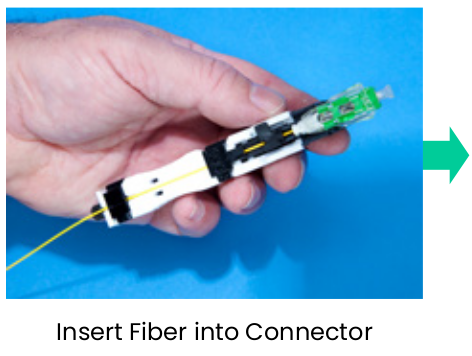

Lightera offers a mechanical LC connector that provides quick and easy assembly in the field. The Connector is similar to factory installed LCA and LCU connectors. It has the familiar push-pull insertion and release that is known by most craft personnel. Minimum amount of tools required and has an easy to follow installation method.
The offering is for single-mode and multimode connectors that can mount on bare or buffered fiber.
Lightera offers a mechanical LC connector that provides quick and easy assembly in the field. The Connector is similar to factory installed LCA and LCU connectors. It has the familiar push-pull insertion and release that is known by most craft personnel. Minimum amount of tools required and has an easy to follow installation method.
The offering is for single-mode and multimode connectors that can mount on bare or buffered fiber.
Features And Benefits
Product Description
Lightera offers a mechanical LC connector that provides quick and easy assembly in the field. The Connector is similar to factory installed LCA and LCU connectors. It has the familiar push-pull insertion and release that is known by most craft personnel. Minimum amount of tools required and has an easy to follow installation method.
The offering is for single-mode and multimode connectors that can mount on bare or buffered fiber.
Performance Characteristics
| Performance Characteristics | |
|---|---|
| Applicable Fiber |
|
| Insertion Loss | ≤ 0.25 dB |
| Return Loss | ≥ 60 dB |
| Durability | < 0.1 dB change, 500 matings |
| Operation Temperature | -40 °F ~ +167 °F (-40 °C – +75 °C) |
| Storage Temperature | -40 °F ~ +185 °F (-40 °C + +85 °F) |
| Tensile | TIA/EIA 568-B.3 |
| Intermateability | IEC 61754-4 |
| Assembly Time | Typically 2 min |
Applications
- FTTx MDU and SFU
- CLEC/ILEC
- MSO/Broadband/CATV
- Municipal networks
- Data centers
Mechanical LC Connector Ordering Information ¹ ²
| Mechanical LC Connector Ordering Information ¹ ² | ||
|---|---|---|
| Comcode | Item | Specification |
| 301066585 | Mechanical LCA Connector – 250/900 μm fiber | MOCLCA-SM-250um/900um-W/TOOL-50 PACK |
| 301066254 | Mechanical LCU Connector – 250/900 μm fiber | MOCLCU-SM-250um/900um-W/TOOL-50 PACK |
| 301066601 | Mechanical LCU Connector – 250/900 μm fiber | MOCLCU-MM-250um/900um-W/TOOL-50 PACK |
| S326A | Cleaver, Flat Cleave | S326A Cleaver |
| ¹ Alignment tool ships with the connector. Cleaving tools required. | ||
| ² Sold in packages of 50. | ||
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
