MiDia®²⁰⁰ Micro FX – 12 Element

Loose Tube Fibre Optic Outdoor Cable 12 Element All Dielectric Dry Core Design MiDia®200 Micro FX

Loose Tube Fibre Optic Outdoor Cable 12 Element All Dielectric Dry Core Design MiDia®200 Micro FX

Datasheet

Application

Air-Blown Installation into Micro-Ducts

Recommended duct size for optimized blowing performance: 12, 14 and 15/16 mm Inner Diameter

Pushforce [N]: 350 in 12 mm ID-Duct

Other combinations are possible, please contact us for more information. Distance achievable depends on route, equipment and quality of duct.

Design

Optical Fibers (200µm)
Gel-filled Buffer Tubes
Non-metallic Central Member
PE-Jacket
Ripcord

Features

Small tubes for a reduced outer diameter
Dry Core Design – Cable core water blocked by means of dry “water swellable” technology – for quicker, cleaner cable prep for jointing
Individual colored tubes

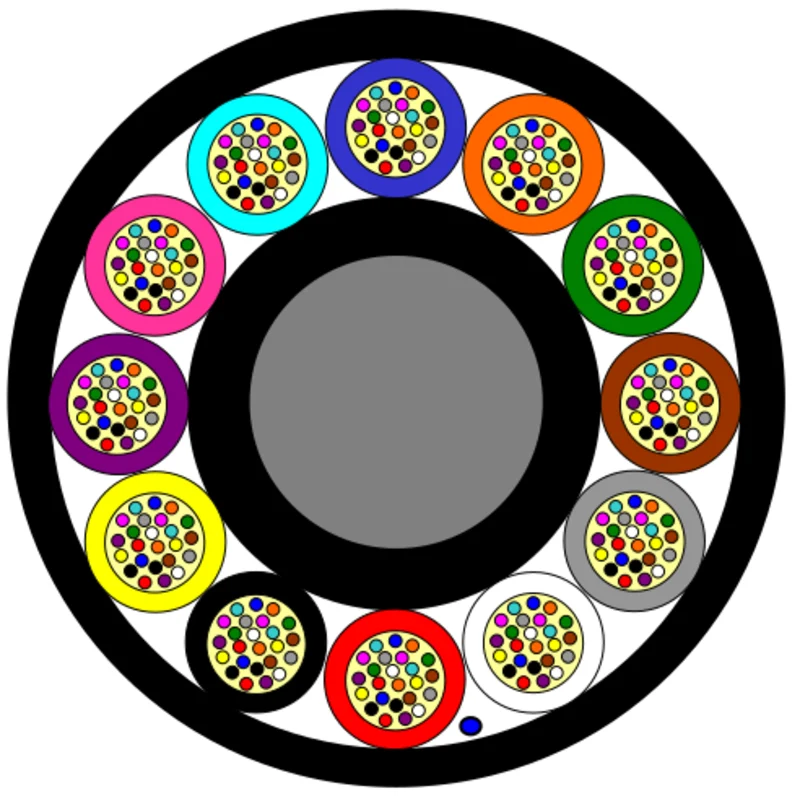

Version illustrated is the 288 Fiber Cable

Note

The information is believed to be accurate at time of issue.
