Part no - 07259-01

MiDia®²⁰⁰ Micro FX – 8 Element

Loose Tube Fibre Optic Outdoor Cable 8 Element All Dielectric Dry Core Design MiDia®²⁰⁰ Micro FX

Air-Blown Installation into Micro-Ducts

Recommended duct size for optimized blowing performance: 10, 12 and 14 mm Inner Diameter

Pushforce [N]: 350 in 10 mm ID-Duct

Other combinations are possible, please contact us for more information. Distance achievable depends on route, equipment and quality of duct.

Small tubes for a reduced outer diameter
Dry Core Design – Cable core water blocked by means of dry “water swellable” technology – for quicker, cleaner cable prep for jointing
Individual colored tubes

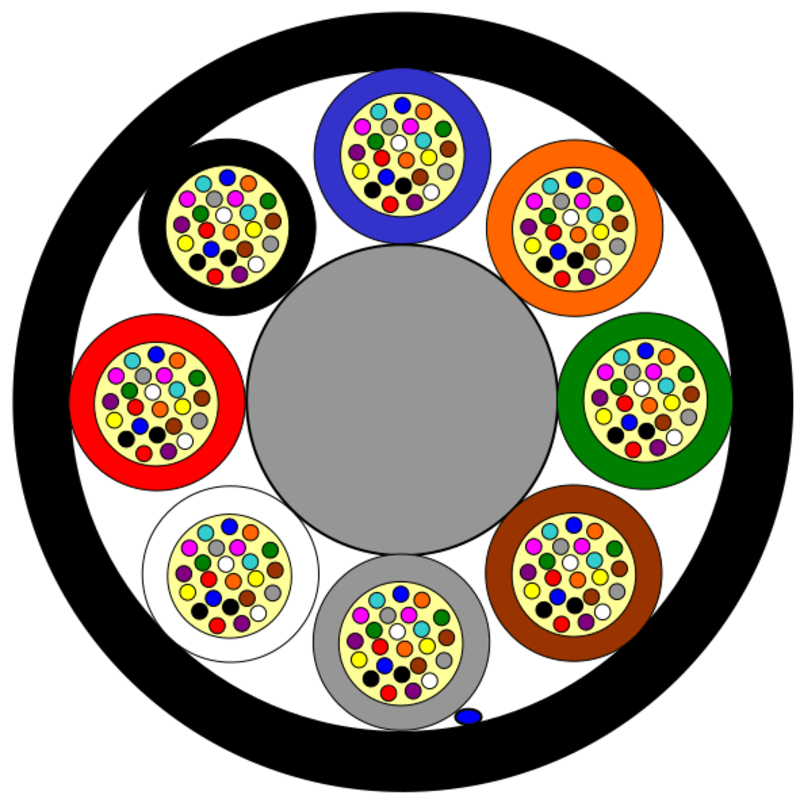

Version illustrated is the 192 Fiber Cable

Product Specification
Fiber Count	Tubes	Core Design	Outer Diameter [mm]	Cable Weight [kg/km]	Standard Length [m]	AT-Code**
24 Fibers Per Tube
192	8	1+8	7.6	55	2000 / 4000 / 6000 / 8000	AT-[][][]46CF-192
This table shows nominal diameter and weight values which may differ in shipments. Fillers are natural colored *Please refer to the LIGHTERA AT- Code. The blanks specify the fiber type

Identification Tube Color Code
1	Blue
2	Orange
3	Green
4	Brown
5	Grey
6	White
7	Red
8	Black

Identification Fiber Color Code
1	Blue
2	Orange
3	Green
4	Brown
5	Grey
6	White
7	Red
8	Black
9	Yellow
10	Violet
11	Rose
12	Aqua
13	Blue*
14	Orange*
15	Green*
16	Brown*
17	Grey*
18	White*
19	Red*
20	Nature
21	Yellow*
22	Violet*
23	Rose*
24	Aqua*
Note	* Black ring Alternative tube and fiber color code available on request

Sheath Marking
LIGHTERA OPTICAL CABLE MIDIA200 MICRO FX [ID] [MM/YYYY] [Handset Sign] 192F [Meter Marking] Alternative sheath printing available on request. In case of order the exact sheath printing text will be clarified with the customer.

Mechanical Properties and Environmental Behavior
Tests according to IEC 60794
	Parameter	Requirement	Value
Tensile Performance: IEC 60794-1-21-E1A and E1B	Long term load	– No attenuation increase* – No fiber strain	Load: 400 N
	Short term load, during installation	– No changes in before versus after load – Max. fiber strain 0.5%	Load: 1100 N
Crush Performance: IEC 60794-1-21-E3A	Long term load	– No attenuation increase*	Load (Plate / Plate): 250 N
	Short term load	– No changes in before versus after load – No damage**	Load (Plate / Plate): 1000 N
Bending Performance: IEC 60794-1-21-E11	Handling fixed	– No attenuation increase*	Bend radius: 140 mm
	During installation (under load)	– No changes in before versus after load	Bend radius: 280 mm
Temperature Performance: IEC 60794-1-22-F1	Operation Installation Storage/Shipping	– No attenuation increase*	-30 to +70°C -15 to +40°C -40 to +70°C
* No changes in attenuation means that any changes in measurement value, either positive or negative within the uncertainty of measurement shall be ignored. The total uncertainty of measurement shall be less than of equal to 0.05 dB. ** Mechanical damage – when examined visually without magnification, there shall be no evidence of damage to the sheath. The imprint of plates will not be considered as damage.

Shipping Information
Cable Length	Drum Diameter	Drum Width	Shipping Weight (calc.) Cable + Drum
2000 m	1000 mm	780 mm	160 kg
4000 m	1000 mm	780 mm	270 kg
6000 m	1200 mm	780 mm	395 kg
8000 m	1400 mm	780 mm	530 kg
The shipping information are given for one-way reels. Reusable reels are available on request.
