Loose Tube Fibre Optic Outdoor Cable 2 Element All Dielectric Dry Core Design MiDia®200 Micro GX PE
Loose Tube Fibre Optic Outdoor Cable 2 Element All Dielectric Dry Core Design MiDia®200 Micro GX PE
Air-Blown Installation into Micro Ducts
Recommended duct size for optimized blowing performance: 5.5, 6 and 8 mm Inner Diameter
Pushforce [N]: 35 in 6 mm ID-Duct
Other combinations are possible, please contact us for more information. Distance achievable depends on route, equipment and quality of duct.

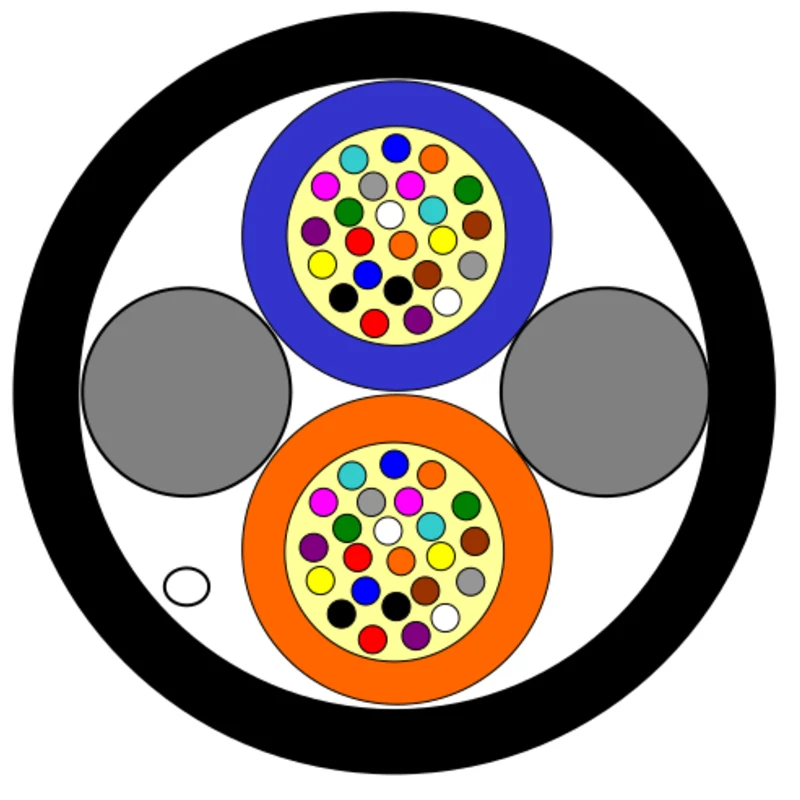

Version illustrated is the 48 Fiber Cable
| Product Specification | ||||||
|---|---|---|---|---|---|---|
| Fiber Count | Tubes | Core Design | Outer Diameter [mm] | Cable Weight [kg/km] | AT-Code* | |
| 24 Fibers Per Tube | ||||||
| 48 | 2 | 2+2 | 3.9 | 15 | AT-[ ][ ][ ]453F-048 | |
| This table shows nominal diameter and weight values which may differ in shipments. * Please refer to the LIGHTERA AT- Code. The blanks specify the fiber type. |
||||||
| Identification Tube Color Code | |
|---|---|
| 1 | Blue |
| 2 | Orange |
| Identification Fiber Color Code | ||
|---|---|---|
| 1 | Blue | |
| 2 | Orange | |
| 3 | Green | |
| 4 | Brown | |
| 5 | Grey | |
| 6 | White | |
| 7 | Red | |
| 8 | Black | |
| 9 | Yellow | |
| 10 | Violet | |
| 11 | Rose | |
| 12 | Aqua | |
| 13 | Blue* | |
| 14 | Orange* | |
| 15 | Green* | |
| 16 | Brown* | |
| 17 | Grey* | |
| 18 | White* | |
| 19 | Red* | |
| 20 | Natural | |
| 21 | Yellow* | |
| 22 | Violet* | |
| 23 | Rose* | |
| 24 | Aqua* | |
| Note | * Black ring Alternative tube and fiber color code available on request. |
|
LIGHTERA OPTICAL CABLE MIDIA200 MICRO GX [ID] [MM/YYYY] [Handset Sign] 048F [Meter Marking]
Alternative sheath printing available on request.
In case of order the exact sheath printing text will be clarified with the customer.
| Mechanical Properties and Environmental Behavior | |||
|---|---|---|---|
| Tests according to IEC 60794 | |||
| Parameter | Requirement | Value | |
| Tensile Performance: IEC 60794-1-21-E1A and E1B |
Short term load, during installation | – No changes in attenuation before versus after load – Max. fiber strain 0.5% |
Load: 500 N |
| Crush Performance: IEC 60794-1-21-E3A |
Short term load | – No changes in attenuation before versus after load – No damage** |
Load (Plate / Plate): 1000 N |
| Bending Performance: IEC 60794-1-21-E11 |
Handling fixed installed | – No attenuation increase* | Bend radius: 45 mm |
| During installation (under load) | – No changes in attenuation before versus after load | Bend radius: 90 mm | |
| Temperatures Performance: IEC 60794-1-22-F1 IEC 60794-5-10 |
Operation Installation Storage/Shipping |
– No attenuation increase** | -30 to +70°C -15 to +40°C -40 to +70°C |
| * No changes in attenuation means that any changes in measurement value, either positive or negative within the uncertainty of measurement shall be ignored. The total uncertainty of measurement shall be less than of equal to 0.05 dB. ** Mechanical damage – when examined visually without magnification, there shall be no evidence of damage to the sheath. The imprint of plates will not be considered as damage. *** No changes in attenuation either positive or negative higher than 0.15 dB/km in the 1550 nm range according to the Microcable Standard IEC 60794-5-10:2014. |
|||
| Shipping Information | |||
|---|---|---|---|
| Cable Length | Drum Diameter | Drum Width | Shipping Weight (calc.) Cable + Drum |
| 2000 m | 1000 mm | 780 mm | 80 kg |
| 4000 m | 1000 mm | 780 mm | 110 kg |
| 6000 m | 1000 mm | 780 mm | 140 kg |
| The shipping information are given for one-way reels. Reusable reels are available on request. | |||
The information is believed to be accurate at time of issue.
Air-Blown Installation into Micro Ducts
Recommended duct size for optimized blowing performance: 5.5, 6 and 8 mm Inner Diameter
Pushforce [N]: 35 in 6 mm ID-Duct
Other combinations are possible, please contact us for more information. Distance achievable depends on route, equipment and quality of duct.
Version illustrated is the 48 Fiber Cable
| Product Specification | ||||||
|---|---|---|---|---|---|---|
| Fiber Count | Tubes | Core Design | Outer Diameter [mm] | Cable Weight [kg/km] | AT-Code* | |
| 24 Fibers Per Tube | ||||||
| 48 | 2 | 2+2 | 3.9 | 15 | AT-[ ][ ][ ]453F-048 | |
| This table shows nominal diameter and weight values which may differ in shipments. * Please refer to the LIGHTERA AT- Code. The blanks specify the fiber type. |
||||||
| Identification Tube Color Code | |
|---|---|
| 1 | Blue |
| 2 | Orange |
| Identification Fiber Color Code | ||
|---|---|---|
| 1 | Blue | |
| 2 | Orange | |
| 3 | Green | |
| 4 | Brown | |
| 5 | Grey | |
| 6 | White | |
| 7 | Red | |
| 8 | Black | |
| 9 | Yellow | |
| 10 | Violet | |
| 11 | Rose | |
| 12 | Aqua | |
| 13 | Blue* | |
| 14 | Orange* | |
| 15 | Green* | |
| 16 | Brown* | |
| 17 | Grey* | |
| 18 | White* | |
| 19 | Red* | |
| 20 | Natural | |
| 21 | Yellow* | |
| 22 | Violet* | |
| 23 | Rose* | |
| 24 | Aqua* | |
| Note | * Black ring Alternative tube and fiber color code available on request. |
|
LIGHTERA OPTICAL CABLE MIDIA200 MICRO GX [ID] [MM/YYYY] [Handset Sign] 048F [Meter Marking]
Alternative sheath printing available on request.
In case of order the exact sheath printing text will be clarified with the customer.
| Mechanical Properties and Environmental Behavior | |||
|---|---|---|---|
| Tests according to IEC 60794 | |||
| Parameter | Requirement | Value | |
| Tensile Performance: IEC 60794-1-21-E1A and E1B |
Short term load, during installation | – No changes in attenuation before versus after load – Max. fiber strain 0.5% |
Load: 500 N |
| Crush Performance: IEC 60794-1-21-E3A |
Short term load | – No changes in attenuation before versus after load – No damage** |
Load (Plate / Plate): 1000 N |
| Bending Performance: IEC 60794-1-21-E11 |
Handling fixed installed | – No attenuation increase* | Bend radius: 45 mm |
| During installation (under load) | – No changes in attenuation before versus after load | Bend radius: 90 mm | |
| Temperatures Performance: IEC 60794-1-22-F1 IEC 60794-5-10 |
Operation Installation Storage/Shipping |
– No attenuation increase** | -30 to +70°C -15 to +40°C -40 to +70°C |
| * No changes in attenuation means that any changes in measurement value, either positive or negative within the uncertainty of measurement shall be ignored. The total uncertainty of measurement shall be less than of equal to 0.05 dB. ** Mechanical damage – when examined visually without magnification, there shall be no evidence of damage to the sheath. The imprint of plates will not be considered as damage. *** No changes in attenuation either positive or negative higher than 0.15 dB/km in the 1550 nm range according to the Microcable Standard IEC 60794-5-10:2014. |
|||
| Shipping Information | |||
|---|---|---|---|
| Cable Length | Drum Diameter | Drum Width | Shipping Weight (calc.) Cable + Drum |
| 2000 m | 1000 mm | 780 mm | 80 kg |
| 4000 m | 1000 mm | 780 mm | 110 kg |
| 6000 m | 1000 mm | 780 mm | 140 kg |
| The shipping information are given for one-way reels. Reusable reels are available on request. | |||
The information is believed to be accurate at time of issue.
