Part no - 07515-01

MiDia®200 Armour – 24 Element Dry Core Design

Loose Tube Fiber Optic Outdoor Cable – 24 Element Dry Core Design

Application

Mainly used for direct burial and for Duct-Installation (HD-PE Tubes) by Cable Pulling

Design

• Optical Fibres 200 µm

• Gel-filled Buffer Tubes

• Non-metallic Central Member

• Water Blocking Material

• Inner PE-Jacket

• Corrugated Steel Tape

• Ripcords

• Outer PE-Jacket

Features

• Armour Cable – high mechanical protection and effective barrier against rodents and lightning

• Dry Core Design – Cable core water blocked by means of dry “water swellable” technology for quicker, cleaner cable prep for jointing

• Small tubes for a reduced outer diameter

• Two Layer Design for a smaller cable diameter and less cable weight

• Individual coloured tubes

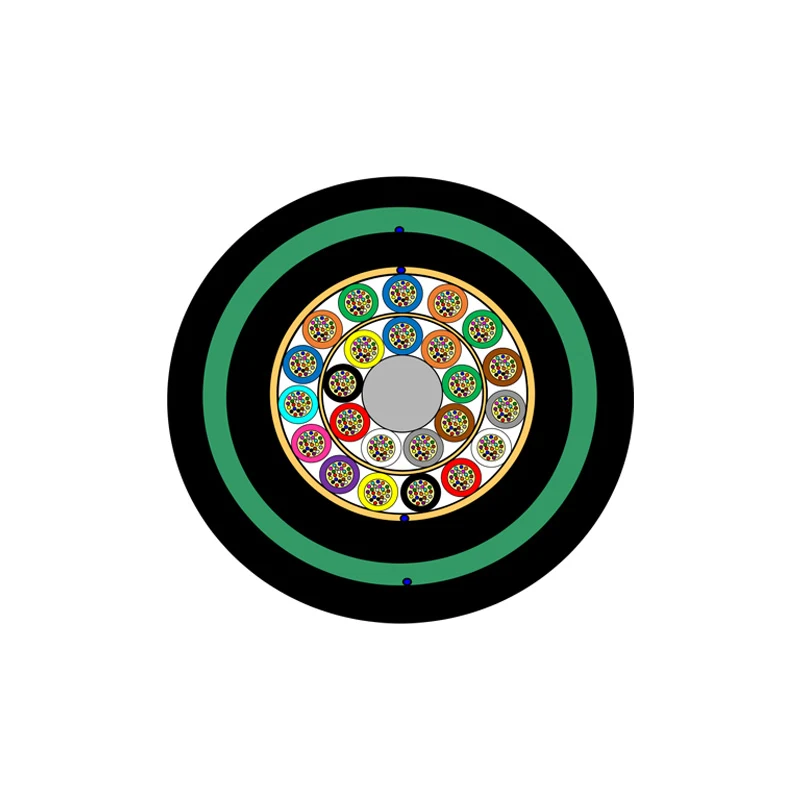

Version illustrated is the 576 Fibre Cable

Product Specification

Product Specification
Fiber Count	Tubes	Core Design	Outer Diameter [mm]	Cable Weight [kg/km]	Standard Length [m]	AT-Code*
24F Fibers Per Tube
576	24	1+24	17.8	300	2000 / 4000 / 6000	AT-[ ][ ][ ]N5CF-576
This table shows nominal diameter and weight values which may differ in shipments.
*Please refer to the LIGHTERA AT- Code. The blanks specify the fiber type

Identification Tube and Fiber Color Code

Identification Tube and Fiber Color Code
1	Blue
2	Orange
3	Green
4	Brown
5	Grey
6	White
7	Red
8	Black
9	Yellow
10	Violet
11	Rose
12	Aqua
13	Blue*
14	Orange*
15	Green*
16	Brown*
17	Grey*
18	White*
19	Red*
20	Black*
21	Yellow*
22	Violet*
23	Rose*
24	Aqua*
* Black ring / Alternative tube and fibre colour code available on request

Tube Colour Code inner Layer (9 tubes)
1	Blue
2	Orange
3	Green
4	Brown
5	Grey
6	White
7	Red
8	Black
9	Yellow

Tube Colour Code outer Layer (15 tubes)
1+13	Blue
2+14	Orange
3+15	Green
4	Brown
5	Grey
6	White
7	Red
8	Black
9	Yellow
10	Violet
11	Rose
12	Acqua

Alternative tube and fibre colour code available on request

Sheath Marking

LIGHTERA CABLE MIDIA ARMOUR [ID] [MM/YYYY] [Handset Sign] xxxF [Meter Marking]

Alternative sheath printing available on request.
In case of order the exact sheath printing text will be clarified with the customer.

Mechanical Properties and Environmental Behavior

Mechanical Properties and Environmental Behavior
Tests according to IEC 60794
	Parameter	Requirement	Value
Tensile Performance: IEC 60794-1-21-E1A and E1B	Long term load	– No attenuation increase* – No fibre strain	Load: 1000 N
	Short term load, during installation	– No changes in attenuation before versus after load – Max. fiber strain 0.5%	Load: 1.5 x W W is the weight of the cable in N
Crush Performance: IEC 60794-1-21-E3A	Long term load	– No attenuation increase*	Load (Plate / Plate): 1500 N
	Short term load	– No changes in attenuation before versus after load – No damage**	Load (Plate / Plate): 3000 N
Bending Performance: IEC 60794-1-21-E11	Handling fixed installed	– No attenuation increase*	Bend radius: 15x D
	During installation (under load)	– No changes in attenuation before versus after load	Bend radius: 20x D D is the cable diameter
Temperature Performance: IEC 60794-1-22-F1	Operation Installation Storage/Shipping	– No attenuation increase*	-40 to +70°C -15 to +60°C -40 to +70°C
No changes in attenuation means that any changes in measurement value, either positive or negative within the uncertainty of measurement shall be ignored. The total uncertainty of measurement shall be less than or equal to 0.05 dB. *Mechanical damage – when examined visually without magnification, there shall be no evidence of damage to the sheath. The imprint of plates will not be considered as damage.

Shipping Information

Shipping Information
Cable Length	Drum Diameter	Drum Width	Shipping Weight (calc.) Cable + Drum
2000 m	1550 mm	1060 mm	730 kg
4000 m	1700 mm	1060 mm	1370 kg
6000 m	2350 mm	1410 mm	2250 kg
The shipping information are given for one-way reels. Reusable reels are available on request.
