MPO Passive Optical Splitter Modules & Fanouts

The Multifiber Push-On (MPO) Optical Splitter Module Family provides a unique plug and play solution to meet the needs of today’s FTTx networks. Combining the optical splitter expertise of Lightera Electric with the connectivity and packaging capabilities of Lightera, the MPO Splitter Module offers superior performance in a flexible and easy-to-manage package.

The use of MPO Fanouts simplifies cable management by decreasing installation time and providing a flexible solution. The MPO Fanout structure allows for rapid hot swapping of modules for future upgrade to high bandwidth WDM or reproportioned split ratios. The connectorized module also reduces time consuming documentation and rerouting in the future – the design makes it easy to remove five connectors and to swap out the module.

Designed for demanding FTTx installations, Lightera Electric’s PLC Splitters provide low loss, wideband performance. Splitter modules are packaged in robust cassettes that plug into a standard LGX® Fiber Management panel opening.

The LC or SC interface on the input takes advantage of the outstanding low loss performance of the Lightera connectors, while the MPO Connector provides high-density connectivity on the output side.

The combination of low loss splitters and connector interfaces maximizes link lengths. When used with AllWave® ZWP Single-Mode Fiber in Lightera’ comprehensive FOX (Fiber Optics to the X) Solution® Offering, network operators can offer triple play functionality at extended distances in a cost-effective package.

The LC or SC interface on the input takes advantage of the outstanding low loss performance of the Lightera connectors, while the MPO Connector provides high-density connectivity on the output side.

Features And Benefits

Modular approach provides cost effective incremental growth: – Improves and simplifies fiber routing
The PLC splitters are Telcordia GR-1221-CORE and GR-1209-CORE tested: – Support industry standard applications – Long term reliability assurance.
Low insertion loss and reflectance: – Support high-speed applications – Support longer link lengths
Solution-based engineering support to meet all FTTx networking requirements: – Offer unique designs and configurations – Customer specific application engineering
Universal solution: – Simplified stocking/ replacement inventory

Product Description

The Multifiber Push-On (MPO) Optical Splitter Module Family provides a unique plug and play solution to meet the needs of today’s FTTx networks. Combining the optical splitter expertise of Lightera with the connectivity and packaging capabilities of Lightera, the MPO Splitter Module offers superior performance in a flexible and easy-to-manage package.

Designed for demanding FTTx installations, Lightera’s PLC Splitters provide low loss, wideband performance. Splitter modules are packaged in robust cassettes that plug into a standard LGX® Fiber Management panel opening.

The LC or SC interface on the input takes advantage of the outstanding low loss performance of the Lightera connectors, while the MPO Connector provides high-density connectivity on the output side.

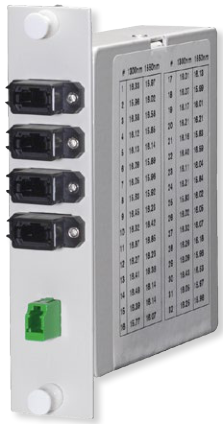

MPO Splitter Module

The Lightera MPO Splitter Module is available in multiple configurations to meet customer requirements. The Lightera splitters also utilize Flame Hydrolysis Deposition (FHD) technology, ensuring better thermal stability. Designed to meet the demanding requirements of both inside and outside plant applications, the splitter module meets Telcordia GR-1221-CORE and GR-1209-CORE Requirements.

The 8 fiber MPO interface on the module output allows customers to minimize the number of cable sheaths exiting the module, simplifying cable management. Fanout lengths can be ordered based on individual engineering requirements, limiting the amount of slack that needs to be accommodated in a restricted amount of space.

MPO Splitter Module Specifications

MPO Splitter Module Specifications
Specification	1 x 16	1 x 32
Operating Wave Length	1260-1625 nm
Max Insertion Loss With Connectors (max.)	14.2	17.2 dB
Pdl (max.)	0.3 dB
Return Loss (min.)¹	50 dB
Directivity (min.)¹	50 dB
Operating Temperature	Min. -40 °C Max. 75 °C
Storage Temperature	Min. -40 °C Max. 85 °C
Note	¹ Without Connectors


Multifiber Push-On (MPO) Optical Splitter Module Family

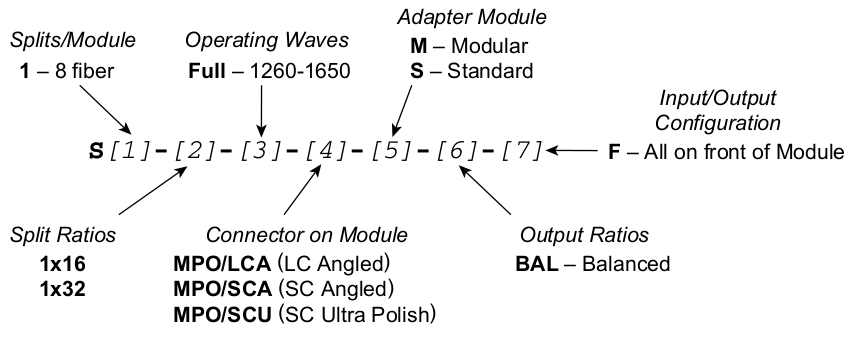

Custom Splitter Module Ordering Scheme

Custom Splitter Module Ordering Scheme
Syntax	S[1] – [2] – [3] – [4] – [5] – [6] – [7]
S[1]	Splits/Module1 – 8 fiber
S[2]	Split Ratios1x161x32
S[3]	Operating WavesFull – 1260-1650
S[4]	Connector on ModuleMPO/LCA (LC Angled)MPO/SCA (SC Angled)MPO/SCU (SC Ultra Polish)
S[5]	Adapter ModuleM – ModularS – Standard
S[6]	Output RatiosBAL – Balanced
S[7]	Input/Output ConfigurationF – All on front of Module
Note	Contact your local Lightera Representative for custom module configurations.


Multifiber Push-On (MPO) Optical Splitter Module Family

Splitter Module Ordering Information

Splitter Module Ordering Information
Comcode	Product Code	Description
300449352	S1-1X32-FULL-MPO/LCA-S-BAL-F	1×32 PLC Full Spectrum 1310 thru 1650 MPO Module, LCA Input
300505856	S1-1X32-FULL-MPO/SCA-S-BAL-F	1×32 PLC Full Spectrum 1310 thru 1650 MPO Module, SCA Input

MPO Fanouts

The Lightera MPO fanouts provide reliable, high-quality transitions to individual fiber connection ports. They are available with SC and LC connectors, and offer low insertion loss and reflectance.

MPO Fanout Specifications

MPO Fanout Specifications
Connector Type	Ferrule/polish	Loss (typical)	Loss (max)	Return Loss (min)
MPO	Single-Mode Low Loss APC	0.16 dB	0.35 dB	55 dB
Single Fiber	Single-Mode UPC	0.20 dB	0.50 dB	55 dB
Single Fiber	Single-Mode APC	0.30 dB	0.50 dB	65 dB
