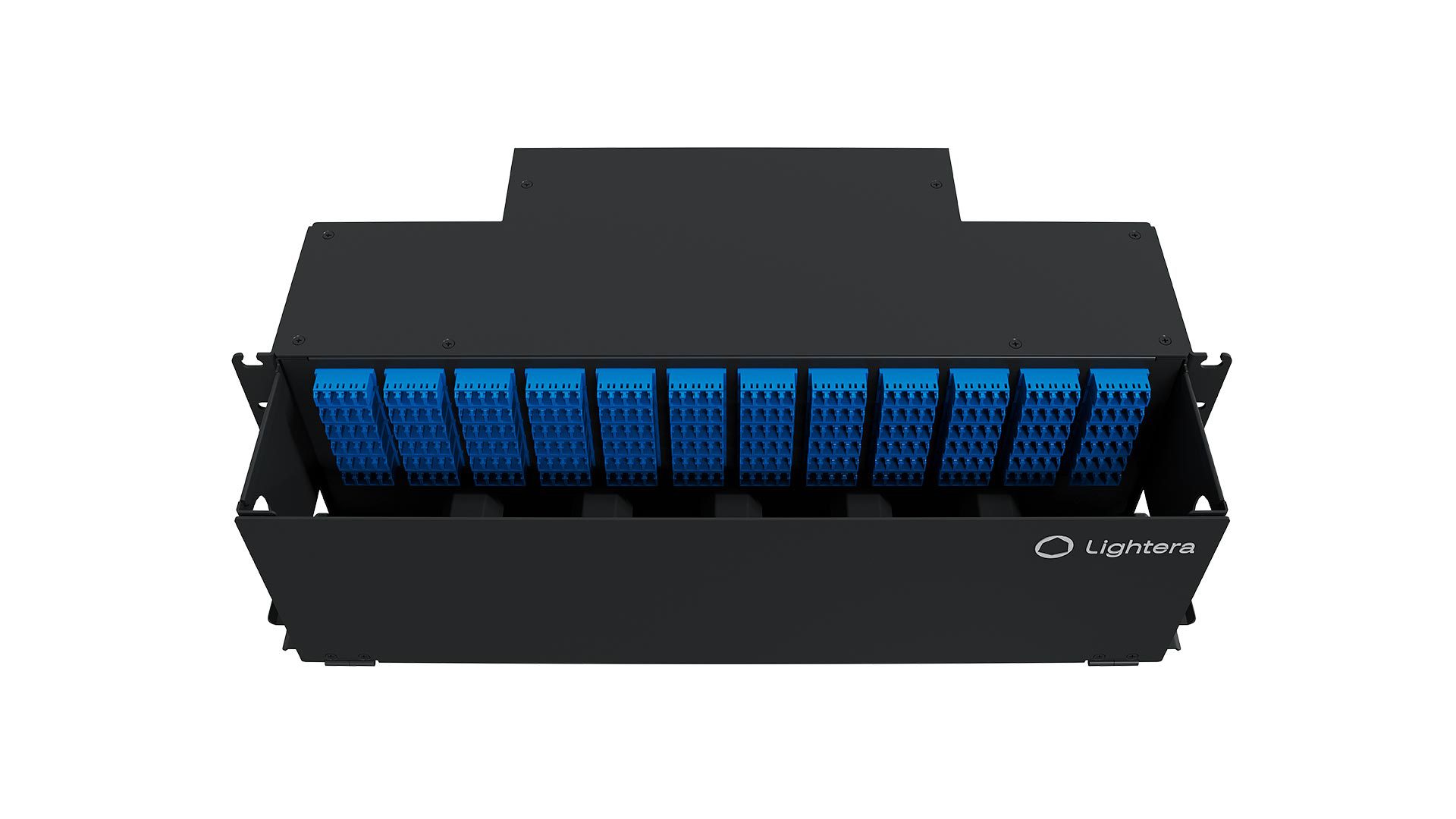

ODF TARS TERMINATION MODULE 3U 288F LC-UPC – 4 X 72F

ODF TARS Termination – Basic Module: Responsible for housing and protecting the optical extensions (ribbon pigtails). Connectorized RR Optical Extension: Each extension has 12 fibers with a connectorized tip. Ideal for applications involving massive fiber fusion with another TARS cabinet.

Description

Module responsible for optical fibres mirroring, composed of main parts:

TERMINATION TARS ODF – Basic Module: Responsible for housing and protecting optical extensions (ribbon pigtails or single pigtails).

Connectorized Optical Extensions: Each optical extension, available in ribbon or single fiber versions, has 12 fibers with an LC connector tip. Ideal for applications with single or massive fiber fusion using the ODF TARS FUSION 4U module.

Optical adapters.

Capacity up to 288 fibers with LC type connectors.

Application

EF – Entrance Facilities Room

TR – Telecommunications Rooms

MMR´s – Meet-Me-Rooms

MDA – Main Distribution Areas

IDA´s – Intermediate Distribution Areas

HDA´s – Horizontal Distribution Areas

EDA´s – Equipment Distribution Area

For more applications, please consult the Application Guide – TARS Solution, available in the website Lightera.com

Advantage

Ribbon or single optical extension versions.

Simple handling, without the need for special tools.

Provides flexibility in high-density fiber systems.

Compact product with internal optical adapter support and storage areas for optical extensions, providing greater protection and security to the system.

It features a fixed assembly with front access only, which facilitates the installation and organization of cables and optical extensions (pigtails).

It features a magnetic locking lid with key.

It features adapters with an internal shutter for greater protection for optical ports.

Suitable for installation in 19" or 23" TARS enclosures.

This product is durable and corrosion-protected, meeting the specified indoor use conditions.

The solution supports mass or single splices with LC-APC or LC-UPC adapters.

Installation Environment

Indoor

Operation Environment

Non Aggressive

Dimensions

Height (mm)

132 mm

Width (mm)

485 mm

Depth (mm)

247 mm

Color

Black RAL 9005

Cable Type

Rollable Ribbon Optical Cables

Flat Ribbon Optical Cables

Loose Tube Optical Cables

Fiber Type

SInglemode OS1

Singlemode OS2

Multimode OM4 (On Request)

Multimode OM5 (On Request)

Connector Type

LC Duplex

SN Duplex (On Request)

SN-MT (On Request)

MDC (On Request)

MMC (On Request)

CS (On Request)

MPO (On Request)

Polishing Type

UPC

APC

Paint Type

Finished in scratchproof high resistant black epoxy

Main Product Material

Carbon Steel

Assembly Standard

Option 1: pigtails Rollable Ribbon bundles up to 144F with 5.0 m extension prepared for massive fusion.

Option 2: pigtails tight bundles up to 144F with 5.0 m extension prepared for single fusion.

Identification

Lighetra's brand on the external front part.

Serigraphy for port numbering positioned above each LC adapter.

Splice Capacity

Prepared with 288 massive or simple splices deployed out in the factory and internally at the ODF.

Number of Positions

Minimum Order Quantity

Included Accessories

Warranty

12 months

25 Years Extended Product Warranty – According to the Lightera Extended Warranty Program.

Compatibility

Rollable Ribbon AccuRiser Cables

Rollable Ribbon AccuTube Cables

Rollable Ribbon AccuRoll Cables

Loose Tube Cables

TARS Cabinet 45U – High Density

ODF TARS Fusion 4U

Duplex LC Optical Patch Cords

Duplex Uniboot LC Optical Patch Cords

RoHS

This product reaffirms our commitment to global sustainability, in full compliance with the European RoHS and REACH Directives. This ensures the restriction of hazardous substances and the responsible management of all chemicals used. We guarantee a safer product for you and with a lower environmental impact. A conscious choice for a greener future.

Standard

TIA-942

TIA-568

TIA-569

EIA-310

IEC 61300

ISO/IEC 11801-5

ABNT NBR ISO IEC 22237

Weight (kg)

5,65

Package

Cardboard Box

Quantity per gift box

Note

1) Trust Lightera. Our standards of excellence are internationally recognized. With ISO 9001 certifications for the Quality Management System and ISO 14001 for the Environmental Management System, we ensure a safer and more efficient future for you, your company, and the planet.

2) Mounting and Installation details, please consult Installation Manual of Product, Available on Lightera's website.

3) Application Details,please consult TARS Application Guide, Available on Lightera's website.

4) TARS is a LGHTERA's brand currently in the registration process, Unauthorized use is subjected to legal action for intellectual property violation.

5) Dislaimer of Liabilty: Lightera reserves the right to make updates to the products described in this document at any time without prior notice. This document is supplied exclusively for information purposes and is not intended to modify or add any warranty or specification of any products or services.

6) Contact Information: For more details and information about our products, please contact us at:
Website: lightera.com
Customer Service Center: 0800 041 2100
E-mail: lightera@latam.lightera.com
