Optimized for Aerial- and Duct Installation with fiber counts up to 192 fibers
Part no -
07116-01
PowerGuide®200 SkyLight – 8 Element
All-Dielectric, Self Supporting (ADSS) Aerial Loose Tube Fiber Optic Cable Dry core design PowerGuide®200 SkyLight
All-Dielectric, Self Supporting (ADSS) Aerial Loose Tube Fiber Optic Cable Dry core design PowerGuide®200 SkyLight
Application
Design
- Optical fibers
- Gel-filled buffer tubes
- Non-metallic central member
- Water blocking threads
- Non-metallic aramid strength elements
- Ripcords
- Outer HDPE-jacket
Benefits
- Excellent, cost-effective option for short aerial cable spans
- Outstanding optical performance, durability and field reliability
- Fast, one-step installation for valuable time and cost savings
- Small cable diameter and bend radius for easy deployment in aerial-to-underground installation
- Easily strippable sheath for quick, convenient cable preparation

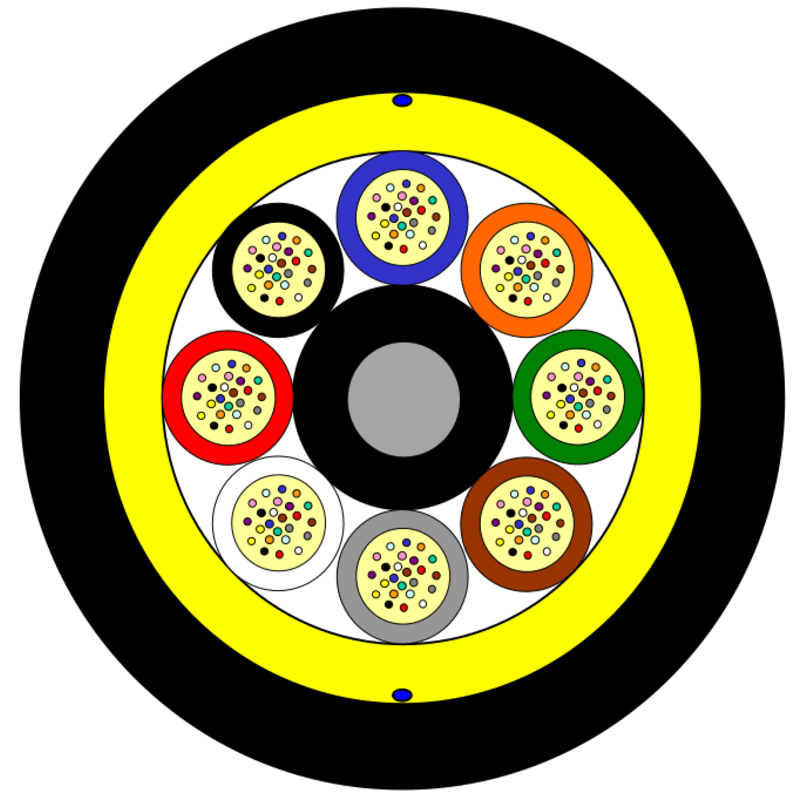

Version illustrated is the 192 Fiber 8 Element Cable
Product Specification
| Product Specification | |||||
|---|---|---|---|---|---|
| Fiber Count | Tubes | Core Design | Outer Diameter [mm] | Cable Weight [kg/km] | AT-Code** |
| 168 | 7 (24F) | 1+8 (1 Filler*) |
11.9 | 120 | AT-[][][]17UF-168-CMEA |
| 192 | 8 (24F) | 1+8 | 11.9 | 120 | AT-[][][]17UF-192-CMEA |
| This table shows nominal diameter and weight values which may differ in shipments. *Fillers are natural colored. **Please refer to the LIGHTERA AT- Code. The blanks specify the fiber type. |
|||||
Identification Tube Color Code
| Identification Tube Color Code | |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Grey |
| 6 | White |
| 7 | Red |
| 8 | Black |
Identification Fiber Color Code
| Identification Fiber Color Code | ||
|---|---|---|
| 1 | Blue | |
| 2 | Orange | |
| 3 | Green | |
| 4 | Brown | |
| 5 | Grey | |
| 6 | White | |
| 7 | Red | |
| 8 | Black | |
| 9 | Yellow | |
| 10 | Violet | |
| 11 | Rose | |
| 12 | Aqua | |
| 13 | Blue* | |
| 14 | Orange* | |
| 15 | Green* | |
| 16 | Brown* | |
| 17 | Grey* | |
| 18 | White* | |
| 19 | Red* | |
| 20 | Nature | |
| 21 | Yellow* | |
| 22 | Violet* | |
| 23 | Rose* | |
| 24 | Aqua* | |
| Note | * Black ring Alternative tube and fiber color code available on request. |
|
Sheath Marking
| Sheath Marking |
|---|
| Lightera OPTICAL ADSS CABLE [ID] [MM/YYYY] [Handset Sign] xxxF [Meter Marking] Alternative sheath printing available on request. In case of order the exact sheath printing text will be clarified with the customer. |
Shipping Information
| Shipping Information | |||
|---|---|---|---|
| Cable Length | Drum Diameter | Drum Width | Shipping Weight (calc.) Cable + Drum |
| 2 Km | 1200 mm | 780 mm | 310 kg |
| 4 Km | 1400 mm | 780 mm | 570 kg |
| 6 Km | 1550 mm | 1060 mm | 850 kg |
| 8 Km | 1700 mm | 1060 mm | 1130 kg |
| The shipping information are given for one-way reels. Reusable reels are available on request. | |||
Temperatures (IEC 60794-1-22-F1)
| Temperatures (IEC 60794-1-22-F1) | |
|---|---|
| Operation | -40°C to +70°C |
| Installation | -15°C to +60°C |
| Storage/shipping | -40°C to +70°C |
Sag and Tension Calculation AT-[ ][ ][ ]17UF-xxx-CMEA
| Sag and Tension Calculation AT-[ ][ ][ ]17UF-xxx-CMEA | |||
|---|---|---|---|
| Conditions | NESC Light Loading | NESC Medium Loading | NESC Heavy Loading |
| Ice Thickness | 0 mm | 6.4 mm | 12.7 mm |
| Wind Pressure | 431 N/m² (95.5 km/h) | 192 N/m² (63.6 km/h) | 192 N/m² (63.6 km/h) |
| Low Temperature | -1 °C | -9.4 °C | -17.8 °C |
| Safety Factor | 0.73 N/m | 2.92 N/m | 4.38 N/m |
| Tension @ Maximum Span for 1,0 % Installation Sag | |||
| Maximum Span | 150 m | 100 m | 60 m |
| MRCL (Maximum Rated Cable Load) | 4000 N | 4000 N | 4000 N |
| MIT (Maximum Installation Tension) | 2100 N | 1400 N | 850 N |
| Installation Temperature | 23 °C | 23 °C | 23 °C |
| Cable Modulus | 798.2 kg/mm² | 798.2 kg/mm² | 798.2 kg/mm² |
| CTE (C-1) | 1.67E- 05 | 1.67E- 05 | 1.67E- 05 |
