R-Pack™ Rollable Ribbon Cordage
Code -
06095-1
R-Pack™ Rollable Ribbon Cordage

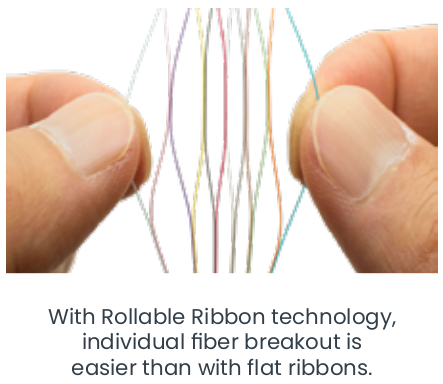

When you need a compact cordage solution for data centers or other high-density, high-bandwidth applications, look to the OFS R-Pack™ Rollable Ribbon Cordage. Designed for use with multifiber connectors, this cordage helps save on energy costs and valuable space while offering outstanding performance. The R-Pack Rollable Ribbon Cordage features 12 or 24 250 micron (µm) optical fibers in a unique Rollable Ribbon structure. There’s no need for binder threads or to align loose fibers for multifiber terminations. The Rollable Ribbon opens into a pre-organized ribbon package, helping aid with termination speed and lowering fiber cross overs. The fibers are surrounded by aramid yarn for reinforcement and then covered with a flame-retardant outer jacket to complete the construction. The R-Pack Rollable Ribbon Cordage is available in Plenum and LSZH Dual Rated designs.
When you need a compact cordage solution for data centers or other high-density, high-bandwidth applications, look to the OFS R-Pack™ Rollable Ribbon Cordage. Designed for use with multifiber connectors, this cordage helps save on energy costs and valuable space while offering outstanding performance. The R-Pack Rollable Ribbon Cordage features 12 or 24 250 micron (µm) optical fibers in a unique Rollable Ribbon structure. There’s no need for binder threads or to align loose fibers for multifiber terminations. The Rollable Ribbon opens into a pre-organized ribbon package, helping aid with termination speed and lowering fiber cross overs. The fibers are surrounded by aramid yarn for reinforcement and then covered with a flame-retardant outer jacket to complete the construction. The R-Pack Rollable Ribbon Cordage is available in Plenum and LSZH Dual Rated designs.
Product Name
Features
- Small diameter, lightweight cordage allows ease of deployment and termination
- Ideal for use in high-density, high-bandwidth applications and optimized for use with multi-fiber connectors
- Available in 12 and 24 fiber counts
- Plenum and LSZH Dual Rated versions
Benefits
- RoHS compliant and environmentally friendly; free of heavy metals and polybrominated fire retardants
- Plenum cordage meets requirements of NFPA 262 OFNP flame and smoke performance; LSZH Dual Rated cordage meets OFNR, FT4 and CPR requirements
Product Description
When you need a compact cordage solution for data centers or other high-density, high-bandwidth applications, look to the OFS R-Pack™ Rollable Ribbon Cordage. Designed for use with multifiber connectors, this cordage helps save on energy costs and valuable space while offering outstanding performance. The R-Pack Rollable Ribbon Cordage features 12 or 24 250 micron (µm) optical fibers in a unique Rollable Ribbon structure. There’s no need for binder threads or to align loose fibers for multifiber terminations. The Rollable Ribbon opens into a pre-organized ribbon package, helping aid with termination speed and lowering fiber cross overs. The fibers are surrounded by aramid yarn for reinforcement and then covered with a flame-retardant outer jacket to complete the construction. The R-Pack Rollable Ribbon Cordage is available in Plenum and LSZH Dual Rated designs.
Version
Plenum
Fiber Count 12 Cable Outer Diameter mm
3.0
Fiber Count 12 Cable Outer Diameter inch
0.12
Fiber Count 12 Cable Weight lb/kft
4.33
Fiber Count 12 Cable Weight kgm/km
6.97
Fiber Count 12 Version
A
Fiber Count 12 CPR Rating
–
Fiber Count 12 DoP Lookup
–
Fiber Count 12 Maximum Tensile Rating
133 N (30 lb)
Fiber Count 24 Cable Outer Diameter mm
3.8
Fiber Count 24 Cable Outer Diameter inch
0.15
Fiber Count 24 Cable Weight lb/kft
8.0
Fiber Count 24 Cable Weight kgm/km
12.9
Fiber Count 24 Version
B
Fiber Count 24 CPR Rating
–
Fiber Count 24 DoP Lookup
–
Fiber Count 24 Maximum Tensile Rating
133 N (30 lb)
Version
LSZH Dual Rated (OFNR and CPR)
Fiber Count 12 (200 or 250 µm) Cable Outer Diameter mm
2.0
Fiber Count 12 (200 or 250 µm) Cable Outer Diameter inch
0.08
Fiber Count 12 (200 or 250 µm) Cable Weight lb/kft
1.9
Fiber Count 12 (200 or 250 µm) Cable Weight kgm/km
2.83
Fiber Count 12 (200 or 250 µm) Version
A
Fiber Count 12 (200 or 250 µm) CPR Rating
Dca-s1, d0, a1
Fiber Count 12 (200 or 250 µm) DoP Lookup
RP20-012-A-D
Fiber Count 12 (200 or 250 µm) Maximum Tensile Rating
100 N (22 lb)
Fiber Count 12 Cable Outer Diameter mm
3.0
Fiber Count 12 Cable Outer Diameter inch
0.12
Fiber Count 12 Cable Weight lb/kft
45812
Fiber Count 12 Cable Weight kgm/km
45754
Fiber Count 12 Version
B
Fiber Count 12 CPR Rating
Cca-s1a, d0, a1
Fiber Count 12 DoP Lookup
RP30-012-B-D
Fiber Count 12 Maximum Tensile Rating
133 N (30 lb)
Fiber Count 24 (200 or 250 µm) Cable Outer Diameter mm
3.0
Fiber Count 24 (200 or 250 µm) Cable Outer Diameter inch
0.12
Fiber Count 24 (200 or 250 µm) Cable Weight lb/kft
4.6
Fiber Count 24 (200 or 250 µm) Cable Weight kgm/km
7.4
Fiber Count 24 (200 or 250 µm) Version
B
Fiber Count 24 (200 or 250 µm) CPR Rating
Cca-s1a, d0, a1
Fiber Count 24 (200 or 250 µm) DoP Lookup
RP30-012-B-D
Fiber Count 24 (200 or 250 µm) Maximum Tensile Rating
133 N (30 lb)
Mechanical and Environmental Performance
Tested per Applicable Requirements of ICEA S-85-596, NEC 770, NEC type-DP, ANSI FDDI, IEEE 802(s), ISO/IEC 11801, TIA 568 and 598, ANSI-X3(s), ATM, Fiber Channel and HIPPI
Version
Plenum
Installation
-4 ºF to 140 ºF ( 20 ºC to 60 ºC)
Operation
-4 ºF to 158 ºF (-20 ºC to 70 ºC)
Storage And Shipping
-40 ºF to 158 ºF ( 40 ºC to 70 ºC)
Version
LSZH Dual Rated
Installation
14 ºF to 140 ºF (-10 ºC to 60 ºC)
Operation
32 ºF to 158 ºF ( 0 ºC to 70 ºC)
Storage And Shipping
-40 ºF to 158 ºF (-40 ºC to 70 ºC)
Code
W
Single-Mode Descripter
AllWave® FLEX+ ZWP Bend-Optimized Optical Fiber
Grade
G.657.A2
1310 nm (dB/km)
0.4
1550 nm (dB/km)
0.3
MCA (Z)
4
Example
RP30-012A-WPY-4-12-250¹
Part Number
RPNN-NNNV-WXY-Z-UU-DDD
RP
R-Pack
NN
Cordage Size 20 = 2.0 mm R-Pack Cordage (12 Fibers) 30 = 3.0 mm R-Pack Cordage (12 Fibers) 38 = 3.8 mm R-Pack Cordage (24 Fibers)
NNN
Fiber Count: 012 or 024
V
Version (see chart)
W
Fiber Type (see chart)
X
Jacket Material (flame retardant) P = Plenum D = Low Smoke Zero Halogen OFNR & CPR Rated
Y
Jacket Color Y = Yellow (Single-mode Optical Fiber)
Z
Maximum Cable Attenuation (see chart)
UU
Fiber Groupings or Ribbon Type = 12
DDD
Fiber Outer Diameter = 200 or 250 µm
