Code - 07216-01

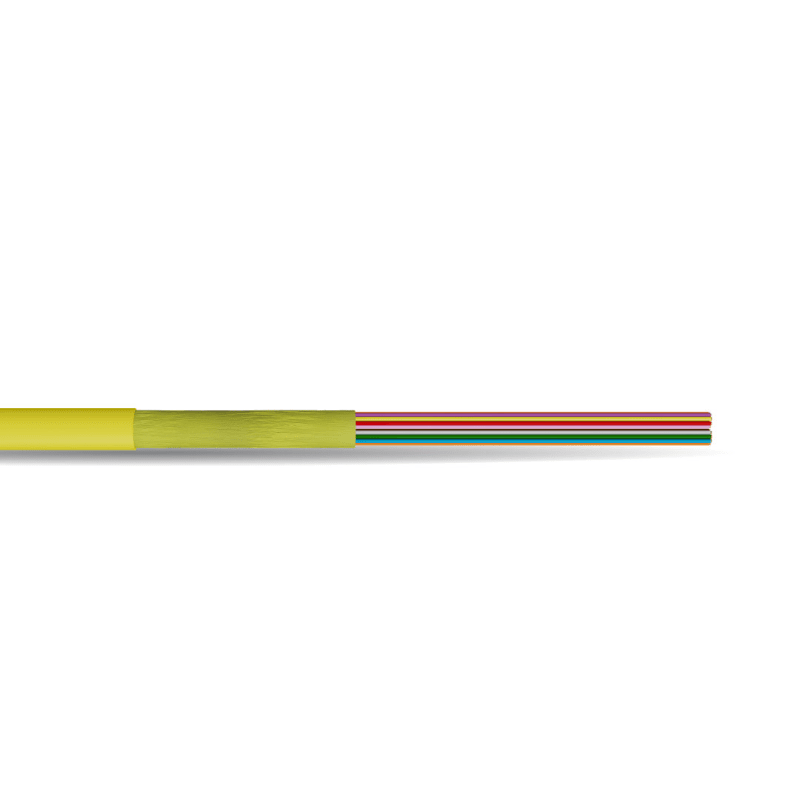

R-Pack™ Rollable Ribbon LSZH Dual Rated Backbone Cable

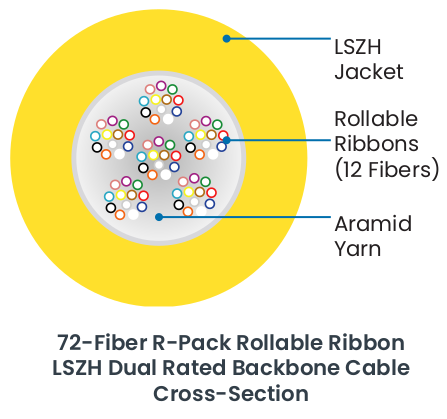

When you need a compact, high density cabling solution for the Data Center, Central Office or other high fiber count, high-bandwidth application look to the R-Pack Rollable Ribbon (RR) LSZH Dual Rated Backbone Cable. The R-Pack RR Backbone Cable features 250 micron (µm) optical fibers in a unique 12 fiber rollable ribbon structure. The rollable ribbons open into preorganized ribbon that helps to speed installations via splicing and aids termination work by reduced fiber-crossovers.

The construction includes both water blocking features and UV stable jacket materials allowing the cable to be used in outdoor environments when needed simplifying routes and bypassing indoor splice points.

When you need a compact, high density cabling solution for the Data Center, Central Office or other high fiber count, high-bandwidth application look to the R-Pack Rollable Ribbon (RR) LSZH Dual Rated Backbone Cable. The R-Pack RR Backbone Cable features 250 micron (µm) optical fibers in a unique 12 fiber rollable ribbon structure. The rollable ribbons open into preorganized ribbon that helps to speed installations via splicing and aids termination work by reduced fiber-crossovers.

The construction includes both water blocking features and UV stable jacket materials allowing the cable to be used in outdoor environments when needed simplifying routes and bypassing indoor splice points.

Features And Benefits

  • Available in a broad range of fiber counts (12, 24, 36, 48, 72, 96, or 144) to support many applications
  • Excellent for use in ladder racking (robust, small diameter and flexible)
  • Global fire rating minimizes inventories and maximizes usage locations CPR and UL OFNR compliant
  • Indoor/Outdoor rated for short runs, building to building or first handhole
  • Splices rapidly with mass fusion splices yet allows fast single fiber splicing with easy to separate ribbon construction
  • Simplifies and speeds multifiber connector terminations
  • Vertical Backbone rated for riser shaft applications for ≥48F
  • Available in single-mode and multimode OM4 optical fiber


R-Pack Rollable Ribbon LSZH Dual Rated Backbone Cable

Product Description

When you need a compact, high density cabling solution for the Data Center, Central Office or other high fiber count, high-bandwidth application look to the R-Pack Rollable Ribbon (RR) LSZH Dual Rated Backbone Cable. The R-Pack RR Backbone Cable features 250 micron (µm) optical fibers in a unique 12 fiber rollable ribbon structure. The rollable ribbons open into preorganized ribbon that helps to speed installations via splicing and aids termination work by reduced fiber-crossovers.

The construction includes both water blocking features and UV stable jacket materials allowing the cable to be used in outdoor environments when needed simplifying routes and bypassing indoor splice points.

Why the R-Pack RR LSZH Dual Rated Backbone Cable?

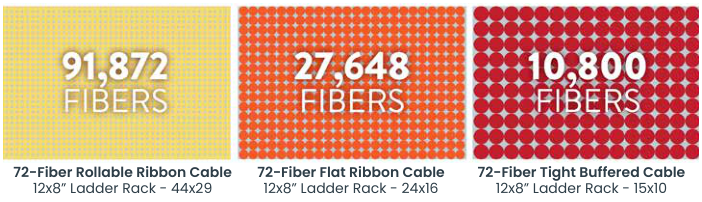

The R-Pack Backbone Cable features rollable ribbons, the newest optical fiber technology from Lightera, which allows it to offer twice the fiber density of traditional flat ribbon and tight buffered premises cables. This very compact, robust and fiber-dense cable design dramatically improves fiber routing and space conservation in congested pathways.

These modern ribbons offer rapid mass fusion benefits like traditional ribbons while providing the routing flexibility of loose fibers. The rollable design facilitates efficient, cost-effective mass fusion splicing while also allowing for easy individual fiber breakout and rapid multifiber terminations and installations.

With its versatile design and excellent performance, the R-Pack RR LSZH Dual Rated Backbone Cable is an ideal choice for use in Data Centers and Central Offices for bay to vault splice points and inter-bay pre-terminated assemblies. The cable can also be used for inter-building connectivity in Fiber to-the-Business (FTTB) applications.


R-Pack Rollable Ribbon LSZH Dual Rated Backbone Cable

Specifications

Specifications
Description RB58 RB62 RB66 RB72 RB78 RB92
Fiber Count 12 or 24 36 48 72 96 144
Outer Diameter – in. (mm) 0.23 (5.8) 0.24 (6.2) 0.26 (6.6) 0.28 (7.2) 0.31 (7.8) 0.36 (9.2)
RR Count 1 or 2 3 4 6 8 12
Weight – lb/kft (kg/km) 23.2 (34.6) 27.3 (40.6) 30.1 (44.9) 35.8 (53.3) 42.6 (63.4) 60.8 (90.6)
Compressive Load 10 N/mm
Tensile Rating – lbf (N) 150 (660) 300 (1320)
Fire Test CPR Cca- s1a, d1, a1
DoP Lookup: https://sales.nar.lightera.com/cpr RB58-012-A-D
RB58-024-A-D
RB62-036-A-D RB66-048-A-D RB72-072-A-D RB78-096-A-D RB92-144-A-D
Fire Test UL UL 1666 (OFNR) and FT-4
Handling Temperature
Installation: -30 °C to +60 °C (-22 °F to 140 °F)
Operation: -40 °C to +70 °C (-40 °F to 158 °F)
Storage and Shipping: -40 °C to +70 °C (-40 °F to 158 °F)
Performance Standard The R-Pack Rollable Ribbon LSZH Dual Rated Backbone Cable tested to Telcordia GR-409 Vertical Backbone Mechanical and ICEA-S-104-696 Environmental Tests

Fiber Type²

Fiber Type²
Single-Mode
Code Single-Mode Descriptor Grade 1310 nm (dB/km) 1550 nm (dB/km) MCA (Z)
W
AllWave FLEX+ ZWP Bend-Optimized Optical Fiber

G.657.A2 0.4 0.3 4
Multimode
Code Multimode Descriptor Grade 1310 nm (dB/km) 1550 nm (dB/km) MCA (Z)
5
LaserWave FLEX 550 Optical Fiber

OM4 3.5 1.5 G
5
LaserWave Dual-Band Optical Fiber

OM4+ 3.5 1.5 G
4
LaserWave Wideband Optical Fiber

OM5 3.5 1.5 G

R-Pack RR LSZH Dual Rated Backbone Cable Ordering Information

R-Pack RR LSZH Dual Rated Backbone Cable Ordering Information
Example
RB58-024A-WDY-4-12-250¹
Part Number
RBNN-NNNV-WXY-Z-UU-DDD
RB
R-Pack LSZH Dual Rated Backbone Cable
NN
Cable Size
58 = 5.8 mm
62 = 6.2 mm
66 = 6.6 mm
72 = 7.2 mm
78 = 7.8 mm
92 = 9.2 mm
NNN
Fiber Count
012, 024, 036, 048, 072, 096, 144
V
Version (See Chart)
W
Fiber Type (See Chart)
X
Jacket Material (Flame Retardant)
D = Dual Rated (OFNR and CPR)
Y
Jacket Color
K = Black
Y = Yellow
A = Aqua
L = Lime
Z
Maximum Cable Attenuation (See Chart)
UU
Fiber Groupings or Ribbon Type = 08, 12 or 16
DDD
Fiber Outer Diameter = 250 µm
Note
* Other colors available upon customer request.
¹ Part Number shown is for an R-Pack Rollable Ribbon Backbone Cable with 24 AllWave FLEX+ ZWP Bend-Optimized Single-Mode Fibers and standard cable print. Lightera R-PACK™ ALLWAVE® FLEX+ ZWP BIF G.657.A2 OPTICAL CABLE -C- RB58-024A-WDY-4-12-250 9/125 OFNG-FT4-ST1 c (UL) OFNR-ST1 LSZH CPR {Lot No} {LENGTH IN FEET}

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.

Trademark Notice and Disclaimer

Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
