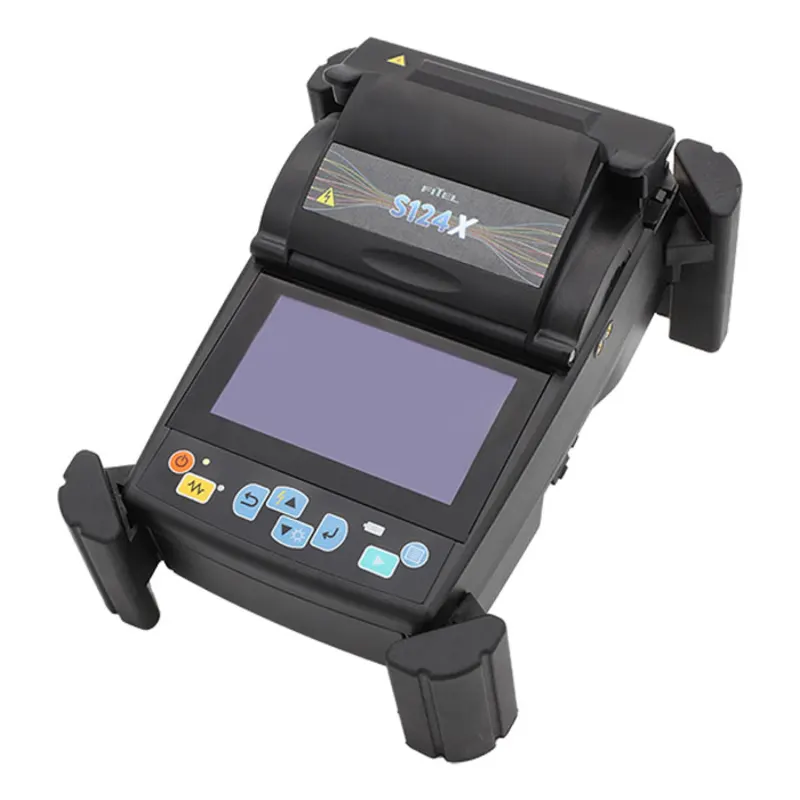

Designed with end users in mind, the FITEL S124X Fusion Splicer delivers rapid splicing/heating with reliable and consistent results. This fusion splicer is specially designed for the use of hyper-scale ribbon cable, and is an excellent choice for a variety of deployments including Data Centers, Metro, Backbone and Long-Haul applications.
A broad range of new features that enhance communication, ease of use, portability and field durability have been combined together to make the S124X Fusion Splicer one of the most powerful and user-friendly fusion splicing machines available today.
Designed with end users in mind, the FITEL S124X Fusion Splicer delivers rapid splicing/heating with reliable and consistent results. This fusion splicer is specially designed for the use of hyper-scale ribbon cable, and is an excellent choice for a variety of deployments including Data Centers, Metro, Backbone and Long-Haul applications.
A broad range of new features that enhance communication, ease of use, portability and field durability have been combined together to make the S124X Fusion Splicer one of the most powerful and user-friendly fusion splicing machines available today.

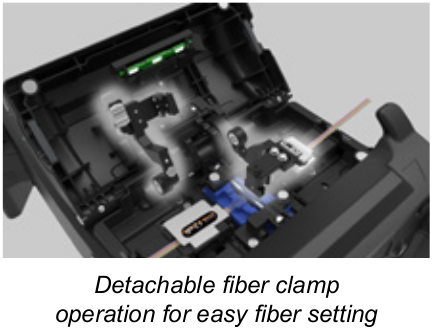

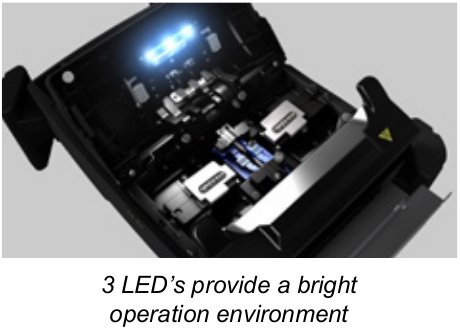

The powerful FITEL S124X Hand-Held Ribbon Fusion Splicer delivers fast and reliable optical splicing for 200 µm 16-fiber pitched ribbons even under rigorous environmental conditions. The S124X combines multiple functions into one machine, offering a wider range of capabilities that unites innovative technology, cost savings and opens the door to an entirely new range of applications.
Designed with end users in mind, the FITEL S124X Fusion Splicer delivers rapid splicing/heating with reliable and consistent results. This fusion splicer is specially designed for the use of hyper-scale ribbon cable, and is an excellent choice for a variety of deployments including Data Centers, Metro, Backbone and Long-Haul applications.
A broad range of new features that enhance communication, ease of use, portability and field durability have been combined together to make the S124X Fusion Splicer one of the most powerful and user-friendly fusion splicing machines available today.
| Specifications | ||||
|---|---|---|---|---|
| Applicable Fibers*¹ | SM (ITU-T G.652 / G.657A1 / G.657A2), MM (ITU-T G.651), DS (ITU-T G.653) NZD (ITU-T G.655), UBIF (ITU-T G.657B3) | |||
| Fiber Count | 2, 4, 6, 8, 12, 16 | |||
| Cladding Diameter | 125 µm | |||
| Fiber Coating Diameter | Single fiber: 200 µm, 250 µm, 900 µm Ribbon fiber: 200 µm, 250 µm, 200-250 µm pitch transition (with holders) |
|||
| Fiber Cleaving Length | 10mm | |||
| Average Splice Loss*² | SM: 0.05dB MM: 0.03dB DS: 0.08dB NZD: 0.08dB BIF: 0.05dB | |||
| Typical Splice Time | 16-fiber ribbon: 23sec. 12-fiber ribbon: 15sec. Single fiber: 13sec. | |||
| Typical Heating Time | 16-fiber ribbon: 28sec. 12-fiber ribbon: 28sec. Single fiber: 13sec. | |||
| Splice Program | Max. 300 | |||
| Heat Program | Max. 100 | |||
| Applicable Protection Sleeve Length | 40mm / 60mm | |||
| Tension Test | 1.96N | |||
| Discharge Compensation Function | Automatic correction according to temperature and atmospheric pressure | |||
| Optical Fiber Observation Method | Two-way observation from X and Y axes | |||

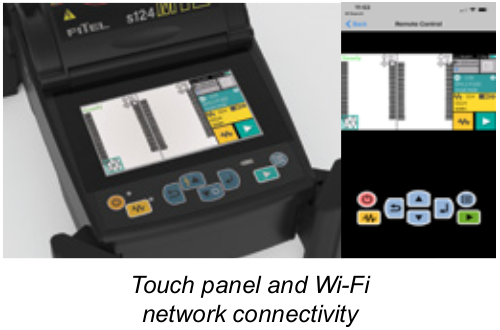

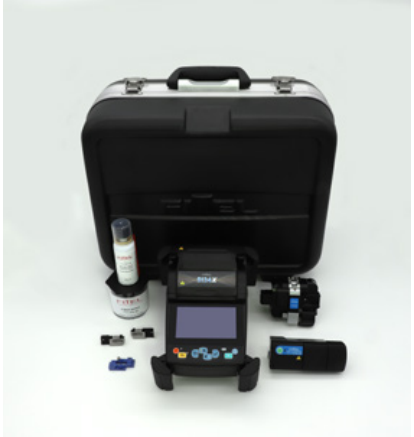

| Monitor | 4.3 inch wide LCD monitor with touch screen | |||
| Magnification | 24X magnification | |||
| Splice Result Storage / Image Capture Capacity | Last 10,000 splices / Last 100 images to be automatically captured | |||
| Dimensions | 139W X 209D X 114H mm (not including shock absorber) 179W X 246D X 131H mm (including shock absorber) |
|||
| Weight | 1.8kg (with battery) | |||
| Data Output | USB ver.2 mini B X 1 port, Standard Ax 1 port | |||
| Power Source | AC : 100-240V (50/60Hz) DC : 11-24V | |||
| Battery Capacity*³ | 200 splice and heating cycles | |||
| Electrode Life*⁴ | 1,200 splice | |||
| Operating Condition | Altitude: -2,000m(1-12-fibers), 1,000m(16-fibers) Wind protection: 15m/s. Operating temperature: -10 to +50 °C (non-condensing) |
|||
| Storage Condition | -40 to +60 °C (non-condensing) | |||
| Note | *1 Corresponding to optical fiber in compliance with ITU-T recommendation. *2 This numerical number is the one when measured for the purpose to show the fusion splice characteristics in the testing method of IEC 61073-1, it is not the one to guarantee the splicing loss. *3 Number of times that the fusion splicing of the fiber and the heat reinforcement can be performed continuously at a rate of once a 90seconds at the room temperature (20°C) condition when using a new 100% charged battery. The number of times you can use depends on the state of the battery and usage. *4 The number of times will vary depending on the state of the electrode rod and the operating environment. |
|||
| Drop Impact Resistance Performance and Environmental Resistance Performance | |
|---|---|
| Drop impact | Vertical drop test (5 sides excluding the top side) is conducted from a height of 76 cm and the normal operation is confirmed. |
| Impact protection | The normal operation is confirmed after dropping a 500 grams weight of IK 07 grade from height of 40 cm onto the equipment. |
| Dust proof | The normal operation is confirmed after putting the equipment in a device containing dust of 25 μm or less for 8hours. |
| Drip proof | The normal operation is confirmed after exposing water droplet of IPX 2 grade with 3mm/min to 4 sides for 2.5 min or more tilted by 15 degrees. |
| Standard Package | |||
|---|---|---|---|
| Item | Model No. | S124X-3-0 (Qty) | S124X-3-1 (Qty) |
| S124X main body | S124X X-A-0001 | 1 | 1 |

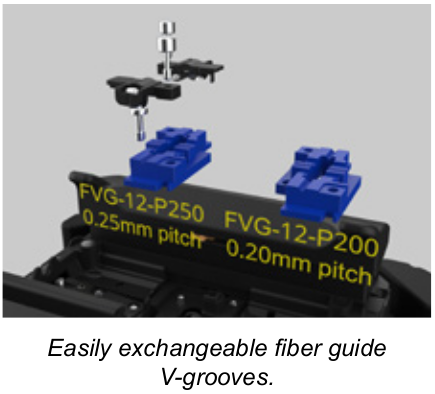

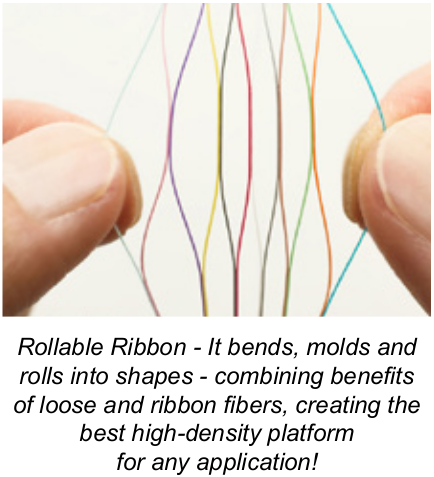

| 0.25 mm pitch fiber guide v-groove | FVG-12-P250 | 1 | 1 |
| Hard carrying case | HCC-11 | 1 | 1 |
| Battery pack | S947 | 1 | 1 |
| Spare electrode | ELR-01 | 1 | 1 |
| AC adapter | S979 | 1 | 1 |
| AC power cord | – | 1 | 1 |
| Cooling tray | CTX-03 | 1 | 1 |
| Fiber reformer (4 fiber) | FRF-01 | 1 | 1 |
| Fiber reformer (8/12 fiber) | FRF-02 | 1 | 1 |
| Cleaning blush | VGC-01 | 1 | 1 |
| Electrode sharpener | D5111 | 1 | 1 |
| Tool case | TCC-01 | 1 | 1 |
| Strap plate | SPL-01 | 1 | 1 |
| LCD anti-reflective sheet | ARS-01 | 1 | 1 |
| Quick Reference guide | FTS-B559 | 1 | 1 |
| Rubber foot | RBC-01 | ||
| Instruction manual | UMC-03 | 1 | 1 |
| Wi-Fi dongle | WFD-01 | 0 | 1 |
| Accessories | |
|---|---|
| Item | Model No. |
| Thermal Stripper | S218R-200 Ver 2 |
| Ribbon Cleaver | S326R Ver 2 |
| Fiber Wipes | FW-01 |
| Fiber Preparation Fluid | FPF-01 |
| Rollable Ribbon Protection Sleeve | S927R |
