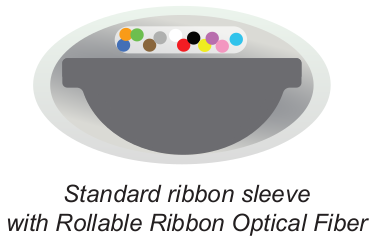

The FITEL S927R is newly developed protection sleeve for reinforcing Rollable Ribbon
spliced optical fibers, particularly it is tailored for reinforcing Rollable Ribbon type spliced
optical fibers.
This patented design prevents fibers from crossing over or stacking during the heating
process resulting in increased efficiency and reduced reburns.
The FITEL S927R is newly developed protection sleeve for reinforcing Rollable Ribbon
spliced optical fibers, particularly it is tailored for reinforcing Rollable Ribbon type spliced
optical fibers.
This patented design prevents fibers from crossing over or stacking during the heating
process resulting in increased efficiency and reduced reburns.
The FITEL S927R is newly developed protection sleeve for reinforcing Rollable Ribbon
spliced optical fibers, particularly it is tailored for reinforcing Rollable Ribbon type spliced
optical fibers.
This patented design prevents fibers from crossing over or stacking during the heating
process resulting in increased efficiency and reduced reburns.
| Protection Sleeve | |
|---|---|
| Model No. | S927R |
| Dimension before shrinking | |
| Length (a) | 40 ± 1 mm |
| Major Axis (b) | 5.8 mm |
| Minor Axis (c) | 5.3 mm |

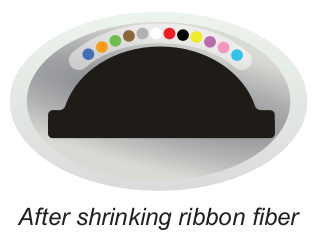

| Dimension after shrinking* |
|
| Length (d) | 40 ± 1 mm |
| Major Axis (e) | 5.0 mm |
| Minor Axis (f) | 3.6 mm |
| Applicable Fiber |
|

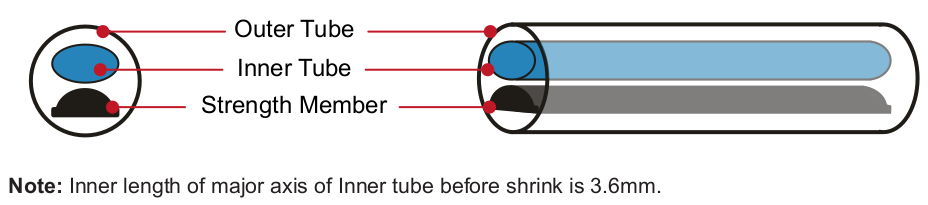

| Material Outer Tube | Polyolefin |
| Material Inter Tube | Ethylene vinyl acetate |
| Material Strength Member | Alumina ceramic |
| Note | * This data is the result of Lightera testing using the S927R and 12-fiber Rollable Ribbon. Lightera cannot guarantee the dimensions after shrinking. |
