Code -
06924-01

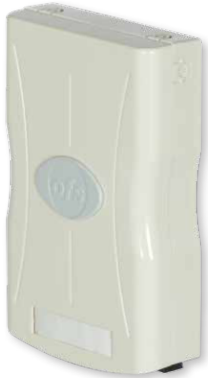

SlimBox® 4-Fiber Rosette Module
The SlimBox 4-Fiber Rosette Module is used as a distribution or termination point for optical fiber in an indoor environment
The SlimBox 4-Fiber Rosette Module is used as a distribution or termination point for optical fiber in an indoor environment
Features
- Allows termination of an optical cable using direct connectorization or splice (fusion or mechanical) to optical extensions (pig tails) of 2 optical fibers (without the tray)
- Optional splice tray with reduced dimensions design to accomodate up to four G.657A (Bend-Insensitive) fibers or optical splitters
- Up to 02 optical adpaters (SC type) can be placed in the module
- Four cable access: 02 in the bottom/ 01 superior/ 01 at the right side and 01 in the back (from the wall)
Benefits
- Compatible to 4×2” boxes
- Reduced dimensions
- Discrete
- Easy to handle – articulated parts; removable piece to fix the cable; internal fiber guides
- Can be installed in any vertical plane surface
- Formed in plastic with high mechanical resistence and efficient design
- Large space for fiber slack inside the product
- Allows to accommodate splice protectors (40 mm), or mechanical splices
- Identification label in the front cover
Product Description
The SlimBox 4-Fiber Rosette Module is used as a distribution or termination point for optical fiber in an indoor environment
Application Environments
- Installation: Indoor
- Operation: Not Aggressive
Product Characteristics
| Product Characteristics | |
|---|---|
| Capacity |
|
| Accessories |
|
| Security | Hidden screw to close the front panel |
| Warranty | 12 months |

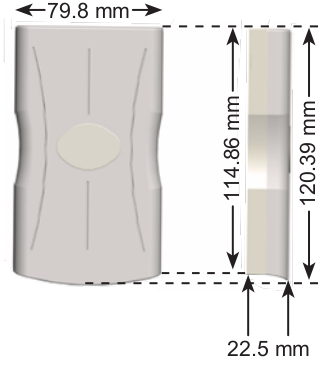

Physical Characteristics
| Physical Characteristics | |
|---|---|
| Height | 4.52 in. (114.9 mm) |
| Width | 3.14 in. (79.8 mm) |
| Depth | 0.89 in. (22.5 mm) |
| Weight | 0.5 lb (.23 kg) |
| Material | ABS Plastic |
| Color | Beige (RAL 1015) |
| Standards | EIA/TIA-568.B, ISO 11469, RoHS, UL 94 V0 |
Ordering Information - SlimBox 2-Fiber Rosette Module
| Ordering Information – SlimBox 2-Fiber Rosette Module | |
|---|---|
| Description | Part Number |
| SlimBox-V, Indoor Rosette Module-2 Fiber | 301039210 |
| Slimbox-V, Rosette Splice Tray | TBD |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
