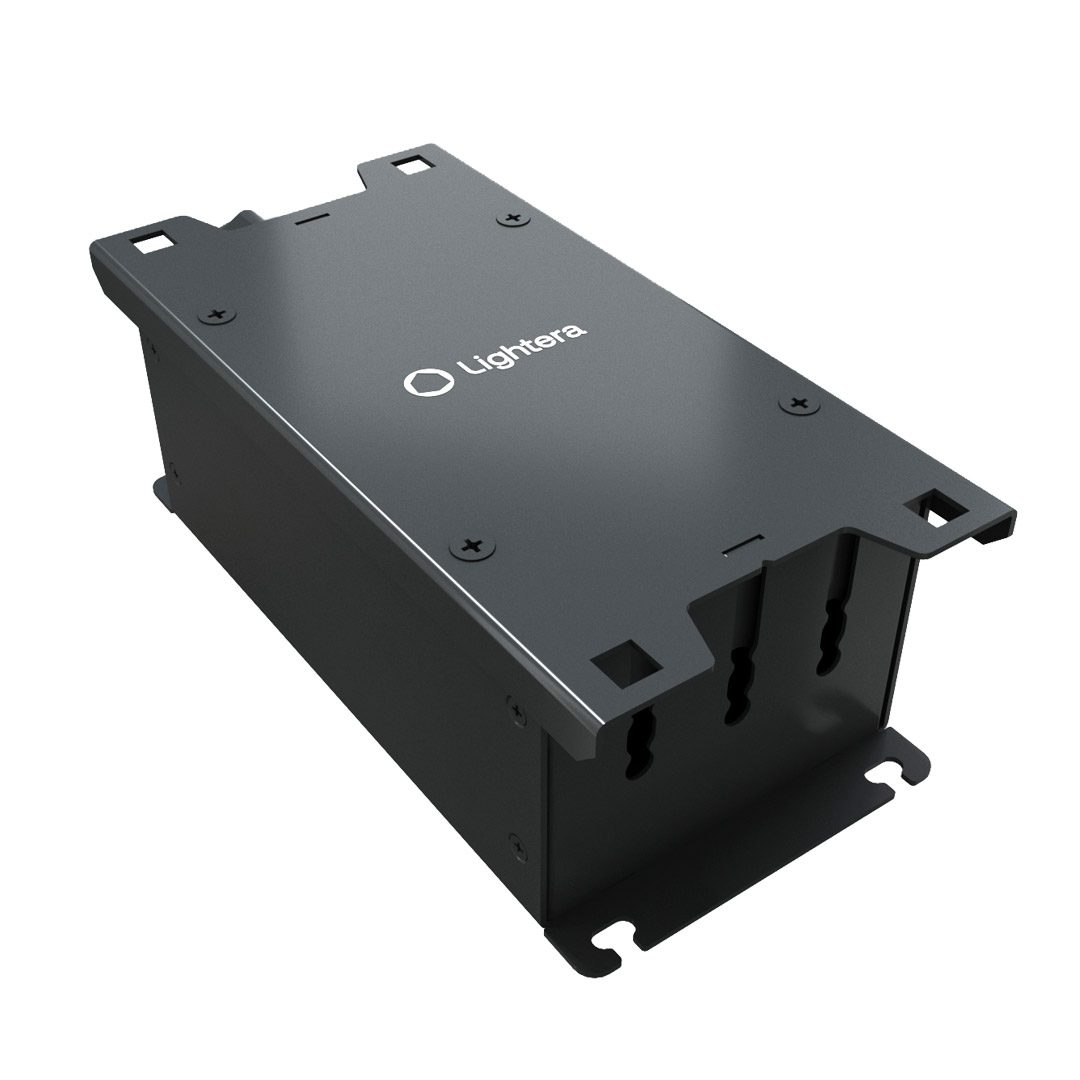

The TARS Cable Transition Box is a robust and compact solution designed to manage the transition and distribution of high-density optical cables in telecommunications networks. Ideal for applications requiring superior protection, efficient organization, and easy accessibility for optical cables with up to 1,728 fibers, facilitating connection to Optical Distributors Frames (ODFs).
The TARS Cable Transition Box is a robust and compact solution designed to manage the transition and distribution of high-density optical cables in telecommunications networks. Ideal for applications requiring superior protection, efficient organization, and easy accessibility for optical cables with up to 1,728 fibers, facilitating connection to Optical Distributors Frames (ODFs).
The TARS Transition Box module is a robust and compact solution designed to manage the transition and distribution of high-density optical cables in data centers. Ideal for applications requiring superior protection, efficient organization, and easy accessibility for optical cables with up to 1,728 fibers, facilitating connection to Optical Distributors Frames (ODFs).
Indoor
Non aggressive
Epoxy paint finish with high scratch resistance in black color.
Resistant and corrosion-protected product to the conditions specified for indoor use (ANSI/TIA-569).
Supplied with screws for fixing to the TARS cabinet frame and cable clamps.
The Solution supports configurations of 1728, 864 and 288 fibers.
It allows for the stacking and assembly of boxes on top of each other, optimizing space usage.
It provides greater protection and security for the transition of different types of optic cables, to ensureproper fixation and anchorage in addition to ellevated mechanical strenght to protect the opening and tubes separation.
Lightera's brand on the external front part.
214 mm
74 mm
54 mm
Black RAL 9005
Finished in scratchproof high resistant black epoxy
Inputs: 1(one) position for 1(one) cable up to 25 mm in diameter.
Outputs: Up to 12 (twelve) positions for 12 (twelve) corrugated tubes up to 1/4" in diameter.
Carbon Steel
EF – Entrance Facilities Room
TR – Telecommunications Rooms
MMR´s – Meet-Me-Rooms
MDA – Main Distribution Areas
IDA´s – Intermediate Distribution Areas
HDA´s – Horizontal Distribution Areas
EDA´s – Equipment Distribution Areas
Rollable Ribbon Optical Cables
Flat Ribbon Optical Cables
Loose Tube Optical Cables
TARS Cabinets
OCS 42 Basic Module
Racks ITMAX
Cardboard Box
1,5
1
Installation Manual
Supplied with M5 screws and cage nuts for fixing to the TARS cabinet frame and cable clamps.
40m of corrugated tubes up to 1/4" in diameter.
12 months
25 Years Extended Product Warranty – According to the Lightera Extended Warranty Program.
This product reaffirms our commitment to global sustainability, in full compliance with the European RoHS and REACH Directives. This ensures the restriction of hazardous substances and the responsible management of all chemicals used. We guarantee a safer product for you and with a lower environmental impact. A conscious choice for a greener future.
Standard
1) Trust Lightera. Our standards of excellence are internationally recognized. With ISO 9001 certifications for the Quality Management System and ISO 14001 for the Environmental Management System, we ensure a safer and more efficient future for you, your company, and the planet.
2) Mounting and Installation details, please consult Installation Manual of Product. Available on Lightera's website.
3) Application Details,please consult TARS Solution – Application Guide. Available on Lightera's website.
4) TARS is a LGHTERA's brand currently in the registration process, Unauthorized use is subjected to legal action for intellectual property violation.
5) Dislaimer of Liabilty: Lightera reserves the right to make updates to the products described in this document at any time without prior notice. This document is supplied exclusively for information purposes and is not intended to modify or add any warranty or specification of any products or services.
6) Contact Information: For more details and information about our products, please contact us at:
