- Compact size
- Supports aggregation of up to 72 units (60 units most common)
- Uses multi-fiber connector interface
- Integrated with V-Linx Cables at the factory
- Field integration of V-Linx Cables optional
Code -
06927-01

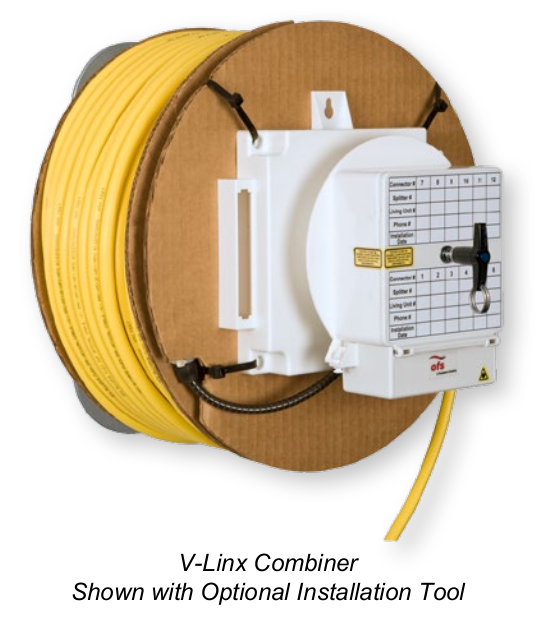

V-Linx™ Combiner
The V-Linx™ Combiner aggregates the optical paths from up to six V-Linx Terminals (up to 72 individual units). Using the same compact chassis as the V-Linx Terminal, the V-Linx Combiner is configured with preterminated AccuFlex™ PLUS Optical Ribbon Interconnect Cable assemblies in the factory for quick set up and installation in the field (supporting 300 lbf (1335 N) of axial load). The cable provides excellent transmission performance, flexibility, and connectivity in a very small package (.33 in. (8.4 mm) diameter).

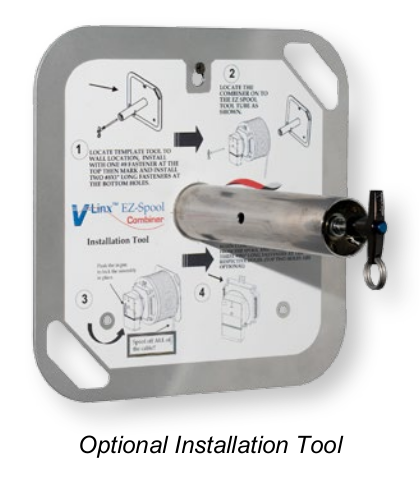

The V-Linx Combiner provides all the necessary assistance to allow a single person to install the entire cable between floors. It uses multifiber push-on (MPO) connector technology which enables a very compact aggregation point from multiple V-Linx Terminals.
Uniquely designed for dense, multifloor units, the V-Linx Spool and Play Solution can significantly reduce the manpower and time needed to install the network backbone with short length spool-and-play technology in MDUs. The V-Linx Spool and Play Solution comprises 4 major components:
- V-Linx Fiber Distribution Hub (FDH)
- V-Linx Combiner
- V-Linx Terminal
- EZ-Bend® Drop Assemblies
The V-Linx™ Combiner aggregates the optical paths from up to six V-Linx Terminals (up to 72 individual units). Using the same compact chassis as the V-Linx Terminal, the V-Linx Combiner is configured with preterminated AccuFlex™ PLUS Optical Ribbon Interconnect Cable assemblies in the factory for quick set up and installation in the field (supporting 300 lbf (1335 N) of axial load). The cable provides excellent transmission performance, flexibility, and connectivity in a very small package (.33 in. (8.4 mm) diameter).
The V-Linx Combiner provides all the necessary assistance to allow a single person to install the entire cable between floors. It uses multifiber push-on (MPO) connector technology which enables a very compact aggregation point from multiple V-Linx Terminals.
Uniquely designed for dense, multifloor units, the V-Linx Spool and Play Solution can significantly reduce the manpower and time needed to install the network backbone with short length spool-and-play technology in MDUs. The V-Linx Spool and Play Solution comprises 4 major components:
- V-Linx Fiber Distribution Hub (FDH)
- V-Linx Combiner
- V-Linx Terminal
- EZ-Bend® Drop Assemblies
Features And Benefits
Product Description
The V-Linx™ Combiner aggregates the optical paths from up to six V-Linx Terminals (up to 72 individual units). Using the same compact chassis as the V-Linx Terminal, the V-Linx Combiner is configured with preterminated AccuFlex™ PLUS Optical Ribbon Interconnect Cable assemblies in the factory for quick set up and installation in the field (supporting 300 lbf (1335 N) of axial load). The cable provides excellent transmission performance, flexibility, and connectivity in a very small package (.33 in. (8.4 mm) diameter).
The V-Linx Combiner provides all the necessary assistance to allow a single person to install the entire cable between floors. It uses multifiber push-on (MPO) connector technology which enables a very compact aggregation point from multiple V-Linx Terminals.
Uniquely designed for dense, multifloor units, the V-Linx Spool and Play Solution can significantly reduce the manpower and time needed to install the network backbone with short length spool-and-play technology in MDUs. The V-Linx Spool and Play Solution comprises 4 major components:
- V-Linx Fiber Distribution Hub (FDH)
- V-Linx Combiner
- V-Linx Terminal
- EZ-Bend® Drop Assemblies
V-Linx Cable
Capable of serving up to 72 units, the V-Linx Cable is configured with up to six, 12-fiber ribbon cables, and connects the Fiber Distribution Hub (FDH) to the V-Linx Combiner. The V-Linx Cable is a riser rated AccuFlex PLUS Optical Ribbon Interconnect Cable (supporting 300 lbf of axial load) which provides excellent transmission performance, flexibility and connectivity in a very small package (8.4 mm diameter).
The V-Linx Cable (pictured on back) can be configured at the factory with MPO connectors on one or both ends of the cable assembly.
Specifications
| Specifications | |
|---|---|

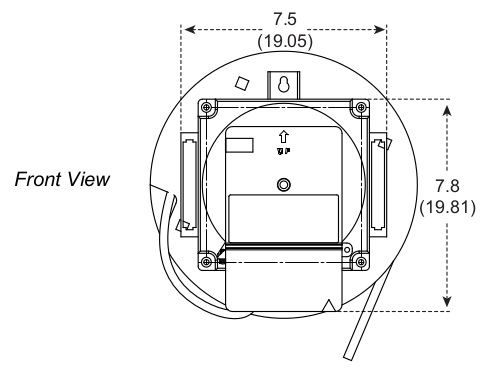

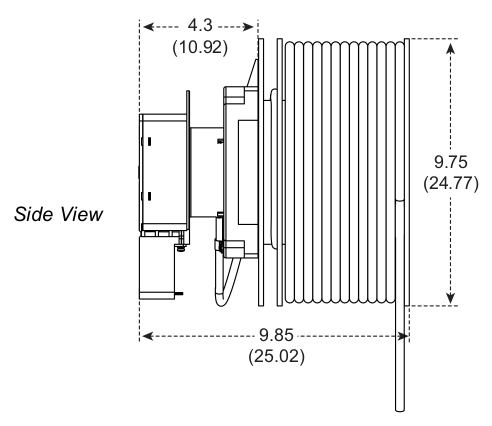

| Size | 7.5" X 7.8"* X 4.5" (19 cm X 22.2 cm X 11.4 cm) |
| Weight | 8.4 lb (3.7 kg) |
| Shipping Size | 9" X 5" X 8" (22.8 cm X 20.2 cm X 12.7 cm) |
| Shipping Weight | 8.4 lb (3.7 kg) |
| Master Pack Count | 1 per box |
| Pallet Count (# Master, Total #) | 36 per pallet |
| Number of Terminations (common) | 5 MPO connectors (12 fibers per connector) |
| Wall Mountable | All surfaces |
| Color | Central Office White |
| Designed for: | |
| Fire Rating of Plastics | UL-94, rated V-0 |
| In Use Temperature Rating | 23 °F to 122 °F (-5 °C to 50 °C) |
| Storage Temperature Rating | -4 °F to 158 °F (-20 °C to +70 °C) |
| Water Rating (nema/ip Ratings) | NEMA 12/IP 52 |
| Note | *8.75" with keyhole tab |
Optical Performance
| Optical Performance | |
|---|---|
| Maximum Insertion Loss (max) | 1.25 dB |
| Return Loss | -55 dB nominal |
Note
All dimensions given in inches and centimeters (in parenthesis)
