V-Pin
Part no -
BP05226-01
V-Pin Connectors (Blue) for 400/430 µm HCS®
The Lightera V-System® family of HCS 400 µm fibers, cables and connectors provide a complete optical link solution for use with Avago Versatile Link 650 nm transceivers.

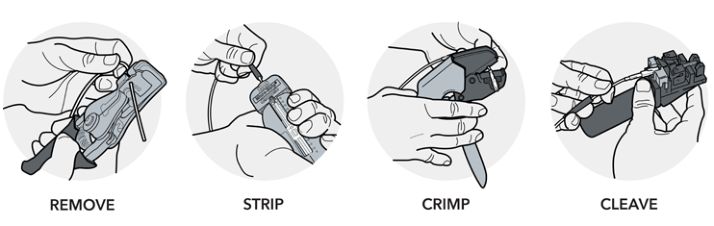

Using the advanced optomechanical properties of HCS fiber, the Lightera V-System can be connectorized in less than two minutes using a simple crimp and cleave process. No epoxy, no curing, no polishing steps. Quick, easy, reliable.
The Lightera V-System® family of HCS 400 µm fibers, cables and connectors provide a complete optical link solution for use with Avago Versatile Link 650 nm transceivers.
Using the advanced optomechanical properties of HCS fiber, the Lightera V-System can be connectorized in less than two minutes using a simple crimp and cleave process. No epoxy, no curing, no polishing steps. Quick, easy, reliable.
Connectors and Mating Adapters
Overview
The Lightera V-System® family of HCS 400 µm fibers, cables and connectors provide a complete optical link solution for use with Avago Versatile Link 650 nm transceivers.
Using the advanced optomechanical properties of HCS fiber, the Lightera V-System can be connectorized in less than two minutes using a simple crimp and cleave process. No epoxy, no curing, no polishing steps. Quick, easy, reliable.
Typical Applications
- Avionics Communications
- Factory Automation Systems
- Laser Power Delivery
- Near-IR Spectroscopy
- Wind Power Network Controllers
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | V-Pin Connectors (Blue) for 400/430 µm HCS |
| Specifications | |
| For Use with Optical Fiber Cable Types | Step-Index 400/430 µm HCS V-System® Cables |
| Overall Length | 1.18 in. (30 mm) |
| Connector Performance Data | |
| Insertion Loss @ 650 nm | 2.0 dB |
| Operating Temperature | -40 to +80 ºC |
| Cable Crimp Retention | 10 lb. (44.4 N) |
| Cable Design | |
| Jacket Diameter | 2.2 mm |
| Compatibility | |
| Compatible Field Termination Kit | DT03732-34 Crimp & Cleave V-Pin 400 µm Term Kit |
| Compatible Insertion Loss Kit | P10188-02 V-Pin Insertion Loss Test Kit |
| Accessories | |
| V-System Duplex Latch Set | BP04703 |
| V-Pin Mating Adapter | AP04707 |
| Assemblies | All V-Pin connectors can be provided on respective HCS cable constructions as factory terminated and fully tested assemblies. Please call Technical Support for information at 1-888-438-9936. |
| Order by Part Number | BP05226-01 |
