InvisiLight Facade Solution Brochure
Applying our award-winning fiber to the exterior of your building.
Solving an old pain point of visible exterior cabling or raceways, with a new, virtually invisible approach to placing fiber on and into buildings
Simplify your fiber deployment.
Vertical and Horizontal Applications
InvisiLight Facade Cord: M-Pack Indoor/Outdoor Cable
Allows direct routing from building exteriors into living areas Compact and lightweight Multiple Dwelling Unit (MDU) Drop Cable
Features Lightera award-winning EZ Bend® Optical Fiber, better than ITU G.657.B3, 2.5 mm bend radius
White or black outer jacket to blend into building’s existing exterior
3.0 – 3.8 mm cable
Easily secured with Sharktooth Anchors
May be stapled or bent around sharp corners
Available pre-connectorized on the network facing end with SC, LC, or MTP connectors
Breezeways and Horizontal Applications: Multiple Living Units per Floor (Apartments/Hotels)
Outdoor Compact POE Module
Compact dimensions
Discreet appearance
UV-resistant material
Easy to secure on the wall with two screws
Internal fiber guides for easy installation
Can be installed on any vertical plane surface
Plastic body offers high mechanical resistance and an efficient design
Accommodates splice protectors (40 mm)
Vertical Applications: 1 Living Unit per Floor (Townhouses/Condominiums)

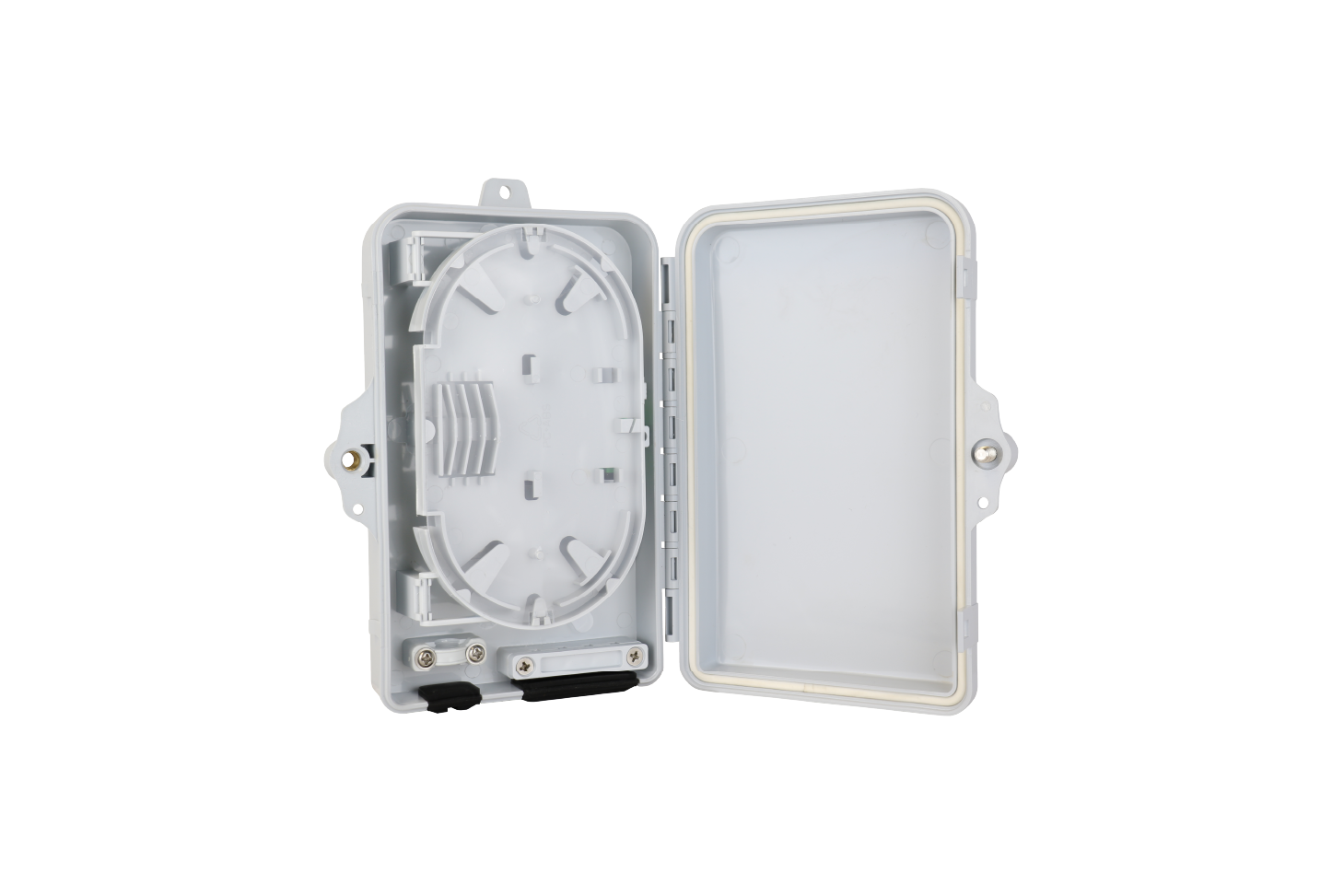

SlimBox 2- or 4-Fiber Indoor/Outdoor Enclosure
Protection level up to IP65
Splicing and adapter connections inside the module
Can be wall mounted or pole mounted
Available as a pre-terminated product with the InvisiLight Facade Cords
The SlimBox 2- and 4-Fiber Indoor/Outdoor Enclosures are an excellent choice as an external demarcation closure, featuring dual functionality as either a splice or connector housing.
It is compact and inconspicuous enough to satisfy property owners, while protecting the valuable fusion splices and/or connectors inside.
Brochure
InvisiLight Facade Solution: Invisible fiber. Visible results.
