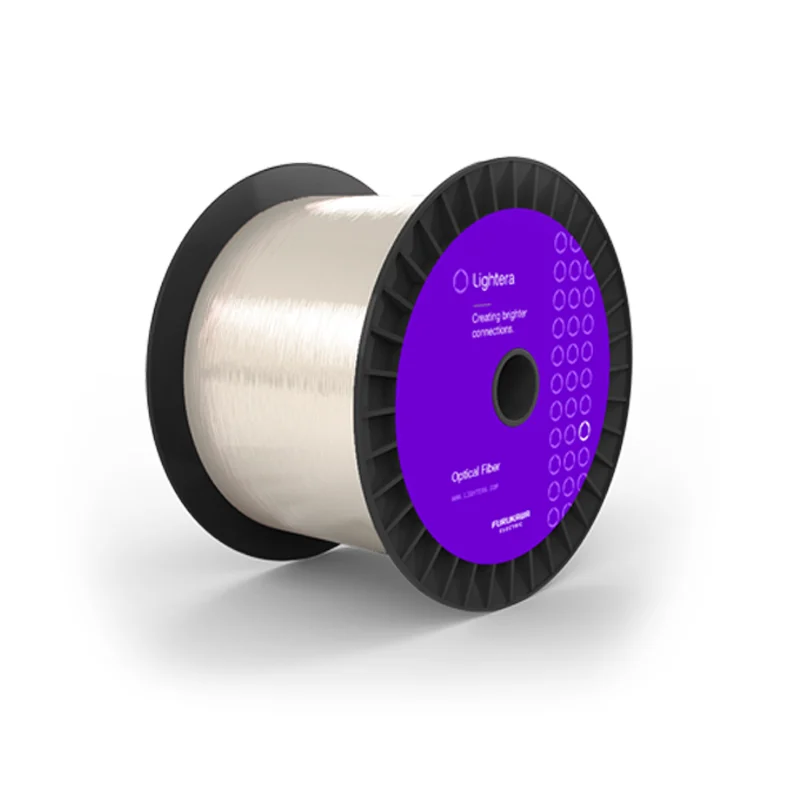

100/140 High-Temperature Graded-Index Optical Fiber
This graded-index 100/140 μm multimode fiber has a 100 μm core diameter and a 140 μm cladding diameter. The fiber is designed for use at 850 nm and/or 1300 nm. It has a 170 μm polyimide coating.
The large core diameter and high Numerical Aperture make this fiber suitable for use in applications where high coupling efficiency to a light source is necessary and the fiber will be exposed to high temperatures.
This graded-index 100/140 μm multimode fiber has a 100 μm core diameter and a 140 μm cladding diameter. The fiber is designed for use at 850 nm and/or 1300 nm. It has a 170 μm polyimide coating.
The large core diameter and high Numerical Aperture make this fiber suitable for use in applications where high coupling efficiency to a light source is necessary and the fiber will be exposed to high temperatures.
Cladding Diameter
Coating Diameter
< 200 µm
Coating Type
Polyimide [PYROCOAT]
Core Diameter
< 200
Fiber Type
Graded-Index Multimode
Numerical Aperture
0.26 – 0.30
Operating Temperature
High-Temp
Product Overview
This graded-index 100/140 μm multimode fiber has a 100 μm core diameter and a 140 μm cladding diameter. The fiber is designed for use at 850 nm and/or 1300 nm. It has a 170 μm polyimide coating.
The large core diameter and high Numerical Aperture make this fiber suitable for use in applications where high coupling efficiency to a light source is necessary and the fiber will be exposed to high temperatures.
Typical Applications
- High Temperature
- Harsh Environment
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | 100/140 High-Temperature Optical Fiber |
| Physical Characteristics | |
| Coating Material | PYROCOAT® polyimide |
| Core Diameter | 100 ± 4 µm |
| Cladding Diameter | 140 ± 3 µm |
| Coating Diameter | 170 ± 5 µm |
| Core/Clad Offset | ≤ 3 µm |
| Core Non-Circularity | ≤ 5% |
| Clad Non-Circularity | ≤ 2.0% |
| Crimp & Cleave Compatible | No |
| Optical Characteristics | |
| Type | Multimode Graded-Index |
| Numerical Aperture | 0.29 |
| Bandwidth @ 1300 nm | ≥ 100 MHz-km |
| Bandwidth @ 850 nm | ≥ 100 MHz-km |
| Attenuation @ 1300 nm | ≤ 3 dB/km |
| Attenuation @ 850 nm | ≤ 5 dB/km |
| Mechanical and Environmental | |
| Operating Temperature | -65 to +300 ºC |
| Short-Term Bend Radius | ≥ 11 mm |
| Long-Term Bend Radius | ≥ 19 mm |
| Proof Test Level | 100 kpsi (0.689 GPa) |
| Order by Part Number | BF04436 |
| Product Description Code | TCU-MC100H |
| OPTIONS | Cabling |
| NOTE | Lightera polyimide optical fibers are known to operate in environments up to 300 °C. Performance is application dependent. Contact our Technical Sales department to discuss your specific application requirements. 1-860-678-6636 |
