PowerGuide®200 SkyLight – 6 Element

All-Dielectric, Self Supporting (ADSS) Aerial Loose Tube Fiber Optic Cable Dry core design PowerGuide®200 SkyLight

All-Dielectric, Self Supporting (ADSS) Aerial Loose Tube Fiber Optic Cable Dry core design PowerGuide®200 SkyLight

Application

Application Optimized for Aerial- and Duct Installation with fiber counts up to 144 fibers

Design

  • Optical fibers
  • Gel-filled buffer tubes
  • Non-metallic central member
  • Water blocking threads
  • Non-metallic aramid strength elements
  • Ripcords
  • Outer HDPE-jacket

Benefits

  • Excellent, cost- effective option for short aerial cable spans
  • Outstanding optical performance, durability and field reliability
  • Fast, one-step installation for valuable time and cost savings
  • Small cable diameter and bend radius for easy deployment in aerial- to- underground installation
  • Easily strippable sheath for quick, convenient cable preparation

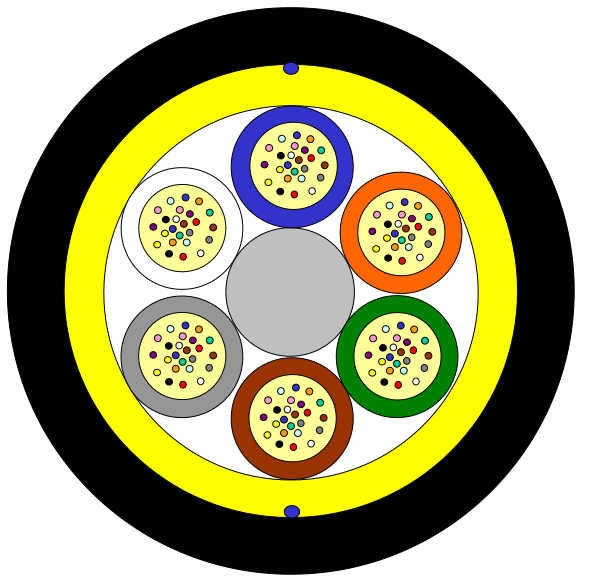

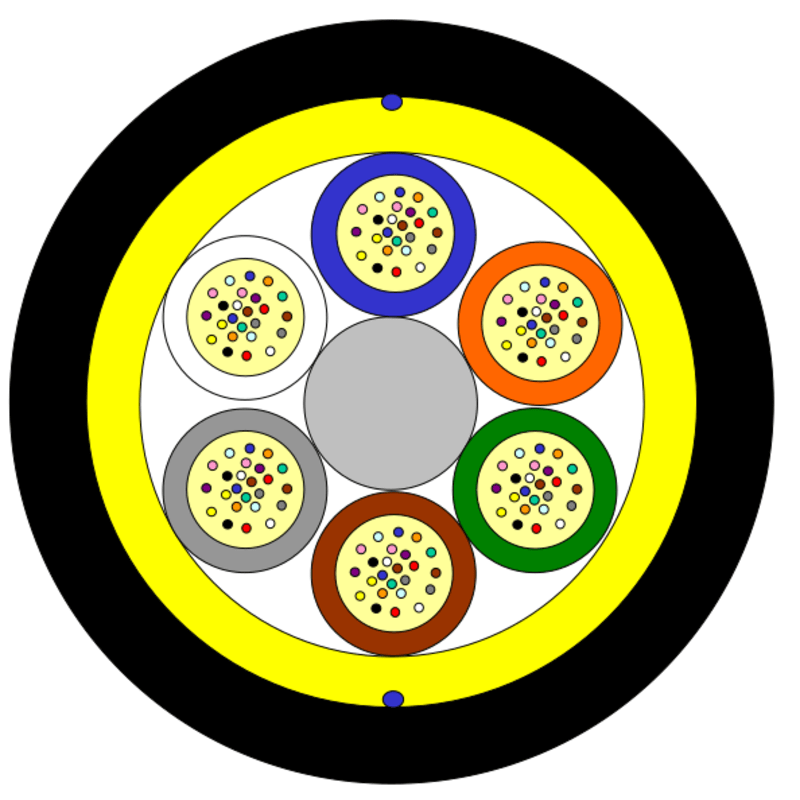

Version illustrated is the 144 Fiber 6 Element Cable



Product Specification
Fiber Count Tubes Core Design Outer Diameter [mm] Cable Weight [kg/km] AT-Code**
96 4 (24F) 1+6 (2 Fillers*) 10.4 90 IT-[][][]17UF-096-CNGA
120 5 (24F) 1+6 (1 Filler*) 10.4 90 AT-[][][]17UF-120-CNGA
144 6 (24F) 1+6 10.4 90 AT-[][][]17UF-144-CNGA
This table shows nominal diameter and weight values which may differ in shipments.
*Fillers are natural colored.
**Please refer to the LIGHTERA AT- Code. The blanks specify the fiber type.



Identification Tube Color Code
1 Blue
2 Orange
3 Green
4 Brown
5 Grey
6 White



Identification Fiber Color Code
1 Blue
2 Orange
3 Green
4 Brown
5 Grey
6 White
7 Red
8 Black
9 Yellow
10 Violet
11 Rose
12 Aqua
13 Blue*
14 Orange*
15 Green*
16 Brown*
17 Grey*
18 White*
19 Red*
20 Nature
21 Yellow*
22 Violet*
23 Rose*
24 Aqua*
Note * Black ring
Note Alternative tube and fiber color code available on request.

Sheath Marking

Lightera OPTICAL ADSS CABLE [ID] [MM/YYYY] [Handset Sign] xxxF [Meter Marking]

Alternative sheath printing available on request.

In case of order the exact sheath printing text will be clarified with the customer.



Shipping Information
Cable Length Drum Diameter Drum Width Shipping Weight (calc.) Cable + Drum
2 Km 1000 mm 780 mm 230 Kg
4 Km 1400 mm 780 mm 450 Kg
6 Km 1550 mm 1060 mm 670 Kg
8 Km 1550 mm 1060 mm 850 Kg
The shipping information are given for one-way reels. Reusable reels are available on request.



Temperatures (IEC 60794-1-22-F1)
Operation -40°C to +70°C
Installation -15°C to +60°C
Storage Shipping -40°C to +70°C



Sag and Tension Calculation AT-[][ ][ ]17UF-144-CNGA
Conditions NESC Light Loading NESC Medium Loading NESC Heavy Loading
Ice Thickness 0 mm 6.4 mm 12.7 mm
Wind Pressure 431 N/m² (95.5 km/h) 192 N/m² (63.6 km/h) 192 N/m² (63.6 km/h)
Low Temperature -1 ºC -9.4 ºC -17.8ºC
Safety Factor 0.73 N/m 2.92 N/m 4.38 N/m
Tension @ Maximum Span for 1,0 % Installation Sag
Maximum Span 150 m 100 m 60 m
MRCL (Maximum Rated Cable Load) 3500 N 3500 N 3500 N
MIT (Maximum Installation Tension) 1500 N 950 N 550 N
Installation Temperature 23 ºC 23 ºC 23 ºC
Cable Modulus 940.3 kg/mm² 940.3 kg/mm² 940.3 kg/mm²
CTE (C-1) 1.24E- 05 1.24E- 05 1.24E- 05

Dead End Assembly

FIBERLIGN® Dielectric Dead-end for ADSS, 2872001C1E1, Max. Tension: 2500 lbs. (1135 kg)

Fixed Tangent Support

FIBERLIGN® Aluminum Support for ADSS, 4450098

Suspended Support

FIBERLIGN® Aluminum Suspension for ADSS, 4450198

Slack Storage Devices

FIBERLIGN® In-Span Storage System, FIS12A

Down Lead Cushion

FIBERLIGN® Downlead Cushion for ADSS, 8003041

Vibration Dampers

FIBERLIGN Dielectric Damper for ADSS Cable, 50502272

Dead End Assembly

TELENCO® GSDE AR Helical dead-ends with armor rods Model GSDE AR 1050 (PN 7640)

Vibration Dampers

TELENCO® Vibration damper VIB Model VIB083 (PN 09139)

Suspension Support

TELENCO® DSAL Mobile suspension clamp Model DSAL1000 (PN 09567)



Pertinent Installation Information
Maximum Rated Cable Load (MRCL) 3.5 kN
Bending Performance (IEC 60794-1-21-E11) – Handling Fixed Installed No attenuation increase*, Bend radius: 140 mm
Bending Performance (IEC 60794-1-21-E11) – During Installation (under Load) No changes in attenuation before versus after load, Bend radius: 280 mm
Note No changes in attenuation means that any changes in measurement value, either positive or negative within the uncertainty of measurement shall be ignored. The total uncertainty of measurement shall be less than of equal to 0.05 dB.

Dead End Assembly

  • Used whenever a cable should not slip
  • Cable start and end points
  • Where line angles exceed 20°
  • Road, river, railroad crossings
  • Closure locations



All-Dielectric, Self Supporting (ADSS) Aerial Loose Tube Fiber Optic Cable

Tangent and Suspension Supports

  • Typically used in small line angle (
  • Provides vertical support, not designed to support cable tension
  • Multiple types depending span length and application
  • Allows cable slippage during imbalanced load situations



All-Dielectric, Self Supporting (ADSS) Aerial Loose Tube Fiber Optic Cable



All-Dielectric, Self Supporting (ADSS) Aerial Loose Tube Fiber Optic Cable

Vibration Dampers

  • ADSS cables can experience Aeolian vibration under certain circumstances
  • Circumstances conducive to Aeolian vibration
  • Laminar wind flow, Wide open spaces, Light winds, High tensions
  • Vibration dampers minimize the effects of this vibration



All-Dielectric, Self Supporting (ADSS) Aerial Loose Tube Fiber Optic Cable

Installation Document References

  • IP 014 PowerGuide Installation
  • IP 014A PowerGuide ADSS CABLE Installation Guideline Distribution Line Applications
  • IP 006 PowerGuide Sheath Removal
  • IP 017 PowerGuide Hardware Installation
  • AN-101 Maximum Rated Cable Loads & Minimum Bending Diameter
  • AN-203 Space Potential Calculation for PowerGuide ADSS Cable

Note

Installation documents available upon request.



Cable Ordering Information
Example AT-8EE17UF-NNN¹-CNGA
Part Number Fiber² Sheath Core Fiber Count Custom³
AT-S1 S2 SF S3 S4 S5 S6 – NNN – CNGA
S1 Fiber Selection
8= 1310/1550 nm (AllWave®FLEX 200µm ZWP Fiber)
9= 1310/1550 nm (AllWave®FLEX + 200µm ZWP Fiber)
S2 Fiber Transmission Performance
E= 0.36/0.31/0.27/0.25/0.27 dB/km @ 1310/1385/1490/1550/1625 nm(AllWave®FLEX 200µm ZWP Fiber) (AllWave®FLEX + 200µm ZWP Fiber)
SF Fiber Type
E= AllWave® ZWP Single Mode
S3 Sheath Construction
1= All-Dielectric single jacket
S4 Tensile Load
7= ADSS
S5 Core Type
U= Dry Core Loose Tube
S6 Fibers per Tube
F= 24 Fibers
NNN Fiber Count
Note ¹ Part Number shown is for PowerGuide ADSS Cable with 200 µm Single Mode AllWave®FLEX 200µm ZWP Fiber with maximum attenuation: 0.36/0.31/0.27/0.25/0.27 dB/km @ 1310/1385/1490/1550/1625 nm .
Note ² Contact LIGHTERA sales representative for information on other cable variations, including additional fiber types, composite cables and attenuation.
Note ³ Consult with us regarding your application, span lengths and loading conditions to complete the custom design and part number of your complete sheath strengths system.

Note

The information is believed to be accurate at time of issue.

Trademark Notice and Disclaimer

Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.

Contact Information

For additional information please contact your sales representative.

You can also visit our website at lightera.com or email cableinfo@lightera.com
