- Up to 5 times lower bending loss than CSMF fanouts or patchcords
- Great performance and easy-of-management in cabinets or other patch panel systems
- Lightera’ AllWave FLEX Fiber complies with ITU G.652D specifications
Part no -
06820-01
AllWave FLEX Zero Water Peak (ZWP) Fanouts
The AllWave® FLEX Fanouts enable superior optical performance and high density connectivity in any FTTx network deployment. Configured with Lightera’ low loss MPO connector, the AllWave FLEX Fanouts provide excellent loss performance and bend radius insensitivity.
AllWave FLEX Fanouts feature AllWave FLEX Zero Water Peak (ZWP) Fiber which offers as much as five times lower bending loss than Convention Single-Mode Fiber (CSMF) jumpers on the market today.
In FTTx deployments, bends occur in a variety of locations where they can greatly impact the network performance. Consequently bend insensitivity becomes a key performance parameter, especially in areas where handling and routing of fiber paths are necessary. As data rates and distances increase and power budgets tighten, it is imperative that all optical components minimize signal loss to support present and future applications. AllWave FLEX Fanouts are ideal for integration into smaller field cabinet designs and other space limited routing architectures. They are available in both 8 and 12 fiber MPO connectors on bare ribbon, tight-buffered ribbon and cordage, and include standard connectors on the opposite end.
The AllWave® FLEX Fanouts enable superior optical performance and high density connectivity in any FTTx network deployment. Configured with Lightera’ low loss MPO connector, the AllWave FLEX Fanouts provide excellent loss performance and bend radius insensitivity.
AllWave FLEX Fanouts feature AllWave FLEX Zero Water Peak (ZWP) Fiber which offers as much as five times lower bending loss than Convention Single-Mode Fiber (CSMF) jumpers on the market today.
In FTTx deployments, bends occur in a variety of locations where they can greatly impact the network performance. Consequently bend insensitivity becomes a key performance parameter, especially in areas where handling and routing of fiber paths are necessary. As data rates and distances increase and power budgets tighten, it is imperative that all optical components minimize signal loss to support present and future applications. AllWave FLEX Fanouts are ideal for integration into smaller field cabinet designs and other space limited routing architectures. They are available in both 8 and 12 fiber MPO connectors on bare ribbon, tight-buffered ribbon and cordage, and include standard connectors on the opposite end.
Features
Product Description
The AllWave® FLEX Fanouts enable superior optical performance and high density connectivity in any FTTx network deployment. Configured with Lightera’ low loss MPO connector, the AllWave FLEX Fanouts provide excellent loss performance and bend radius insensitivity.
AllWave FLEX Fanouts feature AllWave FLEX Zero Water Peak (ZWP) Fiber which offers as much as five times lower bending loss than Convention Single-Mode Fiber (CSMF) jumpers on the market today.
In FTTx deployments, bends occur in a variety of locations where they can greatly impact the network performance. Consequently bend insensitivity becomes a key performance parameter, especially in areas where handling and routing of fiber paths are necessary. As data rates and distances increase and power budgets tighten, it is imperative that all optical components minimize signal loss to support present and future applications. AllWave FLEX Fanouts are ideal for integration into smaller field cabinet designs and other space limited routing architectures. They are available in both 8 and 12 fiber MPO connectors on bare ribbon, tight-buffered ribbon and cordage, and include standard connectors on the opposite end.
Applications
- FTTx, Hybrid Fiber Coaxial (HFC), and all other optical access networks
- MPO splitter modules in Outside Plant Cabinets
- General broadband CATV networks
|
AllWave FLEX Fanout Specifications |
||||
|---|---|---|---|---|
| Connector Type | Ferrule/Polish | Loss (Typical) | Loss (Max) | Return Loss (Min) |
|
MPO |
Single-Mode Low Loss 8-Fiber APC |
0.16 dB |
0.35 dB |
55 dB |
|
Single Fiber |
Single-Mode UPC |
0.20 dB |
0.50 dB |
50 dB |
|
Single Fiber |
Single-Mode APC |
0.30 dB |
0.50 dB |
50 dB |
|

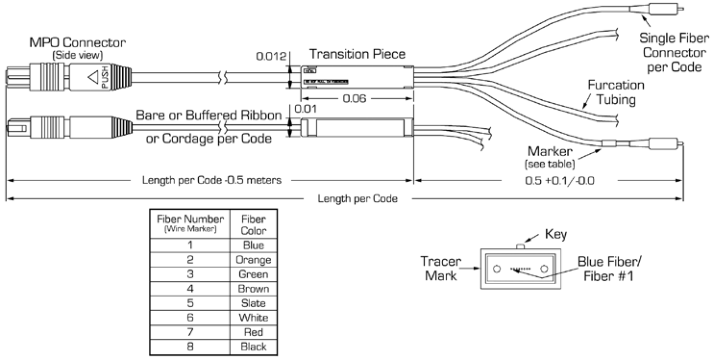

Fiber Color Information |
|
|---|---|
| Fiber Number | Fiber Color |
|
1 |
Blue |
|
2 |
Orange |
|
3 |
Green |
|
4 |
Brown |
|
5 |
Slate |
|
6 |
White |
|
7 |
Red |
|
8 |
Black |
Example
MPO8TAPC/LCAPC-OAWF/TCF-3M
Syntax
MPO [1] [2] [3] / [4] [5] – OAWF / [6] – [7] M
[1]
# of Fibers
8 – 8 fiber
12 – 12 fiber
[2]
Guide Pin
T – With Guide Pins (male)
U – Without Guide Pins (female)
[3]
Polishing Type for Connector
PC – PC polish (flat ferrule)
APC – Angled PC polish (angled ferrule)
[4]
Single Fiber Connector Type
SC – SC Connector
LC – LC Connector
[5]
Polishing Method for Single Fiber Connector
UPC – PC polish (flat ferrule)
APC – Angled PC polish (angled ferrule)
[6]
Cable Type
T – Bare Ribbon
PVC – Tight-buffered PVC
TCF – Cordage (ruggedized ribbon)
[7]
Cable Length (in meters)
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
