101 – 200 µm
Part no -
BF06734-05

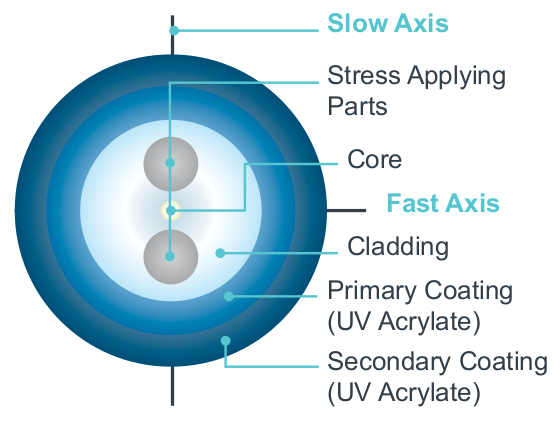

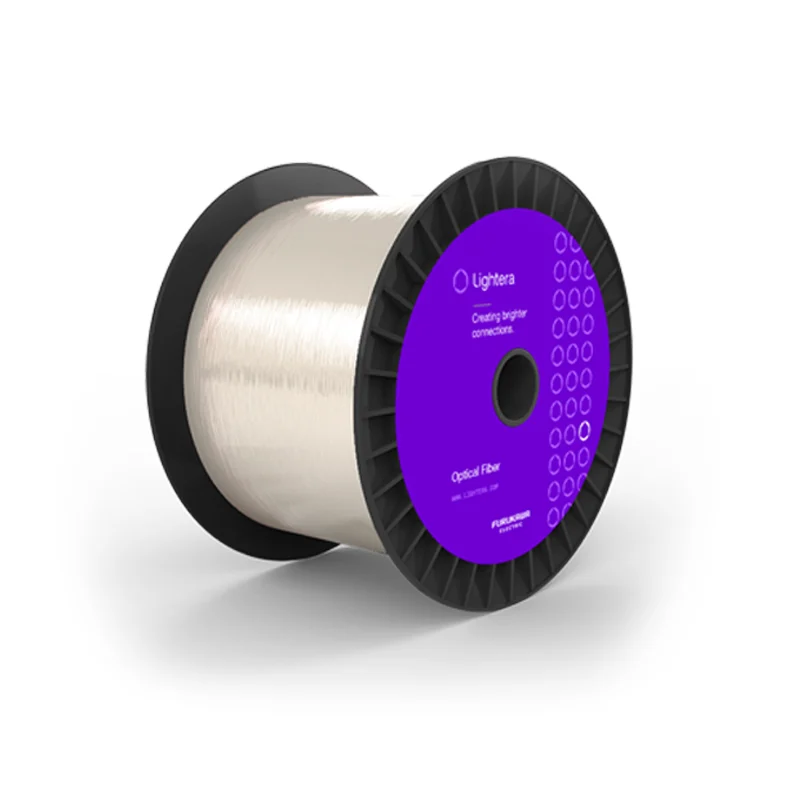

ClearLite® TruePhase® 1550 Polarization-Maintaining Optical Fiber
TruePhase 1550 fibers designed to operate at 1550 nm, maintain linear polarization and are available in standard and reduced buffer sizes. These fibers are made specifically for use with premium photonic devices such as phase-sensitive Lithium Niobate Modulators.
Used as a source laser pigtail, TruePhase 1550 fibers preserve the coherence of emitted laser light. The 250 buffer size is recommended for PMD compensators, which use longer lengths of fiber.
TruePhase 1550 fibers designed to operate at 1550 nm, maintain linear polarization and are available in standard and reduced buffer sizes. These fibers are made specifically for use with premium photonic devices such as phase-sensitive Lithium Niobate Modulators.
Used as a source laser pigtail, TruePhase 1550 fibers preserve the coherence of emitted laser light. The 250 buffer size is recommended for PMD compensators, which use longer lengths of fiber.
Cladding Diameter
Coating Diameter
200 – 300 µm
Coating Type
Dual Layer Acrylate
Fiber Type
Polarization-Maintaining
Numerical Aperture
0.10 – 0.15
Operating Temperature
Standard Temp
Operating Wavelength (nm)
1550 nm
Overview
TruePhase 1550 fibers designed to operate at 1550 nm, maintain linear polarization and are available in standard and reduced buffer sizes. These fibers are made specifically for use with premium photonic devices such as phase-sensitive Lithium Niobate Modulators.
Used as a source laser pigtail, TruePhase 1550 fibers preserve the coherence of emitted laser light. The 250 buffer size is recommended for PMD compensators, which use longer lengths of fiber.
Typical Applications
- Laser Pigtails
- Lithium Niobate and Other External Modulators
- Other Polarization-Sensitive Components
- PMD Compensators
- Polarizing Beam Splitters
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | ClearLite TruePhase 1550 PM Optical Fiber |
| Physical Characteristics | |
| Coating Type | Dual UV Acrylate |
| Cladding Diameter | 125 ± 1 µm |
| Coating/Buffer Diameter | 250 ± 10 µm |
| Clad Non-Circularity | ≤ 2.0% |
| Core/Clad Offset | ≤ 0.5 µm |
| Optical Characteristics | |
| Type | Polarization-Maintaining |
| Operating Wavelength | 1550 nm |
| Cutoff Wavelength | ≤ 1470 nm |
| Mode Field Diameter @ 1550 nm | 10.5 ± 0.5 µm |
| Attenuation @ 1550 nm | ≤ 0.5 dB/km |
| Beat Length @ 1550 nm | ≤ 5.0 mm |
| Numerical Aperture (Nominal) | 0.13 |
| Crosstalk @ 1550 nm/100 m | ≤ -30 dB |
| Crosstalk (Typical) @ 1550 nm/100 m | ≤ -35 dB |
| Crosstalk under bend @ 1550 nm, 10 turns, 7.5 mm radius | ≤ -30 dB |
| Macrobending Loss @ 1550 nm, 10 turns, 7.5 mm radius | ≤ 0.2 dB |
| Mechanical and Environmental | |
| Operating Temperature | -40 to +85 ºC |
| Short-Term Bend Radius | ≥ 5 mm |
| Long-Term Bend Radius | ≥ 9 mm |
| Proof Test Level | ≥ 200 kpsi (1.38 GPa) |
| Order by Part Number | BF06734-05 |
| OPTIONS | Cabling, Coating Material and Dimensions, Metalization, Optical Properties, Proof Test |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
