- Supports rapid field installation
- Robust enough for the outside plant (OSP)
- Connectorized with LC, SC or ST connector types
- Polished with UPC or APC end face
- Standard leads of 39 inches
Part no -
06921-01

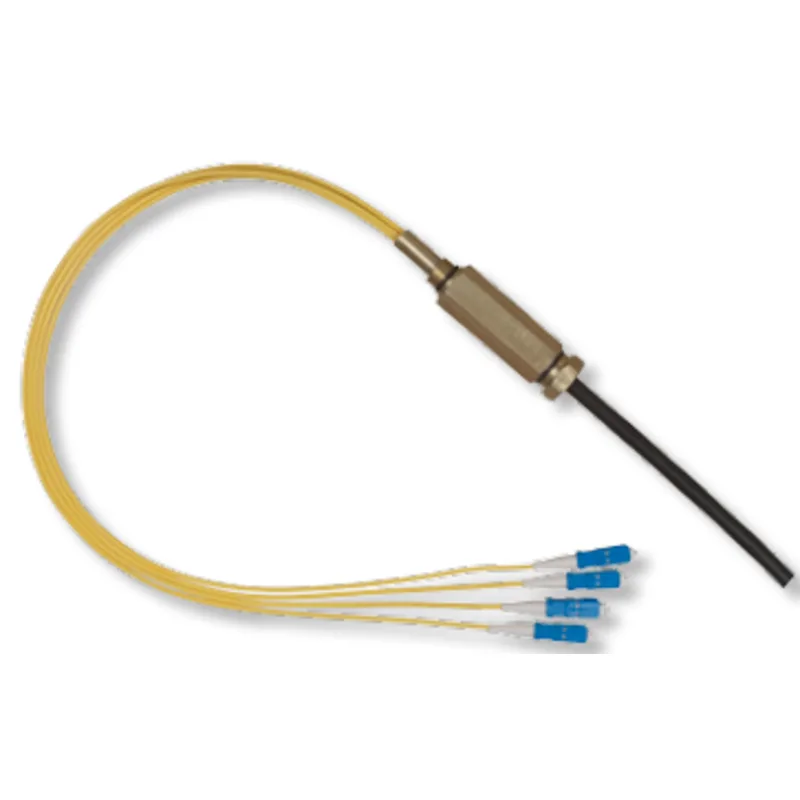

Drop Node Cable High-Performance Node Coupler Designs
The Lightera Node Coupler Cable Designs are noted for their superior transition support and ease of installation. These unique designs can accommodate a wide variety of loose tube or central tube cable designs up to 12 fibers. All assemblies are factory assembled and tested to the Lightera standard of performance.
Designed for rugged outdoor use, the Drop Node Cable incorporates a standard 5/8 inch, 24-threaded fitting made from a chromate material that encases an epoxy-filled plug. This plug and housing deliver effective strain relief to eliminate cable pistoning, while providing superior mechanical protection for the optical fibers and a watertight connection to the optical node. Choose from our high-performance OPTION1 or Loose Tube Light Armor or Dielectric DryBlock® Cables, in a variety of configurations.
The Lightera Node Coupler Cable Designs are noted for their superior transition support and ease of installation. These unique designs can accommodate a wide variety of loose tube or central tube cable designs up to 12 fibers. All assemblies are factory assembled and tested to the Lightera standard of performance.
Designed for rugged outdoor use, the Drop Node Cable incorporates a standard 5/8 inch, 24-threaded fitting made from a chromate material that encases an epoxy-filled plug. This plug and housing deliver effective strain relief to eliminate cable pistoning, while providing superior mechanical protection for the optical fibers and a watertight connection to the optical node. Choose from our high-performance OPTION1 or Loose Tube Light Armor or Dielectric DryBlock® Cables, in a variety of configurations.
Features And Benefits
Attributes
Node Coupler
- Water blocked node coupler design
- TrueWave RS Single-Mode Fiber
- Up to 600 lb strain relief structure
- Cable crimp separate from the node coupler
- Node coupler spins freely from cable crimp to ensure ease of cable installation
- Standard 5/8" 24 UNEF (Unified Extra Fine) thread for node attachment
GR-20 Compliant
- Impact test (EIA/TIA-455-25B)
- Compressive strength (EIA/TIA-455-41A)
- Flex test (EIA/TIA-455-104A)
- Operating temperature ranges:
- Installation: -30° to 60 °C (-22° to 140 °F)
- Operation: -40° to 70 °C (-40° to 158 °F)
- Storage/shipping: -40° to 75 °C (-40° to 167 °F)
Product Description
The Lightera Node Coupler Cable Designs are noted for their superior transition support and ease of installation. These unique designs can accommodate a wide variety of loose tube or central tube cable designs up to 12 fibers. All assemblies are factory assembled and tested to the Lightera standard of performance.
Designed for rugged outdoor use, the Drop Node Cable incorporates a standard 5/8 inch, 24-threaded fitting made from a chromate material that encases an epoxy-filled plug. This plug and housing deliver effective strain relief to eliminate cable pistoning, while providing superior mechanical protection for the optical fibers and a watertight connection to the optical node. Choose from our high-performance OPTION1™ or Loose Tube Light Armor or Dielectric DryBlock® Cables, in a variety of configurations.
Syntax
PNX-X-XXXXXX-XX-XXX-XX-XXX-X
PN[X]
Design Type
Fiber Leads from Coupler
1 – 900 µm
2 – 2.0mm up-jacked (2-6 fibers only)
X
Fiber Type
B – Single-Mode Blue Tiger
A – AllWave® Zero Water Peak (ZWP)
W – AllWave FLEX ZWP
M – Multimode 50 micron
L – Multimode 62.5
G – LaserWave® 150
Z – LaserWave 300
F – LaserWave 500
T – TrueWave®
XXX
Connector Inside
Node Coupler End
Connector Type
LCU – LC UPC Polish
LCA – LC Angled Polish
LCU40 – LC UPC Polish 40 degree boot
LCA40 – LC Angled Polish 40 degree boot
SCU – SC UPC Polish
SCA – SC Angled Polish
STP – STII+ Pull Proof
FCU – FC UPC Polish
FCA – FC Angled Polish
UNC – Unconnectorized
XXX
Connector Outside
Connector Type
LCU – LC UPC Polish
LCA – LC Angled Polish
LCU40 – LC UPC Polish 40 degree boot
LCA40 – LC Angled Polish 40 degree boot
SCU – SC UPC Polish
SCA – SC Angled Polish
STP – STII+ Pull Proof
FCU – FC UPC Polish
FCA – FC Angled Polish
UNC – Unconnectorized
XX
Cable Type
H2YT – Loose Tube DryBlock Light Armor
12YT – LT Dielectric DryBlock Single Jacket
XXX
Number of Fibers
2
3
4
6
8
12
XX
Breakout Length
From Node to Con Inside
01 – 18”
02 – 24”
03 – Standard (39”)
04 – 48”
XXX
Length
from Con Inside To End of Cable
Length or E/W
X
Measure
F – Feet
M – Meters
KM – Kilometer
| Drop Node Cable Ordering Codes | ||
|---|---|---|
| Node Coupler | Order Code | Descriptor |
| Dielectric | 300 417 334 | PN1-W-SCAUNC-12DT-004-03-015M |
| Dielectric | 300 417 094 | PN1-W-SCAUNC-12DT-006-03-E/W |
| Light Armor | 300 417 862 | PN1-W-SCAUNC-H2DT-004-03-E/W |
| Light Armor | 300 417 714 | PN1-W-SCUUNC-H2DT-004-03-E/W |
| Light Armor | 300 417 847 | PN1-W-SCAUNC-H2DT-004-03-50F |
| Light Armor | 300 417 722 | PN1-W-SCAUNC-H2DT-006-03-E/W |
| Light Armor | 300 421 450 | PN1-W-SCAUNC-H2DT-006-03-0150F |
