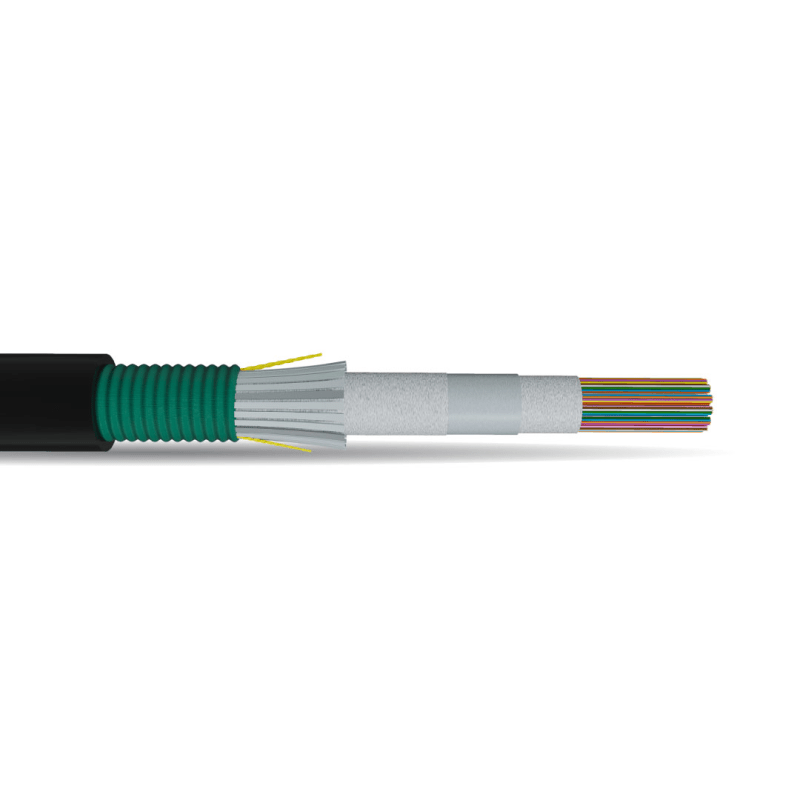

The DuctSaver® Rollable Ribbon (RR) Cable features 24, 48, 72, 96, 144, 288, or 432 optical fibers in a gel-free, central core cable design. This cable features rollable ribbons, the newest optical fiber ribbon design from Lightera. To form these ribbons, individual 250 µm fibers are partially bonded to each other at predetermined points. The cable design features a central tube construction with helical strength elements for durable protection and superior coiling performance to alternative products.
The DuctSaver® Rollable Ribbon (RR) Cable features 24, 48, 72, 96, 144, 288, or 432 optical fibers in a gel-free, central core cable design. This cable features rollable ribbons, the newest optical fiber ribbon design from Lightera. To form these ribbons, individual 250 µm fibers are partially bonded to each other at predetermined points. The cable design features a central tube construction with helical strength elements for durable protection and superior coiling performance to alternative products.
The DuctSaver® Rollable Ribbon (RR) Cable features 24, 48, 72, 96, 144, 288, or 432 optical fibers in a gel-free, central core cable design. This cable features rollable ribbons, the newest optical fiber ribbon design from Lightera. To form these ribbons, individual 250 µm fibers are partially bonded to each other at predetermined points. The cable design features a central tube construction with helical strength elements for durable protection and superior coiling performance to alternative products.
The DuctSaver RR Cable’s rollable ribbon design helps users to achieve highly efficient and cost-effective mass fusion splicing along with easy individual fiber breakout.
In addition, the DuctSaver RR Cable’s greater fiber density can help to expand the capacity of existing pathways using smaller, lower-cost duct systems.
The DuctSaver RR Cable’s ribbons may be “rolled” (compacted) and routed like individual fibers to facilitate use in smaller closures and splice trays.
In addition, this cable’s completely gel-free water-blocking design also helps to reduce the time required to prepare cable ends which can also help with reduced labor and splice costs.
With its ability to maximize duct utilization, the DuctSaver RR Cable is an excellent choice for connecting very large fiber distribution hubs. It is also highly suitable for use in data centers, FTTx and access networks.
| Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version* | D | D | D | D | A |
A |
A |
A |
T | T | T |
| Fiber Count | 24-72 | 96-144 | 288 | 432 | 24-72 | 96-144 | 288 | 432 | 72 | 96 | 144 |
| Cable Outer Diameter – in. (mm) | 0.35 (9) | 0.39 (10) | 0.47 (12) | 0.57 (14.5) | 0.43 (11.0) | 0.46 (11.6) | 0.54 (13.6) | 0.63 (16.0) | 0.35 (9) | 0.39 (10) | 0.39 (10) |
| Cable Weight – lb/kft (kg/km) | 44 (65) | 53 (79) | 73 (109) | 99 (148) | 72 (106) | 84 (125) | 113 (168) | 139 (207) | 46 (69) | 52 (78) | 54 (82) |
| Note* |
|
||||||||||
| Handling (All Fiber Counts) | |
|---|---|
| Minimum Bend Radius, with Load | 15 X OD (Outer Diameter) |
| Minimum Bend Radius, with No Load | 15 X OD |
| Minimum Bend Radius, Storage Coils | 10 X OD |
| Maximum Rated Cable Load (MRCL) | 600 lb. (2700 N) |
| Maximum Long-term Load | 180 lb. (800 N) |
| Temperature (All Fiber Counts) | |
|---|---|
| Installation | -22 °F to 140 °F (-30 °C to 70 °C) |
| Operation | -40 °F to 158 °F (-40 °C to 70 °C) |
| Storage | -40 °F to 167 (-40 °C to 70 °C) |
| Performance Standard (all Fiber Counts) | |
|---|---|
| Tested per Applicable Requirements of ANSI/ICEA S-87-640 and Telcordia GR-20 CORE Issue 4. |
| Fiber Type² | ||||||
|---|---|---|---|---|---|---|
| Single-Mode Optical Fiber | Fiber (S1) | Fiber (S2) | Fiber (SF) | Standard | Typical* Attenuation (dB/km) | Maximum Cable Attenuation on Reel |
| AllWave'+ ZWP Optical Fiber | 3 | G | E | G.652.D/G.657.A1 | 0.35/0.3/0.22 | 0.4/ 0.4/ 0.3 |
| For more information regarding typical attenuation as well as attenuation parameters on Link Design Value (LDV) (Maximum end-to-end link attenuations over a concatenated span), please see Lightera Application Note AN-111-A which can be downloaded at www.lightera.com or contact your Lightera representative. | ||||||
| DuctSaver RR Central Core Cable Ordering Information | |||
|---|---|---|---|
| Example | AT-3GE8Y4X-NNN¹ |
||
| Armored Version | AT-3GE8Y2X-NNN |
||
| Part Number | AT – S1 S2 SF S3 S4 S5 S6 – NNN |
||
| S1 | Fiber Selection. See S1 in Fiber Type table above. |
||
| S2 | Fiber Transmission Performance. See S2 in Fiber Type table above. |
||
| SF | Fiber Type². See SF in Fiber Type table above. |
||
| S3 | Sheath Construction. 8 = All Central Core Products |
||
| S4 | Central Core Design. Y = Gel-Free Central Core Rollable Ribbon |
||
| S5 | Sheath Design. 4 = DuctSaver Dielectric Rollable Ribbon 2 = DuctSaver Armor Rollable Ribbon |
||
| S6 | Central Core-Oversheath. X = No Oversheath T = Toneable |
||
| NNN | Fiber Count. 024, 048, 072, 096, 144, 288, 432 |
||
| Note | ¹ Part Number shown is for a DuctSaver Rollable Ribbon Cable with standard AllWave+ ZWP Optical Fiber attenuation: 0.35/0.31/0.27/0.25/0.27dB/km (1310/1385/1490/1550/1625 nm) and standard cable print. LIGHTERA OPTICAL CABLE AT-3GE8Y4X-NNN [MM/YY] (UL) [HANDSET SYMBOL] [NNN] F [SERIAL #] ² Contact Lightera Order Management for information on other cable variations including additional fiber types, attenuation and custom cable print. For more information regarding typical attenuation as well as attenuation parameters on Link Design Value (LDV) (Maximum end-to-end attenuation over a concatenated span), please see Lightera Application Note AN-111 which can be downloaded at www.lightera.com or contact your Lightera representative. |
||
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
Purchase orders must clearly identify specific products requiring compliance with BABAA for BEAD requirements. BABAA for BEAD compliant products will have unique part numbers to distinguish them from non-compliant versions. For details, refer to the Lightera list of BABAA for BEAD Compliant Products listed at https://www.lightera.com/babaa-for-bead-compliant-products/
Customer is required to comply with all BABAA for BEAD requirements applicable to it. Lightera will, at its sole discretion, fulfill orders requested by Customer and will not be liable for errors in product selection, delivery or warehousing which result in the installation of non-BABAA for BEAD compliant products into BEAD funded infrastructure projects.
