Home chevron_right Products chevron_right Fiber Optic Cables chevron_right Drop Cables chevron_right EZ-Bend® 4.8 Cable Toneable
Descontinuado
Part no - 07194-01

EZ-Bend® 4.8 Cable Toneable

With the EZ-Bend® 4.8 mm Toneable Indoor/Outdoor Cable, users have yet another option for MDU, in-home wiring and aggressive, space-constrained routing environments. This toneable, riser-rated cable was specifically designed with the durability to be buried and then installed in one continuous run from the street into the home. In this way the EZ-Bend Toneable Cable eliminates the need for transition boxes and hardware on the outside of the living unit while also facilitating fast cable location along with cable bonding and grounding.

With the EZ-Bend® 4.8 mm Toneable Indoor/Outdoor Cable, users have yet another option for MDU, in-home wiring and aggressive, space-constrained routing environments. This toneable, riser-rated cable was specifically designed with the durability to be buried and then installed in one continuous run from the street into the home. In this way the EZ-Bend Toneable Cable eliminates the need for transition boxes and hardware on the outside of the living unit while also facilitating fast cable location along with cable bonding and grounding.

Features

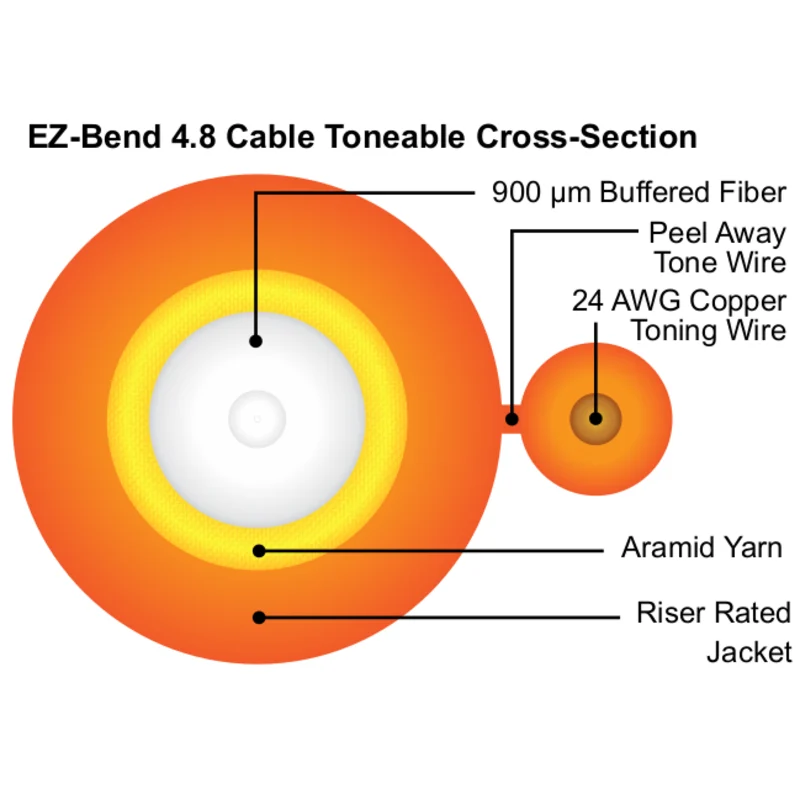

  • 4.8 mm diameter ruggedized toneable indoor/outdoor cordage
  • Less than 0.1 dB macrobending attenuation at 1550 nm for 1 turn at 5 mm fiber bend radius
  • Macrobending attenuation less than 0.3 dB/Riser version and 0.5 dB/LSZH version at 1550 nm when subjected to MDU Simulation Test called out by ICEA S-115-730
  • EZ-Bend Cables offer double the performance of G.657B3, reliable down to 2.5 mm radius
  • Backward compatible with installed G.652.D fibers
  • Conform to UL® CL2R-OF fire rating
  • Compliant with Telcordia 409 & ICEA S-83-596 and S-104-696 requirements
  • Dry water-blocked core to protect against water ingress
  • Reinforced solid jacket construction naturally limits cable bending to control macrobending attenuation and protect fiber reliability

Benefits

  • Integrated toning wire: Helps reduce installation cost (no hardware/transition box or separate locating tape/wire needed)
  • Faster, easier handling: Toning wire easily separated from cable by hand with no special tools needed
  • Compact installation and storage: Flexible design for easy slack storage in small spaces
  • Color options: Choice of optically visible orange, black or white jackets
  • Streamlined slack storage: Simply coil and bury extra slack in the ground, thereby eliminating a slack box
  • Fast, easy, low loss splicing to G.652.D fiber with existing core and clad aligned splice equipment
  • Familiar, standard connector termination: Standard industry SCA connectors are available
  • Greener Solution: Free of heavy metals and RoHS-compliant; solution uses fewer total materials and energy than copper solutions

Product Description

With the EZ-Bend® 4.8 mm Toneable Indoor/Outdoor Cable, users have yet another option for MDU, in-home wiring and aggressive, space-constrained routing environments. This toneable, riser-rated cable was specifically designed with the durability to be buried and then installed in one continuous run from the street into the home. In this way the EZ-Bend Toneable Cable eliminates the need for transition boxes and hardware on the outside of the living unit while also facilitating fast cable location along with cable bonding and grounding.

Performance

Performance
Flame Performance
Riser (UL) CL2R-OF compliant
Mechanical and Environmental Performance Telcordia GR-409, ICEA S-83-596 compliant, S-104696
Temperature Range
Installation -20 °C to +60 °C (-4 °F to +140 °F)
Operation -20 °C to +60 °C (-4 °F to +140 °F)
Storage -40 °C to +70 °C (-40 °F to +158 °F)
Maximum Tensile Rating 440 N (100 lb)
Attenuation
@ 1310 Nm Typical: 0.35 dB/km; Maximum: 0.4 dB/km
@ 1550 Nm Typical: 0.25 dB/km; Maximum: 0.3 dB/km

Product Information

Product Information
Indoor/Outdoor Cables
Cable Type Flame Rating Part Number Nominal Weight kg/km (lb/ 100 Ft)
4.8 Indoor/Outdoor Riser (UL) CL2R-OF IT48-001A-DRK-4-WPVC 23.3 kg/km (1.56 Ib/100 ft)
4.8 Indoor/Outdoor Riser (UL) CL2R-OF IT48-001A-DRO-4-WPVC 23.3 kg/km (1.56 lb/100 ft)
Note: Standard color for indoor cables is a white jacket. Standard color for indoor/outdoor cables is a black jacket. Please note that optically visible orange is available.
Example of Standard Sheath Marking (Custom sheath marking available upon request)
Black-Jacketed Riser-Rated 4.8 mm Ruggedized Toneable Drop Cable with EZ-Bend Technology:
Lightera INTERCONNECT EZ-BEND® G.657.B3 OPTICAL CABLE -C- IT48-001A-DRK-4-WPVO 9/125 C (UL) CL2R-OF {MM/YY} {LOT NUMBER} {LENGTH IN FEET}

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.

Trademark Notice and Disclaimer

Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.

Features

  • 4.8 mm diameter ruggedized toneable indoor/outdoor cordage
  • Less than 0.1 dB macrobending attenuation at 1550 nm for 1 turn at 5 mm fiber bend radius
  • Macrobending attenuation less than 0.3 dB/Riser version and 0.5 dB/LSZH version at 1550 nm when subjected to MDU Simulation Test called out by ICEA S-115-730
  • EZ-Bend Cables offer double the performance of G.657B3, reliable down to 2.5 mm radius
  • Backward compatible with installed G.652.D fibers
  • Conform to UL® CL2R-OF fire rating
  • Compliant with Telcordia 409 & ICEA S-83-596 and S-104-696 requirements
  • Dry water-blocked core to protect against water ingress
  • Reinforced solid jacket construction naturally limits cable bending to control macrobending attenuation and protect fiber reliability

Benefits

  • Integrated toning wire: Helps reduce installation cost (no hardware/transition box or separate locating tape/wire needed)
  • Faster, easier handling: Toning wire easily separated from cable by hand with no special tools needed
  • Compact installation and storage: Flexible design for easy slack storage in small spaces
  • Color options: Choice of optically visible orange, black or white jackets
  • Streamlined slack storage: Simply coil and bury extra slack in the ground, thereby eliminating a slack box
  • Fast, easy, low loss splicing to G.652.D fiber with existing core and clad aligned splice equipment
  • Familiar, standard connector termination: Standard industry SCA connectors are available
  • Greener Solution: Free of heavy metals and RoHS-compliant; solution uses fewer total materials and energy than copper solutions

Product Description

With the EZ-Bend® 4.8 mm Toneable Indoor/Outdoor Cable, users have yet another option for MDU, in-home wiring and aggressive, space-constrained routing environments. This toneable, riser-rated cable was specifically designed with the durability to be buried and then installed in one continuous run from the street into the home. In this way the EZ-Bend Toneable Cable eliminates the need for transition boxes and hardware on the outside of the living unit while also facilitating fast cable location along with cable bonding and grounding.

Performance

Performance
Flame Performance
Riser (UL) CL2R-OF compliant
Mechanical and Environmental Performance Telcordia GR-409, ICEA S-83-596 compliant, S-104696
Temperature Range
Installation -20 °C to +60 °C (-4 °F to +140 °F)
Operation -20 °C to +60 °C (-4 °F to +140 °F)
Storage -40 °C to +70 °C (-40 °F to +158 °F)
Maximum Tensile Rating 440 N (100 lb)
Attenuation
@ 1310 Nm Typical: 0.35 dB/km; Maximum: 0.4 dB/km
@ 1550 Nm Typical: 0.25 dB/km; Maximum: 0.3 dB/km

Product Information

Product Information
Indoor/Outdoor Cables
Cable Type Flame Rating Part Number Nominal Weight kg/km (lb/ 100 Ft)
4.8 Indoor/Outdoor Riser (UL) CL2R-OF IT48-001A-DRK-4-WPVC 23.3 kg/km (1.56 Ib/100 ft)
4.8 Indoor/Outdoor Riser (UL) CL2R-OF IT48-001A-DRO-4-WPVC 23.3 kg/km (1.56 lb/100 ft)
Note: Standard color for indoor cables is a white jacket. Standard color for indoor/outdoor cables is a black jacket. Please note that optically visible orange is available.
Example of Standard Sheath Marking (Custom sheath marking available upon request)
Black-Jacketed Riser-Rated 4.8 mm Ruggedized Toneable Drop Cable with EZ-Bend Technology:
Lightera INTERCONNECT EZ-BEND® G.657.B3 OPTICAL CABLE -C- IT48-001A-DRK-4-WPVO 9/125 C (UL) CL2R-OF {MM/YY} {LOT NUMBER} {LENGTH IN FEET}

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.

Trademark Notice and Disclaimer

Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.

BEAD Disclaimer

Purchase orders must clearly identify specific products requiring compliance with BABAA for BEAD requirements. BABAA for BEAD compliant products will have unique part numbers to distinguish them from non-compliant versions. For details, refer to the Lightera list of BABAA for BEAD Compliant Products listed at https://www.lightera.com/babaa-for-bead-compliant-products/

Customer is required to comply with all BABAA for BEAD requirements applicable to it. Lightera will, at its sole discretion, fulfill orders requested by Customer and will not be liable for errors in product selection, delivery or warehousing which result in the installation of non-BABAA for BEAD compliant products into BEAD funded infrastructure projects.
