• Eco-smart locking design reduces installation waste
• Compact design for tight spaces
• No polishing or epoxy required
Part no -
07471-01

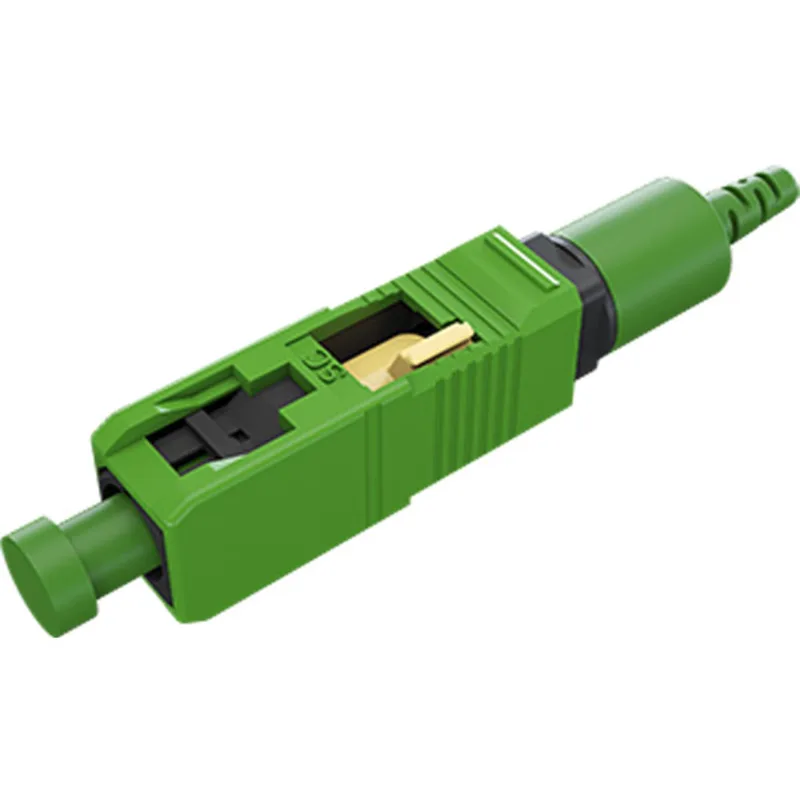

EZ!Connector II SC-APC Mechanical Connector
Lightera offers a mechanical SCA connector that provides quick and easy assembly in the field. The Connector is similar to factory installed SC APC connectors. It has the familiar push-pull insertion and release that is known by most craft personnel. Minimum amount of tools required and has an easy to follow installation method.
The offering is for single-mode connectors that can mount on bare, buffered fiber and
3.0 mm cordage.
Lightera offers a mechanical SCA connector that provides quick and easy assembly in the field. The Connector is similar to factory installed SC APC connectors. It has the familiar push-pull insertion and release that is known by most craft personnel. Minimum amount of tools required and has an easy to follow installation method.
The offering is for single-mode connectors that can mount on bare, buffered fiber and
3.0 mm cordage.
Features And Benefits
Product Description
The Lightera EZ!Connector II is an SCA mechanical connector that eliminates the need for splicing, polishing or epoxy. The innovative locking mechanism provides quick and easy assembly in the field. The connector is similar to a factory installed SC APC connector with its familiar push-pull insertion and release that is known by most installation professionals.
Applications
• FTTx MDU and SFU
• CLEC/ILEC
• MSO/Broadband/CATV
• Municipal networks
• Data centers
Performance Characteristics
| Performance Characteristics |
|
|---|---|
| Item | Specification |
| Applicable fiber | Single-Mode fiber (900 μm) for SC APC |
| Insertion loss | 0.30 dB (Typical) |
| Return loss | 50 dB (Typical) |
| Operation Temperature | -13 ºF to +167 ºF (-25 ºC to +75 ºC) |
| Storage Temperature | -13 ºF to +167 ºF (-25 ºC to +75 ºC |
| Intermateability | IEC 61754-4 |
| Assembly time | 2 minutes (Typical) |
Ordering Information:
| Mechanical SC Connector Ordering Information1 | ||
|---|---|---|
| Comcode | Item | Specification |
| S326A | Cleaver, Flat Cleave | S326A Cleaver |
| 301190138 | Mechanical Connector SCA Connector – 250/900μm buffered fiber (10 Pack) | MOCSCA-SM-900UM-W/TOOL-N010 PACK |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
