FITEL Fusion Splicer Accessories and Consumables
FITEL Fusion Splicer Accessories and Consumables
FITEL Fusion Splicer Accessories and Consumables
S42X Fusion Splicer Tool Kits
The S42X Series Fusion Splicer Tool Kit contains all of the necessary tools required for optical fusion splicing in a rugged carrying case. The durable carrying case features separate compartments for organizing tools and consumables.
| S42X Fusion Splicer Tool Kits | ||||
|---|---|---|---|---|
| Description | Model S422 | Model S423 | Model S424 | Qty |
| S210 Single Fiber Stripper | Yes | Yes | Yes | 1 |
| Carrying case | Yes | Yes | Yes | 1 |
| 250cc Polyethylene bottle with siphon | Yes | Yes | Yes | 1 |
| Cleaning cotton for optical fiber | Yes | Yes | Yes | 1 |
| Cotton stick for cleaning V-groove, lens, mirror | Yes | Yes | Yes | 1 |
| Blower brush for cleaning V-groove, lens, mirror | Yes | Yes | Yes | 1 |
| Precision screw driver set and hexagonal wrench set | Yes | Yes | Yes | 1 |
| Electrode sharpener | Yes | Yes | Yes | 2 |
| S310 Single Fiber Cleaver | Yes | No | No | 1 |
| S326A Hand-Held High Precision Cleaver | No | Yes | Yes | 1 |
| S218R Thermal Stripper | No | No | Yes | 1 |

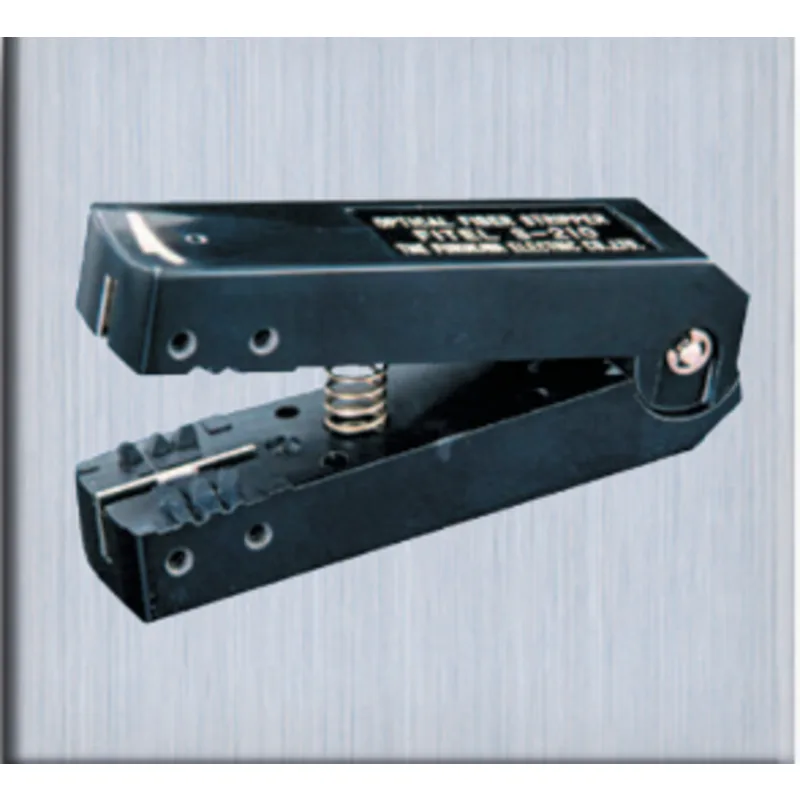

S210 Single Fiber Stripper
The FITEL S210 Single Fiber Stripper is designed to strip 0.25 mm as well as 0.9 mm diameter fiber. This easy to use stripper has a 20 mm wide base with the blade located in the center to ensure safe longitudinal stripping.
Applicable Optical Fiber
Silica glass-based optical fibers, single fiber, 0.25 mm and 0.9 mm coating diameter, 0.125 mm clad diameter.
| Physical Characteristics | |
|---|---|
| Dimensions | 20 W × 80 D × 26 H mm |
| Weight | 70 g |
S310 and S315 Single Fiber Cleavers
The FITEL S310 and S315 Single Fiber Field Cleavers are designed for cleaving fiber in the field quickly and easily. The S310 and S315 Field Cleavers can accommodate 0.25 mm and 0.9 mm coating diameters and their small lightweight size makes them the perfect addition to any field splicing system. The S310 and S315 field cleavers require some skill to achieve the desired cleave angle and may not be appropriate for some splicing applications. The S310 is specifically designed to cleave fiber in the field accurately to a 16 mm length. The S315 has a graduated scale, which allows for cleave lengths of 5 to 20 mm.
Applicable Optical Fiber
Silica glass-based optical fibers, single fiber, 0.25 mm and 0.9 mm coating diameter, 0.125 mm clad diameter.
MODELS
S310 : For cleaving 16 mm length
S315 : For cleaving 2 to 20 mm length adjusting with scale
| Physical Characteristics | |
|---|---|
| Dimensions | 20 W × 125 D × 42 H mm |
| Weight | 65 g |
S91X Temporary Fiber Aligner
Designed as a jig for temporary jointing the fibers for measuring transmission loss or for experimental purposes. A simple procedure to strip, clean, cleave and load the fiber makes a temporary jointing with a typical average loss of 0.25 dB for SM fiber (when using matching oil).
| S91X Temporary Fiber Aligner | ||
|---|---|---|
| P / N | Description | Qty |
| S91X | Main Body | 1 |
| – | Operation Manual | 1 |
| Applicable Fibers per Model | ||
|---|---|---|
| Model | Dia. of Applicable Fibers | Qty |
| S911 | 0.90 × 0.90 | 1 |
| S912 | 0.90 × 0.40 | 1 |
| S913 | 0.40 × 0.40 | 1 |
| S914 | 0.40 × 0.25 | 1 |
| S915 | 0.25 X 0.25 | 1 |
| S916 | 0.25 × 0.90 | 1 |
| SPECIFICATIONS | |
|---|---|
| Fiber Type | SM, MM (Single Fiber) |
| Insertion | 0.25 dB (with matching gel) |
| Dimensions | 50 W X 55 D X 33 H mm |
| Weight | 350 g |
S220A Optical Ribbon Fiber Separator
Designed to initiate separating 2 to 12-fiber ribbons into single fibers.
After shaving with S220A, the ribbon fiber can be easily separated by fingers into single fibers. Compact carrying case included as standard.
Applicable Optical Fiber
2 to 12 fiber ribbons with the thickness of 0.30 ~ 0.40 mm
| Physical Characteristics | |
|---|---|
| Dimensions | 55 W × 30 D × 22 H mm |
| Weight | 100 g |
| S220A Standard Package | ||
|---|---|---|
| P / N | Description | Qty |
| S220A | Optical Ribbon Fiber Separator | 1 |
| FTS-B013 | Operation Manual | 1 |
Caution
Do not use the S220A on live fiber or for a mid-span strip. Discard the section of the fibers to which the S220A was applied before splicing or reconnecting the exposed fibers.
S233 Optical Ribbon Fiber Splitter
FITEL S233 Ribbon Splitter splits 4, 8, 12,and 24-fiber ribbons more easily, quickly, and accurately than ever before. Another great Fitel fusion splicing accessory from Lightera.
Key features
- Small, simple, and compact design for field use
- All-metal body for maximum durability
- Interchangeable fiber guides for different ribbon sizes
- No tools required to change fiber guides
Applicable Optical Fiber
0.125 mm cladding diameter; 4 / 8 / 12 / 24-fiber ribbons; 0.25 mm pitch
0.30 to 0.40 mm thickness; UV-cured acrylic resin coating*
Note
* S233 may not work satisfactorily with some ribbon fiber coating materials.
| Physical Characteristics | |
|---|---|
| Dimensions | 115 W × 20 D × 20 H mm |
| Weight | 95 g |
MODELS
(see below for Fiber Guide descriptions)
S233A : Fiber Guide A is included as standard
S233B : Fiber Guide B is included as standard
S233C : Fiber Guide C is included as standard
Caution
Do not use the S233 on live fiber or for a mid-span strip.
Discard the section of the fibers to which the S233 was applied before splicing or reconnecting the exposed fibers.
| STANDARD PACKAGE | ||||||
|---|---|---|---|---|---|---|
| P N | Description | Qty | Notes | Model S233A | Model S233B | Model S233C |
| S233X-01 | Main Body** | 1 | All-metal base body for all fiber guides | Yes | Yes | Yes |
| S233X-02 | Cleaning Brush | 1 | Tool to remove fiber jacket waste | Yes | Yes | Yes |
| S233X-03 | Carrying Case | 1 | Clear; holds all standard components | Yes | Yes | Yes |
| S233X-11 | Fiber Guide A | 1 | Obverse: 4-fiber ribbon > 2 X 2-fiber ribbons Reverse: 4-fiber ribbon > 3-fiber ribbon & single-fiber |
Yes | No | No |
| S233X-12 | Fiber Guide B | 1 | Obverse: 4-fiber ribbon > 2 X 2-fiber ribbons Reverse: 8-fiber ribbon > 2 X 4-fiber ribbons |
No | Yes | No |
| S233X-13 | Fiber Guide C | 1 | Obverse: 12-fiber ribbon > 2x 6-fiber ribbons Reverse: 24-fiber ribbon > 2 X 12-fiber ribbons |
No | No | Yes |
| S233X-82 | Operation Manual | 1 | Operation Manual | Yes | Yes | Yes |
| **Not sold individually | ||||||
S612 Ribbon Forming Fixture
Designed to form a ribbon-like fiber with 2 to 12 single fibers. S612 offers a high efficient simultaneous fiber splice with FITEL ribbon fusion splicers.
Key features
- Easy to operate
- Smallest fixture in the industry
- Consumables are adhesive only
| SPECIFICATIONS | |
|---|---|
| Applicable Optical Fiber | 2 to 12 fiber ribbons |
| Dimensions | 120 W × 60 D × 58 H mm |
| Weight | 400 g |
| STANDARD PACKAGE | ||
|---|---|---|
| P / N | Description | Qty |
| S612 | Ribbon forming fixture | 1 |
| S611-04 | Adhesive | 50 ml X 2 bottles |
| FTS-B010 | Operation Manual | 1 |
Features
- Perfect fiber cleaning solution to go with FITEL S18x series
- Can clean 2 fibers at the same time
- The height of the holder stand can be adjusted according to the amount of alcohol
- RoHS compliant
| SPECIFICATIONS | ||
|---|---|---|
| Item | Specification | Notes |
| Applicable Fibers | Quartz optical fiber | |
| Applicable Holders | S709, S710, S710LDF, S712 | |
| Fibers Cleave Length | 3 to 10 mm | Length between Holder to Fiber tip : 13 mm |
| Dimension | Ultrasonic Cleaner: 193 W × 116 D × 118 H mm Cleaner Adapter: 114 W × 114 D × 80.5 H mm |
|
| Weight | Ultrasonic Cleaner + Cleaner Adapter : 1150 g Ultrasonic Cleaner : 950 g |
|
| Operating Environment | 5 to 45°C | Maker specification |
| Storage Environment | -30 to 75°C | Maker specification |
| Humidity | 20 to 80% | Maker specification |
| Power Source | AC 120 or 220 V (50 / 60 Hz) | Safety Timer |
| 5 minutes | Can clean 2 fibers at the same time | Maker specification |
| STANDARD PACKAGE | |||
|---|---|---|---|
| Item | P / N | Description | Qty |
| S903 A-sets | S903-A | Cleaner Adapter Operation Manual Ultrasonic Cleaner (120 V) |
1 |
| S903 B-sets | S903-B | Cleaner Adapter Operation Manual Ultrasonic Cleaner (220 V) |
1 |
Protection Sleeves
FITEL offers a wide variety of protection sleeves to accommodate single and ribbon fiber. FITEL's protection sleeves come in ribbon, standard, slim, mini, and macro sizes. They are composed of an outer an inner sleeve reinforced by an internal member made of stainless steel or ceramics.
| MODEL, SPECIFICATION AND APPLICABLE FIBER | ||||
|---|---|---|---|---|
| Model | Applicable fiber | Length | Material of strength member | Pieces / pack |
| S921 | Single fiber, 0.25-0.9 coating diameter | 60 mm | Stainless steel | 25 |
| S921DC | Drop/Indoor cable | 60 mm | Stainless steel | 25 |
| S922 | Single fiber, 0.25-0.9 mm coating diameter | 40 mm | Stainless steel | 25 |
| S924 | Single fiber and up to 8-fiber ribbon | 40 mm | Quartz | 25 |
| S927A | Single fiber and up to 8-fiber ribbon | 40 mm | Ceramic | 100 |
| S927B | Single fiber and up to 12-fiber ribbon | 40 mm | Ceramic | 100 |
| S928A-20 | Single fiber 0.25-0.4 mm coating diameter | 20 mm | Stainless steel | 100 |
| S928A-25 | Single fiber 0.25-0.4 mm coating diameter | 25 mm | Stainless steel | 100 |
| S928A-35 | Single fiber 0.25-0.4 mm coating diameter | 35 mm | Stainless steel | 100 |
