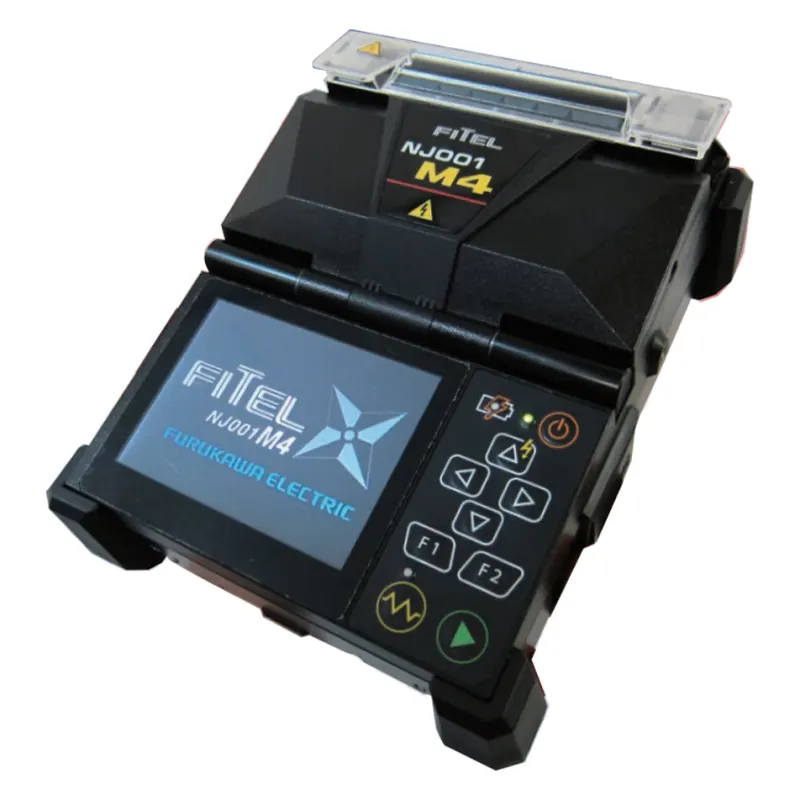

FITEL Splicer NJ001M4
FITEL Splicer NJ001M4
3-LED lighting system makes splicing work easy and secure even in dimly lit environments.
The ability to remove the V-groove allows for easy detection of dust and debris and facilitates cleaning.
The optional Neck Strap Work Table (NSB-02) secures the Fusion Splicer in place to allow for precision work. No need to remove the fusion splicer when done. The Neck Strap Work Table folds to allow the technician to move on to next job.
| Specifications | ||
|---|---|---|
| Product Name | FITEL Splicer NJ001M4 |
|
| Applicable Fiber Count | Up to 4 fibers | |
| Applicable Fiber Type | SM (ITU-T G.652), MM (ITU-T G.651), DSF (ITU-T G.653), NZD (ITU-T G.655), BIF (Bend Insensitive Fiber, ITU-T G.657.B3) | |
| Cladding Diameter | 125 µm | |
| Fiber Coating Diameter | Single fiber: 250 to 900 µm, Ribbon fiber: thickness of 280 to 400 µm | |
| Fiber Cleaving Length | 10 mm | |
| Typical Splice Time | Single fiber: 13 sec., 4-fiber ribbon: 15 sec. | |
| Typical Heating Time *¹ | 25 sec. (in case of S922 sleeve), 30 sec. (in case of S924 sleeve) | |
| Applicable Protection Sleeve Length | 40/60 mm | |
| Average Splice Loss | SM: 0.05 dB, MM: 0.02 dB, DSF: 0.08 dB, NZDSF: 0.08dB | |
| Tension Test | Tension force: 1.96 N | |
| Dimensions | 124W X 161D x64.5H mm (not including rubber pad) | |
| Weight | 970 g (with S946 battery) | |
| Power Source | AC input: 100 to 240 V (50/60 Hz), DC input: 11 to 17 V | |
| Battery Capacity *² | 100 splice and heat cycles (typical) | |
| Operating Condition | Temperature: -10 to 50 degree C, Humidity: 0 to 95 %RH (non-condensing) | |
| Storage Condition | Temperature: -40 to +60 degree C, Humidity: 0 to 95 %RH (non-condensing) | |
| Note | *1) Heating time varies depending on type of sleeves
*2) The number of splicing and heating cycles is based on Lightera’s standard method. Number will vary depending on test methods. |
|
| Standard Package | ||
|---|---|---|
| Item | P/N | Q'ty |
| 1 FITEL splicer NJ001M4 main body (including S946 battery) | NJ001M4-X-A-0001 | 1 |
| 2 Hard carrying Case | HCC-07 | 1 |
| 3 Spare Electrodes | ELR-02 | 1 pair |
| 4 AC adapter | S978A | 1 |
| 5 AC cable cord | – | 1 |
| 6 Cleaning Brush | VGC-01 | 1 |
| 7 Electrode sharpener | D5111 | 1 |
| 8 Tool Case | TCC-01 | 1 |
| 9 Fiber Reformer (4) | S122-X-A-0007 | 1 pair |
| 10 Quick Reference Guide | FTS-B523 | 1 |
| 11 User Manual | UMC-01 | 1 |
