Descontinuado
Part no - 35261323

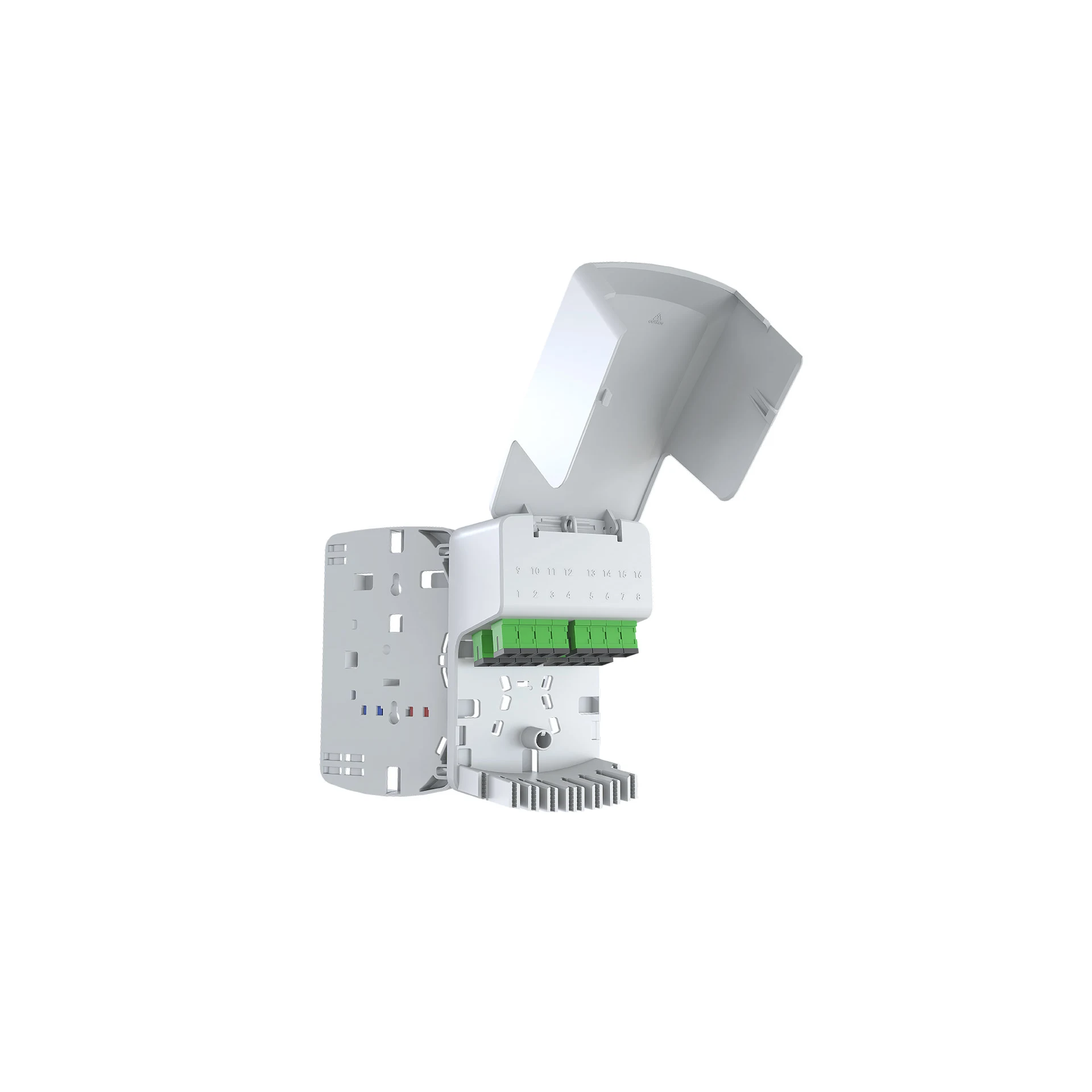

GOCLICK SLIMBOX 16 (INDOOR OPTICAL WALL BOX 16F-70/30+1X16-SC-APC/SC-APC-IN/OUT INTERNAL-SC-APC-ACCES 16-SC-APC) – BLUE

CEIP 16: compact indoor box for managing up to 16 optical fibers.

The CEIP 16 is the ideal solution for indoor optical installations that require high capacity, organization, and reliability. Designed for residential buildings, commercial environments, and advanced connectivity applications, it provides termination and management of up to 16 optical fibers in a compact, modern, and highly functional design.

With a robust structure and high‑quality finish, the CEIP 16 enables orderly fiber distribution in FTTH, FTTB, and corporate networks, ensuring stable connections, operational safety, and easy maintenance. Its internal layout was developed to optimize fiber routing, accommodate splices, pigtails, and pre‑connectorized cables, delivering agility in subscriber activation and greater efficiency in technical operations.

Compatible with SC‑APC connectors, the CEIP 16 is ideal for applications where optical performance, internal organization, and durability are essential. Its simple and versatile installation suits both network expansion projects and infrastructure modernization efforts, offering a professional solution aligned with the demands of next‑generation optical networks.

CEIP 16: compact indoor box for managing up to 16 optical fibers.

The CEIP 16 is the ideal solution for indoor optical installations that require high capacity, organization, and reliability. Designed for residential buildings, commercial environments, and advanced connectivity applications, it provides termination and management of up to 16 optical fibers in a compact, modern, and highly functional design.

With a robust structure and high‑quality finish, the CEIP 16 enables orderly fiber distribution in FTTH, FTTB, and corporate networks, ensuring stable connections, operational safety, and easy maintenance. Its internal layout was developed to optimize fiber routing, accommodate splices, pigtails, and pre‑connectorized cables, delivering agility in subscriber activation and greater efficiency in technical operations.

Compatible with SC‑APC connectors, the CEIP 16 is ideal for applications where optical performance, internal organization, and durability are essential. Its simple and versatile installation suits both network expansion projects and infrastructure modernization efforts, offering a professional solution aligned with the demands of next‑generation optical networks.

Description

The CEIP 16 is an indoor terminal box designed to provide high performance, flexibility, and reliability in optical distribution for next‑generation networks. Its modern and compact design ensures excellent fiber organization, supporting multiple configurations and delivering efficiency in FTTH, FTTB, and corporate installations.

Developed for applications where operational safety and practicality are essential, the CEIP 16 supports up to 16 activations. Its reinforced construction and secure locking system offer additional protection against unauthorized access, preserving connection integrity and extending the installation’s service life.

Available Versions

  • Basic Module: ideal for organized fiber termination and internal fiber management.
  • Module with Splitters: compatible with 1×8 or 1×16 splitters in SC‑APC or SC‑UPC versions, offering flexibility for balanced or unbalanced topologies.
  • IN/OUT Configurations: a variety of adapter options to suit different architectures and cabling routes.

Application

It is used as a termination point for optical fiber in an indoor environment

Advantage

  • Enhanced ergonomics: dedicated space for handling distribution connectors, facilitating installation and maintenance operations.
  • Reinforced safety: distribution adapters positioned inside the box body, protected from external interference.
  • Functional organization: semi-sealed cable entry module, isolated from the customer activation module, ensuring physical separation and better management of optical elements.
  • Unauthorized access protection: reserved area for padlock application, increasing installation security.
  • Aesthetics and innovation: modern and bold design, aligned with the requirements of indoor environments and high-standard projects.

Height (mm)

158

Width (mm)

93

Depth (mm)

95

Color

Gray HALL 7035.

Main Product Material

ABS.

Identification

The products are identified by a label on the cover surface as shown in the table below:

Color Splitter
Green 10/90
Yellow 15/85
White 20/80
Blue 30/70
Red 40/60
Black Balanced

Adapters Quantity

Capacity for: 16 distribution adapters without shutter + 2 IN/OUT adapters.

Splice Trays Quantity

1

Splice Capacity

2

Minimum Order Quantity

1 unit.

Included Accessories

2 screws/plugs for wall mounting.

Warranty

12 months

Compatibility

Access Adapters:

  • SC/APC and SC/UPC without flange.
  • Not compatible with shutter-type adapters.
  • IN/OUT adapters with internal or external access.

Compatible Entry Cables:

  • Round cable with diameter up to 11 mm.
  • Mini RA cable: up to Ø7.2 mm.
  • Fiber-lan indoor EZ!Lux cable: up to Ø10.8 mm.
  • Fig.8 cable: up to 8.6 x 4.5 mm.
  • Drop flat cable: up to 2.0 x 3.0 mm.

Compatible Distribution Cables:

  • Drop flat (optical element).
  • Micro indoor flat.

Compatible Splitters (APC and UPC):

  • 1×16 SC-APC/SC-APC
  • 1×16 NC/SC-APC
  • 1×16 SC-APC + 1×2 NC
  • 1×16 SC-APC + 1×2 SC-APC
  • 1×17 SC-APC/SC-APC
  • 1×17 NC/SC-APC
  • 1×8 SC-APC/SC-APC
  • 1×8 NC/SC-APC
  • 1×8 SC-APC + 1×2 NC
  • 1×8 SC-APC + 1×2 SC-APC
  • 1×9 SC-APC/SC-APC
  • 1×9 NC/SC-APC
  • 2x 1×8 SC-APC/SC-APC
  • 2x 1×8 NC/SC-APC

Weight (kg)

0.21 kg (basic module).

Package

Individual packaging in a plastic bag. Total quantity consolidated in cardboard packaging.

Note

Below is an informative table regarding total power loss by Ceip type:

Color Splitter EXTENSION PORT (HIGHER POWER)
Total loss (dB)

 CUSTOMER PORT (LOWER POWER)
Total loss (dB)
Green 90/10 1.3 25.3
Yellow 85/15 1.6 23.9
White 80/20 2 22.2
Blue 70/30 2.5 20.3
Red 60/40 3.3 19
Orange 50/50 4.3 18
Black Balanceado 18

Technical drawing
