0 – 100 µm
Part no -
27322

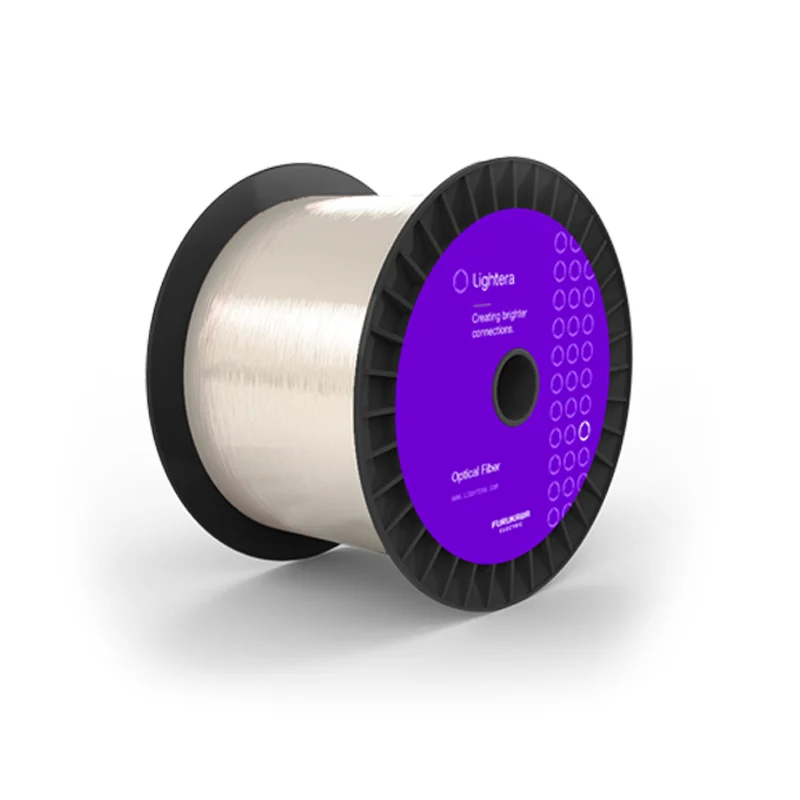

GyroSil® 1550-155 Polarization-Maintaining Optical Fiber
GyroSil 1550 Polarization-Maintaining (PM) Sensing Fibers for Fiber Optic Gyroscopes have a reduced diameter cladding of 80 μm. They exhibit excellent bend performance in small diameter coils. The fiber has a 1550 nm operating wavelength and a 155 μm diameter dual acrylate coating.
GyroSil 1550 Polarization-Maintaining (PM) Sensing Fibers for Fiber Optic Gyroscopes have a reduced diameter cladding of 80 μm. They exhibit excellent bend performance in small diameter coils. The fiber has a 1550 nm operating wavelength and a 155 μm diameter dual acrylate coating.
Cladding Diameter
Coating Diameter
< 200 µm
Fiber Type
Polarization-Maintaining
Numerical Aperture
0.16 – 0.20
Product Overview
GyroSil 1550 Polarization-Maintaining (PM) Sensing Fibers for Fiber Optic Gyroscopes have a reduced diameter cladding of 80 μm. They exhibit excellent bend performance in small diameter coils. The fiber has a 1550 nm operating wavelength and a 155 μm diameter dual acrylate coating.
Typical Applications
- Fiber Optic Gyroscopes
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | GyroSil 1550-155 Polarization-Maintaining Optical Fiber |
| Physical Characteristics | |
| Cladding Diameter | 80 ± 1 µm |
| Coating Diameter | 155 ± 5 µm |
| Core Concentricity Error | < 0.5 µm |
| Optical Characteristics | |
| Type | Polarization-Maintaining |
| Center Operating Wavelength | 1550 nm |
| Cutoff Wavelength | < 1500 nm |
| Mode Field Diameter @ 1550 nm | 6.4 ± 0.5 µm |
| Attenuation @ 1550 nm | < 1.0 dB/km |
| PM Properties | |
| H-Parmeter, Shipping Spool at Room Temperature | < 2 x 10⁻⁵ 1/m |
| Beat Length @ 1550 nm | < 3.5 mm |
| Mechanical and Environmental | |
| Proof Test Level | 100 kpsi |
| Order by Part Number | 27322 |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
