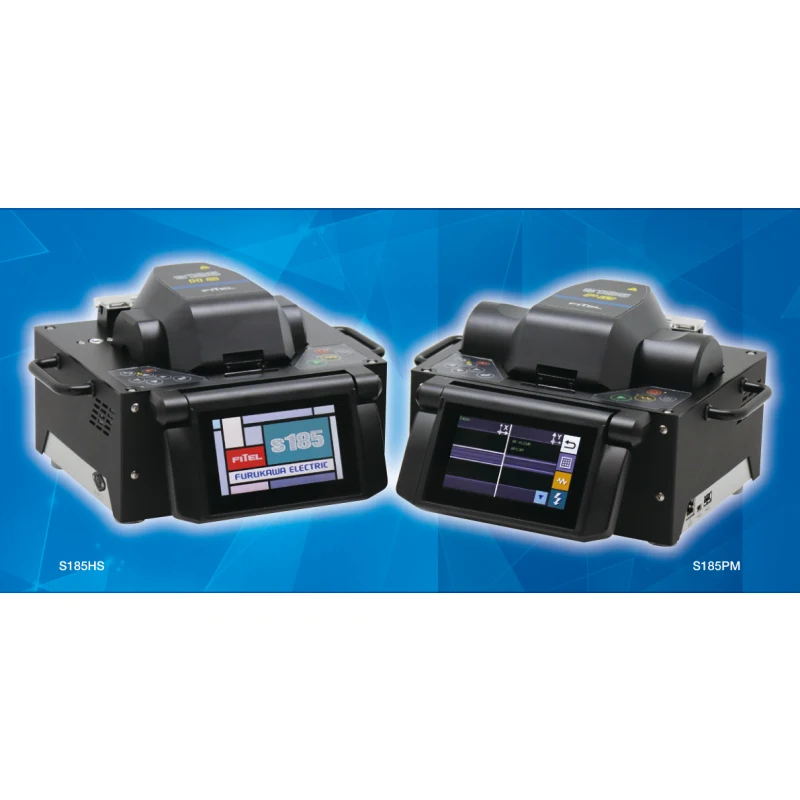

The FITEL S185HS / S185PM High-end Fusion Splicers are designed for splicing specialty fibers for factory, manufacturing and R&D applications.
The compact but powerful design has been optimized for use in the optical component and optical sensor fields.
By targeting the necessary functions in these applications, exceptional performance and a compact design are achieved with these High-end Fusion Splicers
| Specification | |||||
|---|---|---|---|---|---|
| Description | S185HS |
S185PM |
|||
| Applicable Fibers*¹ | SM, MM, DS, NZDS, High-Index, EDF | SM, MM, DS, NZDS, High-Index, EDF, PMF | |||
| Cladding Diameter | 80 to 150 μm | 80 to 150 μm | |||
| Coating Diameter | 160 to 2000 μm (In Fiber holder) 160 to 900 μm (Coating clamp splice) |
160 to 1300 μm (In Fiber holder) 160 to 900 μm (Coating clamp splice) |
|||
| Fiber Cleave Length | 3 to 4 mm (Coating clamp splice) 8 to 11 mm (Cladding clamp splice) |
3 to 4 mm (Coating clamp splice) 8 to 11 mm (Cladding clamp splice) |
|||
| Typical Splice Loss*² | SM (ITU-T G652): 0.014 dB | SM (ITU-T G652): 0.014 dB | |||
| Typical Extinction Ratio*² | – | PANDA: 40 dB*³ (Angle offset: 0.6 degree) | |||
| Return Loss | >60 dB | >60 dB | |||
| Typical Splice Time*⁴ | 15 S (SM by cladding clamp splice) | 15 S (SM by cladding clamp splice) 40 s (PANDA by cladding clamp splice) |
|||
| Tension Strength | 1.96 N (+0% to +20%) | 1.96 N (+0% to +20%) | |||
| Applicable Protection Sleeve Length | 10 to 60 mm | 10 to 60 mm | |||
| Typical Heat Time | 35 S (S922:40 mm sleeve) | 35 S (S922:40 mm sleeve) | |||
| Splice Programs | Max.200 | Max.200 | |||
| Heater Programs | Max.100 | Max.100 | |||
| Splice Data Storage | Max. 1000 including 4 images before and after splice | Max. 1000 including 4 images before and after splice | |||
| Fiber Image Magnification on LCD | 104 X, 278 X or 556 X | 104 X, 278 X or 556 X | |||
| Dimension | 210 W X 180 D X 150 H mm | 210 W X 180 D X 150 H mm | |||
| Weight (without Battery) | 4.5 kg | 4.75 kg | |||
| Monitor | 4.3" wide color LCD with touch panel | 4.3" wide color LCD with touch panel | |||
| Data Output | USB ver. 2.0 type A: 1 port USB ver. 2.0 mini B: 1 port |
USB ver. 2.0 type A: 1 port USB ver. 2.0 mini B: 1 port |
|||
| Battery Capacity (optional)*⁵ | Typical 60 splice / heat cycles | Typical 60 splice / heat cycles | |||
| Operating Temperature | 0 to 40°C | 0 to 40°C | |||
| Storage Temperature | -40 to 60°C | -40 to 60°C | |||
| Humidity | 0 to 90% (Non-condensing) | 0 to 90% (Non-condensing) | |||
| Power Source | AC input 100 to 240 V (50/60 Hz) | AC input 100 to 240 V (50/60 Hz) | |||
| Note | *1 Fibers should be applied to ITU-T standard. In case of other fibers, depending on the type of fiber, the optimization of splice program may be needed or the splice result may not be satisfied. *2 These are references. Depending on the environment and condition, the number vary. *3 Extinction ratio 40 dB is measured in the condition that the initial extinction ratio is more than 50 dB and there is the splice with 0.6 degree of rotation offset. *4 This value is references. Depending on the type of fiber and condition of fiber on splicer, the number can vary. *5 This value can produce using fully charged brand new battery at room temperature 20 degree C. Depending on the condition of the battery and operation environment, the number can vary. |
||||
| Standard package | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Item | P/N | Quantity S185HS -00 | Quantity S185HS -01 | Quantity S185HS -10 | Quantity S185HS -11 | Quantity S185PM -00 | Quantity S185PM -01 | Quantity S185PM -10 | Quantity S185PM -11 |
| S185HS Main body | S185HS-X-A-0001 | 1 | 1 | 1 | 1 | – | – | – | – |
| S185PM Main body | S185PM-X-A-0001 | – | – | – | – | 1 | 1 | 1 | 1 |
| Hard Carrying Case | HCC-12 | – | 1 | – | 1 | – | 1 | – | 1 |
| Built-in Battery Pack | S947B | – | – | 1 | 1 | – | – | 1 | 1 |
| AC Adapter | S981A | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| AC Cable Cord | – | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Z Stage Lock | ZL-01 | 1 pair | 1 pair | 1 pair | 1 pair | 1 pair | 1 pair | 1 pair | 1 pair |
| Spare Electrode | ELR-03 | 1 pair | 1 pair | 1 pair | 1 pair | 1 pair | 1 pair | 1 pair | 1 pair |
| Electrode Sharpener | D5111 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Cleaning Brush | VGC-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| User Manual | – | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ordering number form | |||
|---|---|---|---|
| Mark | Category | Code | Remark |
| A | Splicer model | HS | S185HS |
| A | Splicer model | PM | S185PM |
| B | Battery | 0 | None |
| B | Battery | 1 | Included |
| C | Hard carrying case | 0 | None |
| C | Hard carrying case | 1 | Included |
| Optional components | ||
|---|---|---|
| Item | P/N | Quantity |
| 160μm Coating Fiber Holder | S713S-160 | 1pair |
| 250μm Coating Fiber Holder | S713S-250 | 1pair |
| 300μm Coating Fiber Holder | S713S-300 | 1pair |
| 400μm Coating Fiber Holder | S713S-400 | 1pair |
| 550μm Coating Fiber Holder | S713S-550 | 1pair |
| 650μm Coating Fiber Holder | S713S-650 | 1pair |
| 900μm Coating Fiber Holder | S713S-900 | 1pair |
| 1300μm Coating Fiber Holder | S713S-1300 | 1pair |
| 550μm Coating BW Fiber Holder | S713B-550 | 1pair |
| Customized Fiber Holder*⁶ | S713S-XXX | 1pair |
| Hard Carrying Case | HCC-12 | 1 |
| Built-in Battery Pack*⁷ | S947B | 1 |
| USB Cable | USB-01 | 1 |
| Wi-Fi Dongle | WFD-01 | 1 |
| *6 Available Suitable size Fiber holder depending on the coating diameter of splicing fiber. | ||
| *7 Built-in Battery Pack should be installed by the authorized distributor or the repair center in Lightera group. | ||
| Related tools | ||
|---|---|---|
| Item | Part Number | Specification |
| Stripper | S218R-Plus | Cladding diameter 125μm only |
| Stripper | 3SAE Thermal Stripper | Cladding diameter 80 to 1000μm |
| Cleaver | S326S80 | Cladding diameter 80μm only |
| Cleaver | S326A | Cladding diameter 125μm only |
| Cleaver | NorthLab ProCleave SD | Cladding diameter 80 to 250μm |
| Cleaner | 3SAE Ultrasonic Cleaner | – |
| Protection sleeve | S921/S922 | Coating diameter 900μm or less |
| Protection sleeve | S928A-20/25/35 | Coating diameter 400μm or less |
| Fiber end face interferometer & microscope | NorthLab Proview | Cladding diameter 125 to 720μm |
