The Furukawa optical field connector was designed for flat cables (3×2 mm and 2×1.6 mm)
Part no -
35400112

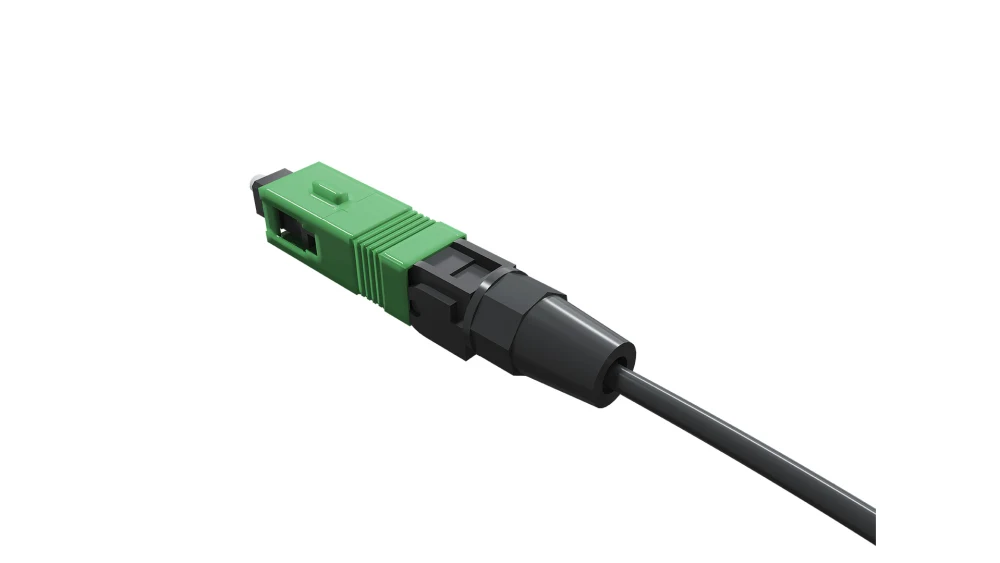

KIT WITH 10 CLIP ON 2.0 OPTICAL FIELD CONNECTOR SM SC-UPC FOR FLAT 3X2mm AND ROUND 3mm CABLES
Field installable SC-APC connector for flat cables 3x2mm, that eliminates the use of splicing, polishing or epoxy machine.
Field installable SC-APC connector for flat cables 3x2mm, that eliminates the use of splicing, polishing or epoxy machine.
Description
Application
It is used for field connectorization of optical cables at FTTx networks. Indoor application in controlled areas or in NAP closures.
Advantage
- Easy installation – no need for special tools, epoxy or field polishing;
- High optical and mechanical performance;
- Fast and easy field termination.
Storage Temperature (°C)
-25°C to 75ºC.
Operation Temperature (ºC)
-25°C to 75ºC.
Physical Characteristics
Tensile load:
- Fig.8 Low Friction cable (3×2 mm): 50 N;
- Drop 3.00 mm cable: 50 N.
Width (mm)
8.9
Height (mm)
8.2
Depth (mm)
54.5
Fiber Type
Single mode compatible with G.657 and G.652 fibers.
Polishing Type
SC-APC and SC-UPC.
Insertion Loss (dB)
Typical: 0.30 dB / Maximum: 0.50 dB.
Return Loss (dB)
Minimum 50 dB.
Compatibility
OPTICAL CABLE CFOAC-BLI-A/B-CM-01-AR-LSZH (COMPACT LOW FRICTION FIG.8 DROP)
OPTICAL CABLE CFOAC-BLI-A/B-CD-01-AR-LSZH (COMPACT LOW FRICTION FIG.8 DROP)
Included Accessories
A kit with 10 field connectors contains:
- 1 Installation guide;
- 1 Guide to insert fiber;
- 1 Measurement tool.
Certifications
ANATEL Declaration of Conformity 53500.019607/2023-93
Note
The measurements of insertion and return loss were made for 1310nm and 1550nm.
The field connector performance can not be guaranteed if it is reused.
Warranty: 12 months
