Code - 07153-01

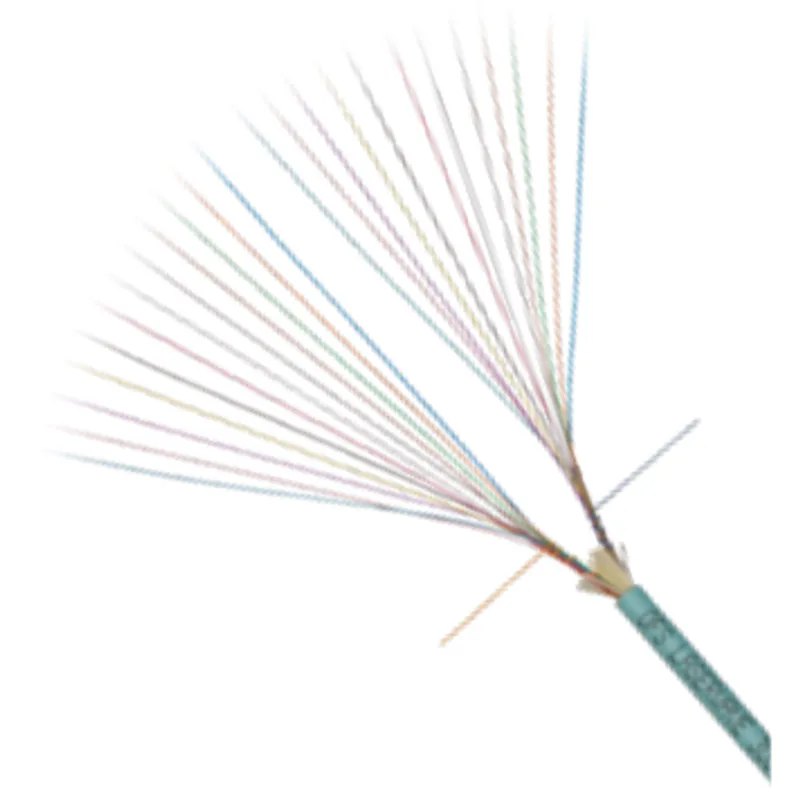

M-Pack® Interconnect Multi-Fiber Cordage

When you need a compact cordage solution for data centers or other high-density, high-bandwidth applications, look to the Lightera M-Pack® Interconnect Cordage. Designed for use with multifiber connectors, this cordage helps save on energy costs and valuable space while offering outstanding performance.

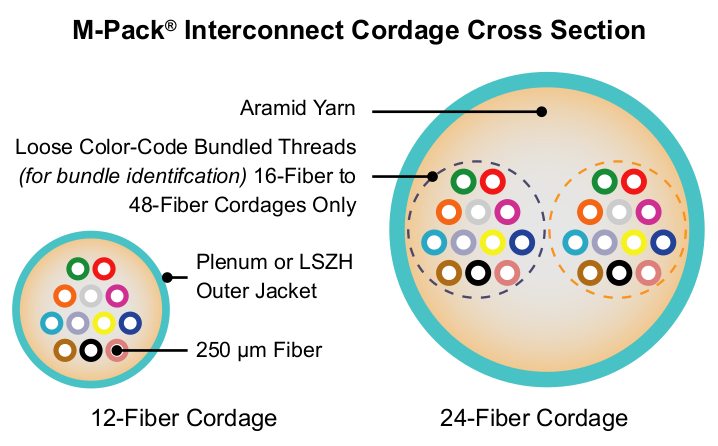

The M-Pack Cordage features color-coded 250 µm optical fibers combined with aramid yarns under a structural flame rated jacket. The M-Pack family is offered in three jacket ratings; Plenum, Riser and CPR flame ratings. Plenum rated products range from 2 to 48 fibers, Riser rated 2 to 12 fibers while the CPR rated (LSZH) feature 2 to 12 fibers. For 2 to 12 fiber cordages, the individual fibers are identified by easily-distinguishable TIA-598 compliant colors. In cordages with fiber counts of 16 to 48, the fibers are held loosely together by polyester threads for bundle identification¹.

Now available in 1.6 mm, 2.0 mm, 2.3 mm or 3.0 mm diameters!

Product Description

Now available in 1.6 mm, 2.0 mm, 2.3 mm or 3.0 mm diameters!

Features And Benefits

Small diameter, lightweight cordage allows ease of deployment and termination
Ideal for use in high-density, high-bandwidth applications and optimized for use with multi-fiber connectors
RoHS compliant and environmentally friendly; free of heavy metals and polybrominated fire retardants
Available with Lightera’ industry-leading LaserWave® Multimode Fibers and other fibers

Plenum Rated Specifications (OFNP)

Plenum Rated Specifications (OFNP)
Fiber Count	2-12	2-12	16	24	32	36	48
Cable Outer Diameter – mm. (in.)	2.0 (0.08)	3.0 (0.12)	3.8 (0.15)	3.8 (0.15)	4.5 (0.18)	4.8 (0.19)	4.8 (0.19)
Version	C	B	B	B	B	A	A
Fiber Bundles			2×8 Colors	2×12 Colors	4×8 Colors	3×12 Colors, 1xFillers	4×12 Colors
Note	Fiber bundles are bound by colored thread: blue, orange, green, brown

Riser Rated Specifications

Riser Rated Specifications
Product	MP16-R	MP20-R	MP23-R
Fiber Count	2-8	2-12	16
Cable Outer Diameter – mm. (in.)	1.6 (0.06)	2.0 (0.08)	2.3 (0.09)
Flame Rating	OFNR	OFNR	OFNR
Version	A	B	M
CPR Rating	N/A	Cca-s2, d0, a3	Cca-s2, d0, a3
DoP Lookup: https://sales.nar.lightera.com/cpr	N/A	MP20-XXX-B-R or MPHW-XXX-B-R* (XXX = Fiber Count)	MP23-XXX-M-R or MPHW-016-M-R
Note	* NOTE: MPHW is an FTTx Version of MP20 and MP23 OFNR.

LSZH Jacket Specifications

LSZH Jacket Specifications
Product	MP16-H	MP20-H	MP30-H
Fiber Count	2-8	2-12	2-12
Cable Outer Diameter – mm. (in.)	1.6 (0.06)	2.0 (0.08)	3.0 (0.12)
Flame Rating	LSZH 60332-3C	LSZH 60332-3C	LSZH 60332-3C
Version	A	A	B
CPR Rating	Dca-s1b, d0, a1	Cca-s2, d0, a1	Cca-s1a, d0, a1
DoP Lookup: https://sales.nar.lightera.com/cpr	MP16-XXX-A-H	MP20-XXX-A-H	MP30-XXX-B-H
Note	¹ The fiber bundles consist of two groups of 8 fibers for the 16-fiber cordage; two groups of 12 fibers for the 24-fiber cordage; four groups of 8 fibers for the 32-fiber cordage; three groups of 12 fibers for the 36-fiber cordage; and four groups of 12 fibers for the 48-fiber cordage.


M-Pack® Interconnect Multi-Fiber Cordage

Other Information

Other Information
Mechanical and Environmental Performance	Tested per Applicable Requirements of ICEA S-85-596, NEC 770, NEC type-DP, ANSI FDDI, IEEE 802(s), ISO/IEC 11801, TIA 568 and 598, ANSI-X3(s), ATM, Fiber Channel and HIPPI
Temperature Range
Installation	-20 ºC to 60 ºC (-4 ºF to 140 ºF)
Operation (SM)	-20 ºC to 70 ºC (-4 ºF to 158 ºF)
Operation (MM)	0 ºC to 70 ºC (32 ºF to 158 ºF)
Storage and Shipping	-40 ºC to 70 ºC (-40 ºF to 158 ºF)
Maximum Tensile Rating	100 N (22 lb)

Fiber Type

Fiber Type
Code	Single-Mode Descriptor	Grade	1310 nm	1550 nm	MCA (Z)
W	AllWave FLEX+ ZWP Bend-Optimized Single-Mode Optical Fiber	G.657.A2	0.4 (dB/km)	0.3	4
9	AllWave FLEX Max Bend-Optimized Single-Mode Optical Fiber	G.657.B3 & G.652.D	0.4	0.3	4
Code	Multimode Descriptor	Grade	850 Nm	1300 Nm	MCA (Z)
K	LaserWave FLEX G+ Multimode Optical Fiber	OM2	3.5	1.5	G
3	LaserWave FLEX 300 Multimode Optical Fiber (OM3)	OM3	3.5	1.5	G
5	LaserWave FLEX 550 Multimode Optical Fiber (OM4)	OM4	3.5	1.5	G
4	LaserWave WideBand Multimode Optical Fiber	OM5	3.5	1.5	G

M-Pack® Interconnect Cordage Ordering Information

M-Pack® Interconnect Cordage Ordering Information
Example	MP38-024B-5PA-G-12-2501
Short Description	MPNN-NNNV-WXY-Z-UU-DDD
MP	M-Pack Loose Interconnect
NN	Cordage Size 16 = 1.6 mm M-Pack Cordage (2-8 Fibers) 20 = 2.0 mm M-Pack Cordage (2-12 Fibers) 23 = 2.3 mm M-Pack Cordage (16 Fibers) 30 = 3.0 mm M-Pack Cordage (2-12 Fibers) 38 = 3.8 mm M-Pack Cordage (16 & 24 Fibers) 45 = 4.5 mm M-Pack Cordage (32 Fibers) 48 = 4.8 mm M-Pack Cordage (36 & 48 Fibers)
NNN	Fiber Count: 002-012, 016, 024, 032, 036 or 048
V	Version (See Chart)
W	Fiber Type (See Chart)
X	Jacket Material (Flame Retardant) P = Plenum H = Low Smoke/Zero Halogen (CPR Rated) R = Riser
Y	Jacket Color Y = Yellow (Single-mode Optical Fiber) O = Orange (62.5/125 µm Multimode Optical Fiber) A = Aqua (LaserWave FLEX Optical Fiber)
Z	Maximum Cable Attenuation (See Chart)
UU	Fiber Groupings or Ribbon Type = 08, 12 or 16
DDD	Fiber Outer Diameter = 250 µm
Note	* NOTE: Other colors available upon customer request. ¹ Part number shown is for a 3.8 mm LaserWave FLEX 550 OM4 Laser-Optimized Multimode Fiber Plenum-Rated (OFNP) Cordage with aqua jacket, 24 250 micron fibers and standard cable print: Lightera M-PACK® LASERWAVE FLEX 550 OM4 BIF OPTICAL CABLE -C- MP38-024B-5PA-G-12-250 50/125 C (UL) US TYPE OFNP [CSA OFN FT4 FT6] [MM/YY] {LOT NUMBER} {LENGTH IN FEET}

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
