| Product Specifications | |
|---|---|

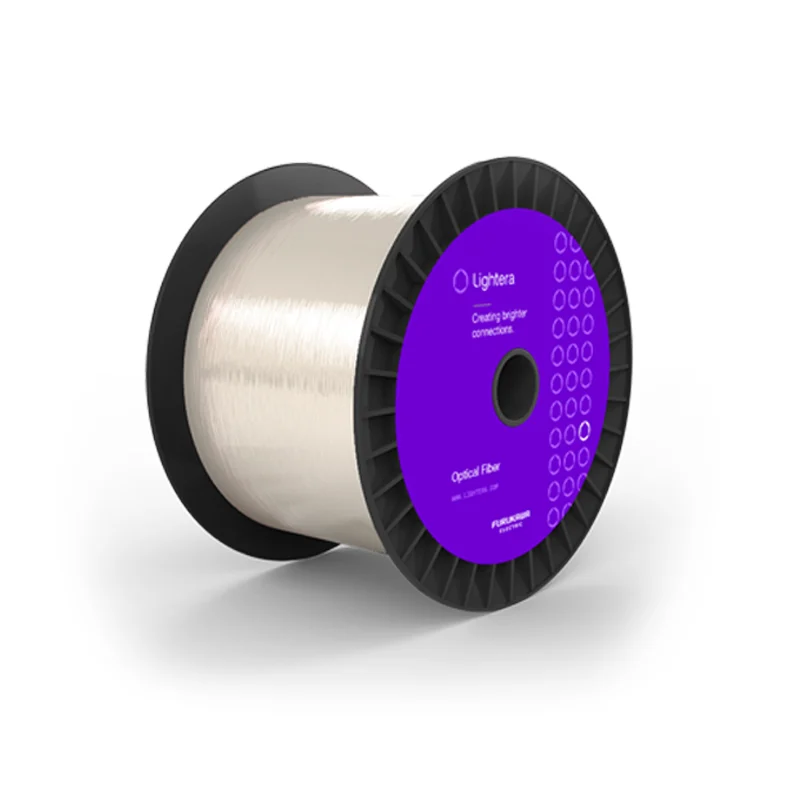

| Product Description | Mico Connect 1310 125/165 R5 Bend-Insensitive SM Optical Fiber |
| Optical Characteristics |
|
| Operating Wavelength | 1260 – 1360 nm |
| Cutoff Wavelength | < 1260 nm |
| Mode Field Diameter @ 1310 nm | 8.6 ± 0.35 µm |
| Attenuation @ 1310 nm | ≤ 1 dB/km |
| Macrobend loss @ 1310 nm 10 turns, 5 mm radius | ≤ 0.5 dB |
| Physical Characteristics |
|
| Cladding Diameter (max.) | 125 µm ± 0.5 µm |
| Core/Clad Concentricity Error | ≤ 0.5 µm |
| Clad Non-Circularity | ≤ 0.5% |
| Coating Diameter | 165 ± 5 µm |
| Mechanical and Environmental |
|
| Tensile Proof Test | 1.38 GPa (200 kpsi) |
| Order by Part Number | 94382 |
| Regulatory Compliance | REACH and RoHS Compliant |
| Quality Certification | ISO 9001 Certified |
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
