| Product Specifications | |||
|---|---|---|---|
| Product Description |

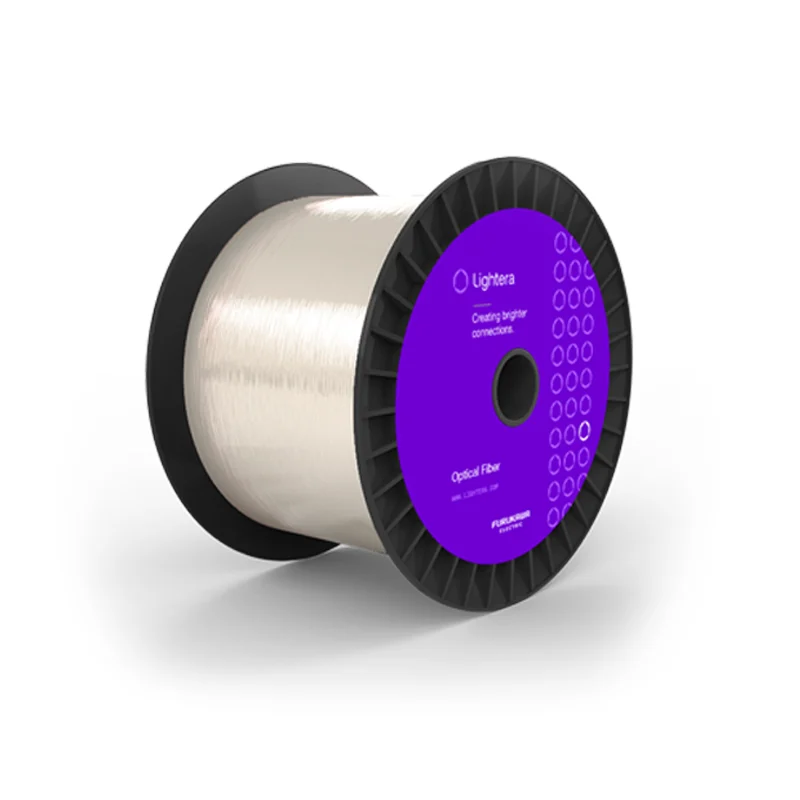

Micro Connect 80-135 Bend Insensitive SMF
|
||
| Optical Properties |
|||
| Operating Wavelength | 1310 nm |
1550 nm |
1625 nm |
| Attenuation | ≤ 0.50 dB/km | ≤ 0.30 dB/km | ≤ 0.50 dB/km |
| Mode Field Diameter | 8.6 ± 0.6 µm | 9.2 ± 0.5 µm | 9.6 ± 0.5 µm |
| Cable Cut-off Wavelength | ≤ 1260 nm | ≤ 1260 nm | ≤ 1260 nm |
| Macrobend performance (1 turn @ 5 mm radius) |
≤ 0.1 dB | ≤ 0.1 dB | ≤ 0.25 dB |
| Physical Properties |
|||
| Cladding Diameter | 80 ± 1.0 µm | ||
| Core/Clad Concentricity Error (Offset) | ≤ 0.5 µm | ||
| Coating Diameter | 135 ± 5 µm | ||
| Environmental Characteristics |
|||
| Tensile Proof Test | 1.38 GPa | ||
| Order by Part Number | 88951 | ||
| Regulatory Compliance | REACH and RoHS Compliant | ||
| Quality Certification | ISO 9001 Certified | ||
