Microduct Fibre Unit All Dielectric Design AccuBreeze®
Microduct Fibre Unit All Dielectric Design AccuBreeze®
Designed for blown installation
Recommended duct size for optimized blowing performance: 3.5 mm Inner Diameter
Other combinations are possible, please contact us for more information. Distance achievable depends on route, equipment, and quality of duct.
• Optical Fibres – AllWave® Flex (ITU-T G.657.A1)
• Soft Acrylate Inner Layer
• Hard Acrylate Outer Layer
• Glass Spheres
• Small, lightweight, and flexible fibre unit for fast
and reliable microduct installation
• Low friction outer surface

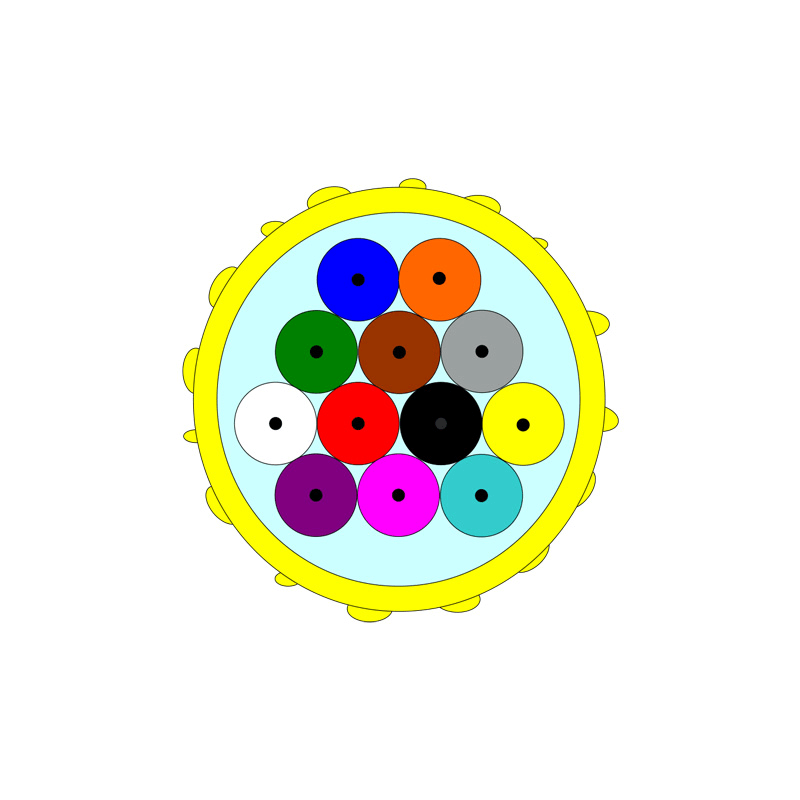

Version illustrated is the 12 Fibre Cable
|
Fibre Count
|
Outer Diameter
[mm]
|
Cable Weight
[kg/km]
|
Standard Length
[m]
|
|
4
|
1.0
|
1.0
|
4000
|
|
8
|
1.4
|
1.8
|
4000
|
|
12
|
1.5
|
2.0
|
4000
|
| This table shows nominal diameter and weight values which may differ in shipments. | |||
| Sheath Marking |
| LIGHTERA ACCUBREEZE AB1-5XE-nn-YL nnF ALLWAVE FLEX [mm/yyyy] [ID] [Meter-Marking] nn = Fibre Count Alternative sheath printing available on request. In case of order the exact sheath printing text will be clarified with the customer |
| Identification | |||||||||
| Fibre Colour Code: | |||||||||
|
1
|
Blue | 2 | Orange | 3 | Green | 4 | Red | 5 | Grey |
|
6
|
Yellow | 7 | Brown | 8 | Violet | 9 | White | 10 | Black |
|
11
|
Rose | 12 | Aqua | ||||||
| Cable Ordering Information | |||||
| Example: AB1-5XE-12-YL1 | |||||
|
Fibre2
|
Fibre
Count
|
Cable Unit
Colour
|
|||
|
Part Number: AB1-
|
S1 S2 SF
|
–
|
NNN
|
–
|
SC
|
|
Fibre Type
|
Fibre
|
Fibre
|
Fibre
|
Fibre
|
Physical
|
Wavelengths
|
Maximum
|
| SingleMode Fibre |
(S1)
|
(S2)
|
(SF)
|
Standards
|
Characteristics
|
[nm]
|
Attenuation [dB/km]
|
| AW FLEX |
5
|
X
|
E
|
ITU-T
|
G.657.A1
|
1310
|
≤ 0.36
|
|
1550
|
≤ 0.21
|
|
S1 = Fibre Selection
5 = AllWave Flex ITU-T G.657.A1
|
SF = Fibre Selection E = AllWave® Single-mode |
SC= Cable Unit Colour YL= Yellow |
| S2 = Transmission Performance Please see table above |
NNN = Fibre Count | |
| 1 Part Number shown is for AccuBreeze with Singlemode AllWave® FLEX Fibres. All-Dielectric fibre unit with 12 fibres and yellow outer layer. | ||
| 2 Contact Lightera sales representative for information on other cable variations, including additional fibre types and attenuation. | ||
For additional information please contact your sales representative.
You can also visit our website at http://lightera.com or email cableinfo@lightera.com
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services
