Part no - 07045-01

MPO Assembly Solution

Lightera offers an extensive line of high-density MPO multifiber connector products, including jumpers, fanouts, pigtails and connectorized cable. When you need a high-performance fiber optic connectivity solution, look to the Lightera family of products featuring the MPO Connector.

Low loss single-mode MPO connectors deliver the performance and reliability needed in today’s demanding high-speed broadband and data networks. Multimode LaserWave® MPO jumpers and fanouts are designed to support high-speed, short-reach, data center applications.

The MPO Connector, with its familiar push-on/pull-off insertion release mechanism, provides consistent and repeatable interconnections with up to 24 fibers in a 0.7” x 0.4” minimum footprint.

The MPO product family is available with 8, 12, and 24 fiber connectors featuring bare ribbon, tight-buffered ribbon and cordage, and includes standard adapters. Alternative fiber counts are available upon request.

Lightera offers an extensive line of high-density MPO multifiber connector products, including jumpers, fanouts, pigtails and connectorized cable. When you need a high-performance fiber optic connectivity solution, look to the Lightera family of products featuring the MPO Connector.

Low loss single-mode MPO connectors deliver the performance and reliability needed in today’s demanding high-speed broadband and data networks. Multimode LaserWave® MPO jumpers and fanouts are designed to support high-speed, short-reach, data center applications.

The MPO Connector, with its familiar push-on/pull-off insertion release mechanism, provides consistent and repeatable interconnections with up to 24 fibers in a 0.7” x 0.4” minimum footprint.

The MPO product family is available with 8, 12, and 24 fiber connectors featuring bare ribbon, tight-buffered ribbon and cordage, and includes standard adapters. Alternative fiber counts are available upon request.

Features And Benefits

  • Reliable high-density, high-performance interconnections
  • Increases fiber density on fiber shelves and faceplates
  • Improves and simplifies fiber routing
  • Decreases fiber management space
  • ANSI/TIA/EIA-604-5-199 FOCIS 5 compliant
  • Quick and easy connection with push-on/pull-off latching mechanism
  • Low insertion loss and reflectance
  • High-speed application support
  • Solution-based engineering support to meet all fiber routing requirements
  • Assistance for unique designs and configurations
  • OEM solutions for special applications

Applications

Lightera offers an extensive line of high-density MPO multifiber connector products, Reliable high-density interconnections for:

  • Equipment Interconnections
  • Telecommunications networks
  • Broadband/CATV networks
  • Data communications networks, including high-bandwidth equipment
  • Interconnections for parallel optical transmitters and receivers

Product Description

Lightera offers an extensive line of high-density MPO multifiber connector products, including jumpers, fanouts, pigtails and connectorized cable. When you need a high-performance fiber optic connectivity solution, look to the Lightera family of products featuring the MPO Connector.

Low loss single-mode MPO connectors deliver the performance and reliability needed in today’s demanding high-speed broadband and data networks. Multimode LaserWave® MPO jumpers and fanouts are designed to support high-speed, short-reach, data center applications.

The MPO Connector, with its familiar push-on/pull-off insertion release mechanism, provides consistent and repeatable interconnections with up to 24 fibers in a 0.7” x 0.4” minimum footprint.

The MPO product family is available with 8, 12, and 24 fiber connectors featuring bare ribbon, tight-buffered ribbon and cordage, and includes standard adapters. Alternative fiber counts are available upon request.

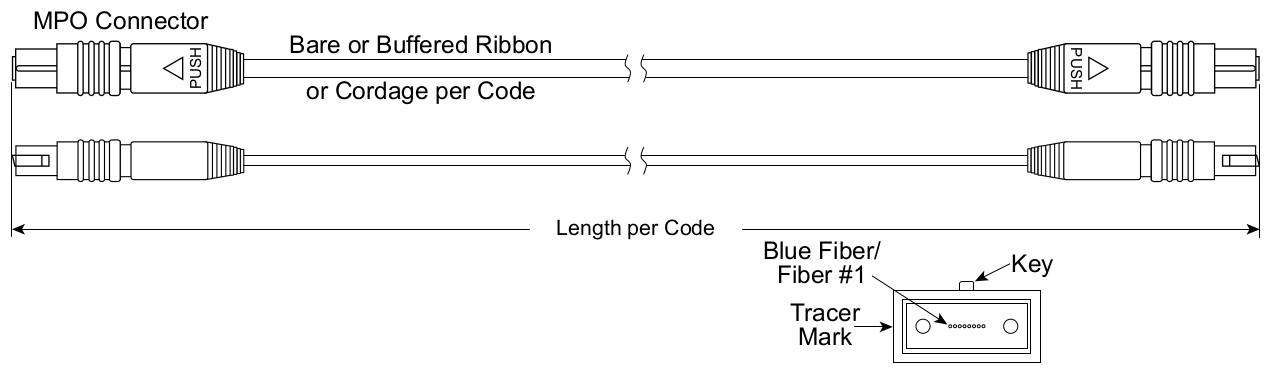

MPO Jumper

MPO Jumpers & Pigtails

MPO jumpers and pigtails provide high-density connections in a small footprint. Low loss single-mode jumpers deliver supe-rior loss performance for demanding, high-speed applications.

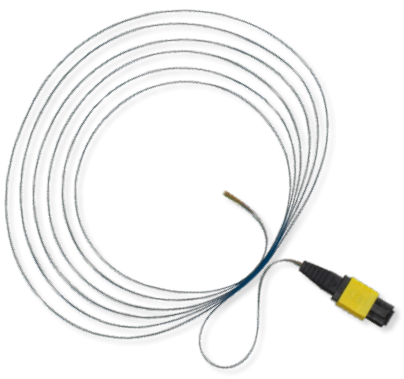

Low-Loss MPO 8-Fiber Jumper

MPO jumpers and pigtails provide high-density connections in a small footprint. Low loss single-mode jumpers deliver supe-rior loss performance for demanding, high-speed applications.



MPO Jumper Specifications
Connector Type Ferrule/Polish Loss (Typical) Loss (Max) Return Loss (Min)
MPO Single-Mode 8-Fiber APC 0.16 dB 0.35 dB 55 dB
MPO Multimode PC 0.10 dB 0.35 dB 20 dB
Note: Ordering information on back page.



MPO Jumper



MPO Jumper

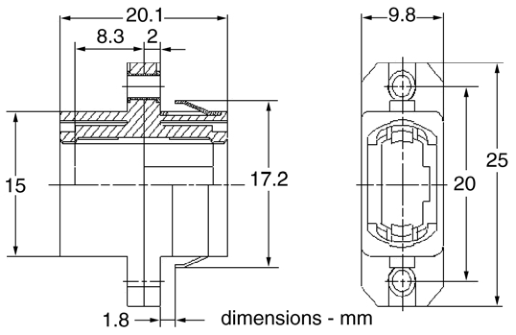

MPO Adapters

Lightera offers standard MPO Adapters, packaged individually or in bulk quantities of 100.



MPO Adapter Ordering Information
Description Comcode
MPO Adapter 300467073



User-added image

MPO Fanouts

Lightera MPO fanouts provide dependable, high-quality transitions from ribbon fibers or cables to individual fiber connection ports. MPO fanouts are available with up to 12 fibers featuring FC, SC, ST and LC connectors. These fanouts offer low insertion loss and reflectance, and are available in both ruggedized and bare ribbon formats.



MPO Jumper



MPO Fanout Specifications
Connector Type Ferrule/Polish Loss (Typical) Loss (Max) Return Loss (Min)
MPO Single-Mode APC 0.16 dB 0.35 dB 55 dB
Single Fiber SC and LC Single-Mode UPC 0.15 dB 0.30 dB 55 dB
Single Fiber SC and LC Single-Mode APC 0.15 dB 0.30 dB 65 dB
Note: Ordering information on back page.



MPO Jumper



Fiber Color Specification
Fiber Number (wire marker) Color
1 Blue
2 Orange
3 Green
4 Brown
5 Slate
6 White
7 Red
8 Black
9 Yellow
10 Violet
11 Rose
12 Aqua
Note: In multi-ribbon cables, each ribbon is individually numbered.



MPO Juper, Pigtail and Fanout Ordering Information
Examples It is critical to note what equipment the assembly is mating with in order to select the correct connector. Male connectors have pins and can not connect to another male connector. An angled polish connector should not be mated to a flat polish connector.
MPO12NA-21-RCM0X-2.5M – MPO, 12 fiber, No pins (female), polish: APC, # of connectors: 2, standard patchcord (1), bare ribbon cordage, fiber: MM – 50/125 [OM2], overall length: 2.5 meters
MPO8PA/MPO8NU-2X-RCWBK-12F – Conn A: MPO, 8 fiber, Pins (male), polish: APC, Conn B: MPO, 8 fiber, No pins (female), polish: PC, # of connectors: 2, hybrid patchcord (X), ribbon cordage PVC tight buffered, fiber: SM – AllWave® FLEX+ [G657.A2], overall length: 12 feet
MTP12PA/LCU-21-MBBPY-0.5/5M – Conn A: MTP, 12 fiber, Pins (male), polish: APC, Conn B: LC, polish: UPC, 2.0mm furcation, M-Pack® plenum Backbone cable ,fiber: SM – Blue Tiger, breakout length: 0.5 meter overall length (tip-to-tip): 5 meters
Syntax aaa bb c d / aaa bb c d – e f – gg h i j – lll / nnn u XC PE
aaa – Connectors MPO, MT, MTP, MPX, LC, SC, ST, FC, UNC, SCA, LCA
bb – Fiber Count 8, 12, 24
c – Gender P = Pins (make)
N = No Pins (female)
d – Polish U = Flat Polish
A = Angle Polish (8°)
Note all SM MPOs are angled, ALl MM MPOs are flat
e – Design 1 = Multifiber pigtail
2 = Multifiber jumper or 2.0 mm fanout
9 = 0.9 mm fanout
f – Assembly Type 1 = pigtail, jumper with same ends (ex. MPO12PU-MPO12NU), hybrid (multi-fiber to fanout (ex. MPO8NA-LCU)
L = Low Loss 0.35 dB
S = Super Low Loss 0.15 dB
X = different multi-fiber connectors (ex. MT12PU-MPONU)
gg – Cordage ADDs* RC = Bare Ribbon
MP = M-Pack® Interconnect Cordage
MB = M-Pack® Backbone Cable
RB = Rollable Ribbon R-Pack backbone – SM Only
RP = Rollable Ribbon R-Pack cordage – SM Only
MO = M-Pack IndoorOutdoor
h – Fiber Type 3 = LaserWave FLEX 300 [OM3]
5 = LaserWave FLEX 550 [OM4]
W = AllWave(R) Flex (G.657.A2)
F = OM4 non-BIMMF
D = EZ-Bend
i – Jacket Type* 0 = Bare Ribbon
D = Dual rate (UL 1666 riser and CPR)
H = LSZH IEC 60332-3C
P = Plenum
lll – Breakout Length If a hybrid (multifiber to single connector [LC, SC, etc], lll is the breakout length. Standard offering is 0.5 m. Max: 3 m.
If pigtail or multifiber-to-multifiber jumper, omit.
nnn – Length 001 – 999
u – Unit of Measure M = Meters (min. 1 m)
F = Feet (min. 1 ft)
XC Cross Fiber Pattern (optional)
PE Pulling Eye (optional)
Note M-Pack BAckbone Cable is only available with B Fiber (Blue-Tiger®)
Note * Available jacket types are based on the chosen cordage (or vice versa). See table for determination of cordage/jacket type.



MPO Jumper

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.

Trademark Notice and Disclaimer

Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
