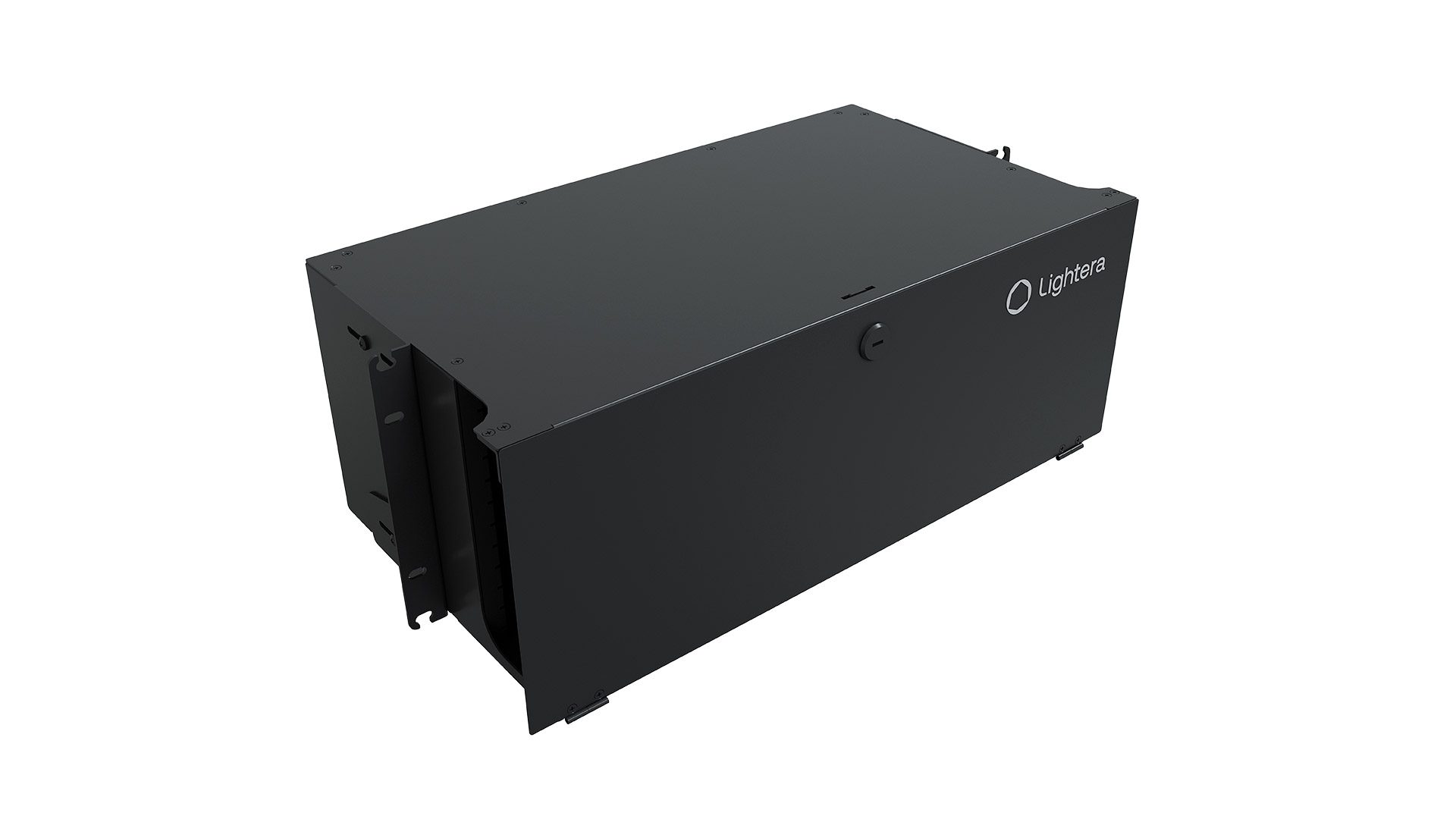

ODF TERAPATCH MASSIVE FUSION MODULE 4U 1728F – 12 X 144F

Module responsible for protecting single and mass splices, consisting of two main factory-assembled components:

ODF TARS FUSION 4U MODULE – Basic module – a module responsible for housing and protecting the optical splice trays for the transition between the incoming optical cable and the optical extensions (pigtails). Supplied with 12 trays with splice protectors.

Splice Tray Kit – A set of accessories for accommodating optical splices inside the DIO module, consisting of 12 splice trays for both mass and single splices. Each tray of the basic module must be assembled with a tray kit for the DIO to reach its maximum splice capacity.

Capacity for 1728 mass splices, 144 splices per trays in groups of 12.

Compatible with the 19" standard, it can manage up to 1,728 fibers (groups of 12) with mass splices or 864 fibers with single splices in a 4U height.

It features a splice and connection compartment, consisting of 12 aluminium sliding trays with front access. Each tray contains fusion splice supports in the appropriate quantity for the fusions to be performed.

The optical splicing and excess fiber storage areas are located inside the product, providing greater protection and security to the system.

It features a sliding tray system.

A steel front cover provides access to the splice/connection trays and allows cables to pass through the rack.

It provides direct termination by massive or single fusion using a single basic module.

It provides trays to be mounted one on top of the other to accommodate higher-capacity cables, providing high fiber density for expansion and scalability needs.

It provides fusions to be identified.

Durable and corrosion-protected product for indoor use under specified conditions (TIA-569).

All sliding trays are labeled.

The Solution supports configurations for mass or single splices.
