Descontinuado
Part no - 07144-01

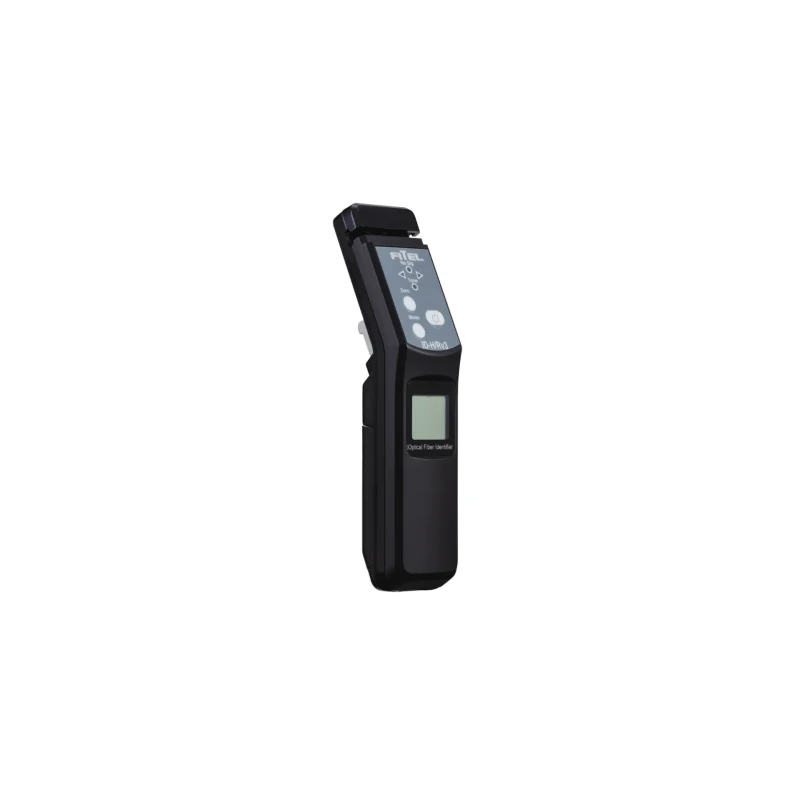

Optical Fiber Identifier ID-H/R v3 Advanced

Optical Fiber Identifier ID-H/R v3 Advanced

Optical Fiber Identifier ID-H/R v3 Advanced

Features

  • G.652 (SM), G.657 A1 (ITU R10) and G.657 A2 (ITU R7.5) can be identified.
  • Improved traffic direction recognition, even in brightly lit environments. 10 times increased sensitivity.
  • Enhanced sensitivity using the light receiving adjustment function.
  • The increased display functionality shows the communication light intensity in the optical fiber.
  • Wide dynamic range.
  • The brighter LED display provides improved clarity.
  • By replacing the optional PD head, G.657 B3 optical fiber (ITU R5) can also be identified.

Construction

Construction
Product Name Part Part Number Package Details
ID-H/R v3 Main unit AI21H Includes battery, strap and instruction manual
ID-H/R v3 Carrying case AI02H-001
(Option) PD head for BIF AI21H-017 For G.657 B3


Optical Fiber Identifier ID-H/R v3 Advanced

Specification

Specification
Applicable Fiber Up to SM12-fiber ribbon SM 250μm single fiber
 Up to 3mm Cordage (built-in only SM 250μm single fiber)
 SM 900μm tight buffer (Reference value)
 G.657 B3 Cordage (Use dedicated PD head)
Applicable Wavelength 900 to 1700nm 900 to 1700nm 900 to 1700nm 900 to 1700nm
Receiving Frequency 270Hz and 1kHz and 2kHz (Duty ratio 50 + 10%)
Modulation light
No modulation light
Communication light that continues
Measurement Range of Optical Power *1) 0 ～ ー 80dBm 0 ～ ー 80dBm 0 ～ ー 80dBm 0 ～ ー 80dBm
Maximum Level of Insertion Loss (typical) 1310nm 0.1dB 0.5dB 0.5dB 0.1dB
1550nm 1.0dB 2.0dB 2.0dB 0.1dB
1650nm 2.5dB 3.0dB 3.0dB 0.1dB
Average Minimum Detection Level (typical) *2) 1310nm -40dBm -30dBm -15dBm -15dBm
1550nm -50dBm -40dBm -15dBm -25dBm
1650nm -50dBm -40dBm -15dBm -25dBm
Indication For Traffic Signal or Tone Signal 【Traffic Signal＊3）】Direction LED illuminates + Intermittent buzzer sound + Displays an optical power measurement range on the LCD
【Tone Signal】Direction LED illuminates + Tone LED illuminates + Continuous buzzer sound + Displays an optical power measurement range on the LCD + Displayed frequency on the LCD
Operating Time 8 hours (Using Alkaline battery)
Storage Temperature -20 to 60°C (humidity 0 to 95%)
Operation Temperature -10 to 50°C (humidity 0 to 95%)
Size 40W X 65H X 163Dmm
Weight 170g (Including battery)
Note * 1) Duty ratio 50%
* 2) This specification is based on our optical fiber with our test method.
* 3) DO NOT disconnect or rewire based only on the traffic signal detection. Make sure to launch the tone signal before disconnecting or rewiring the fiber.

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.

Export Control Regulations

The products and/or technical information presented in this publication may be subject to the application of the Foreign Exchange and Foreign Trade Act and other related laws and regulations in Japan.

In addition, the Export Administration Regulations (EAR) of the United States may be applicable.

In cases where exporting or reexporting the products and/or technical information presented in this publication, customers are requested to follow the necessary procedures at their own responsibility and cost.

Please contact the Ministry of Economy, Trade and Industry of Japan or the Department of Commerce of the United States for details about procedures.
