PowerGuide® Loose Tube Fiber Optic Cables

Features

Proven all-dielectric loose tube construction

Immune to electromagnetic fields

Fast, one-step installation

Integrated torque-balanced aramid yarn strength elements

Superior cable strength and stability

Round cable profiles minimize wind and ice loading

Benefits

Eliminates the need for expensive cable shielding and grounding

Uses simple attachment hardware (no pre-installed messenger)

Outstanding cable performance, strength and stability

Reduced cable sag and tensile forces on towers and support hardware

Product Description

When you need a durable, high-performance cabling solution for your electrical power network or other aerial use, look to the PowerGuide family of loose tube fiber optic cables. Whether your application is long or short span, requires increased carrying capacity or involves high electric field space potentials, Lightera offers a PowerGuide cable to meet your needs. In fact, the unsurpassed optical performance, durability and reliability of our PowerGuide cables have placed them among the world’s leading, all-dielectric, self-supporting (ADSS) cables. Delivering seamless performance from the national power grid to your living room, the PowerGuide product line includes PowerGuide Double Jacket Cable, PowerGuide ShortSpan DT Cable and PowerGuide AccuTube®+ Rollable Ribbon (RR) ADSS Cable.

Why the PowerGuide ADSS Cables?

Each PowerGuide ADSS Cable design offers proven all-dielectric loose tube construction for outstanding performance, reliability and immunity to electromagnetic fields, eliminating the need for expensive cable shielding or grounding. In addition, these cables offer fast, one-step installation using simple attachment hardware (without a pre-installed messenger) and normally without interrupting electrical service.

PowerGuide Cables also feature integrated, torque-balanced aramid yarn strength elements for superior cable strength and stability. They also have a round cable profile that minimizes wind and ice loading for reduced cable sag and tensile forces on towers and support hardware.

Finally, all PowerGuide Cables are fully qualified in accordance with applicable Telcordia Technologies, EIA/TIA, IEEE and RDUP standards – your assurance of exceptional performance, reliability and value.

PowerGuide ADSS Cables

The matrix below outlines the key applications and span lengths for each PowerGuide cable design. Our technical staff is available to provide additional information and assist you in selecting the right cable for your fiber optic installation. For questions or assistance, please contact us at 1-888-fiberhelp (1-888-342-3743) USA or 1-770-798-5555 outside the USA.

PowerGuide Cable Applications
Cable	Fiber Counts	Span Lengths	Applications
PowerGuide Double Jacket	2 to 288	3,281 feet (1,000 meters or more)*	Aerial use (self-supporting) Long spans including electric transmission towers and river crossings Power transmission and distribution networks Direct use in ducts Aerial-to-duct transitions Electric field space potentials up to 12 kV
PowerGuide TR (Tracking Resistant)	2 to 288	Same as above	Same as above, except for electric field space potentials up to 25 kV
PowerGuide ShortSpan DT	2 to 144	Up to 1,150 feet (350 meters)*	Aerial use (self-supporting) Short spans (including distribution networks) Direct use in ducts Aerial-to-duct transitions Aerial-to-underground installations
PowerGuide AccuTube+ Rollable Ribbon (RR) ADSS Cable	144 to 864	Up to 1,000 feet (300 meters)*	Aerial use (self-supporting) High-growth and high-bandwidth applications Easy access to individual fibers for mid-span splice access Transmission and distribution networks
* Exact span lengths depend on loading conditions, fiber count and clearance requirements.

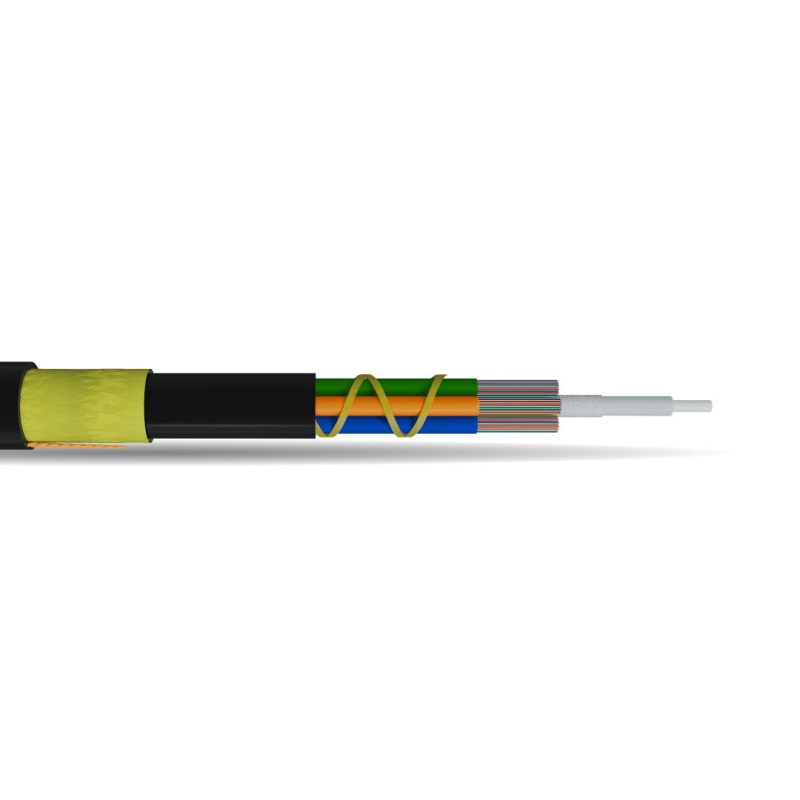

PowerGuide® AccuTube®+ Rollable Ribbon (RR) ADSS Cable
Features: Outstanding optical performance, durability and field reliability Rollable ribbon structure helps facilitate efficient mass fusion splicing and easy access to individual fibers for mid-span splice access Loose tube design enables rugged installation performance and easier ribbon access versus alternative rollable ribbon cable designs Excellent performance for span lengths up to 1,000 feet (300 meters)* depending on sag and loading conditions
Benefits: Outstanding carrying capacity for ultra-high-density applications Rugged loose tube design features Lightera rollable ribbon technology in individual polypropylene buffer tubes Completely gel-free design Easily identifiable ribbon print marking using blocks and bars Meets the mechanical and optical requirements of IEEE-1222-2019, Telcordia GR-20 Issue 4 and ANSI/ICEA S-87-640 for outside plant (OSP) fiber optic cables 144-864 fiber counts available
Design: The PowerGuide AccuTube+ Rollable Ribbon (RR) ADSS Cable is a totally gel free, double jacket, all dielectric self supporting cable featuring 144 fibers up to 864 optical fibers in a ribbon in loose tube cable design. Lightera combines its leading ADSS cable design with its field proven rollable ribbon technology offering mass fusion ribbon splicing. To form these ribbons, individual 250 μm fibers are partially bonded to each other at predetermined points. These ribbons are placed into a totally dry and flexible buffer tube to construct a loose tube cable construction suitable for self-support aerial installations. Aramid yarns in the cable jacket as strength members allows potential for increased cable spans in a lighter and smaller cable construction.

PowerGuide® AccuTube®+ Rollable Ribbon (RR) ADSS Cable

Features:

Outstanding optical performance, durability and field reliability
Rollable ribbon structure helps facilitate efficient mass fusion splicing and easy access to individual fibers for mid-span splice access
Loose tube design enables rugged installation performance and easier ribbon access versus alternative rollable ribbon cable designs
Excellent performance for span lengths up to 1,000 feet (300 meters)* depending on sag and loading conditions

Benefits:

Outstanding carrying capacity for ultra-high-density applications
Rugged loose tube design features Lightera rollable ribbon technology in individual polypropylene buffer tubes
Completely gel-free design
Easily identifiable ribbon print marking using blocks and bars
Meets the mechanical and optical requirements of IEEE-1222-2019, Telcordia GR-20 Issue 4 and ANSI/ICEA S-87-640 for outside plant (OSP) fiber optic cables
144-864 fiber counts available

Design:

The PowerGuide AccuTube+ Rollable Ribbon (RR) ADSS Cable is a totally gel free, double jacket, all dielectric self supporting cable featuring 144 fibers up to 864 optical fibers in a ribbon in loose tube cable design. Lightera combines its leading ADSS cable design with its field proven rollable ribbon technology offering mass fusion ribbon splicing. To form these ribbons, individual 250 μm fibers are partially bonded to each other at predetermined points. These ribbons are placed into a totally dry and flexible buffer tube to construct a loose tube cable construction suitable for self-support aerial installations. Aramid yarns in the cable jacket as strength members allows potential for increased cable spans in a lighter and smaller cable construction.

Why the PowerGuide AccuTube+ RR ADSS Cable?

With up to 864 fibers in a single cable, the PowerGuide AccuTube+ RR ADSS Cable offers exceptional carrying capacity for high-growth, high-bandwidth applications. This cable’s rollable ribbon design helps users achieve highly efficient and cost-effective mass fusion splicing along with easy individual fiber breakout.

The PowerGuide AccuTube+ RR ADSS Cable features the same high performance and reliability as it’s flat ribbon gel filled counterparts with the added benefit of improved labor costs and splicing times by removing the gel. The PowerGuide AccuTube+ RR ADSS offers significantly lower overall cable weight, resulting in easier handling and lower operating tensions on poles. This reduction in cable weight and operating tensions may enable the use of less costly, lighter duty attachment hardware.

PowerGuide® ShortSpan DT Cable
Description: PowerGuide ShortSpan DT Cable offers an outstanding, totally gel-free solution for short aerial cable spans ranging up to 1,150 feet (350 meters)*, including distribution networks and duct installations. Featuring one of the world’s smallest ADSS cable diameters, ShortSpan DT Cable is lightweight and easy to handle, saving time and money on installation. This cable’s compact size and small bend radius make it easy to use in aerial-to-underground installations.
Features: Fiber counts to 144 Totally gel-free cable design Small nominal cable diameter and bend radius Smaller round profile further minimizes wind and ice loading Single cable diameter for 2 to 60 fibers simplifies hardware selection and splicing Broad range of fiber types
Benefits: Excellent short-span capability Effective, economical alternative for short spans Lightweight and easy to handle and install Single jacket for fast, convenient cable preparation RDUP listed
Design: Our proven loose tube design is at the heart of our PowerGuide ShortSpan DT Cable. The optical fibers are placed within color-coded, gel-free buffer tubes to protect the fibers from mechanical and environmental forces. The buffer tubes are then stranded around a dielectric central member using the reverse oscillating lay (ROL) stranding technique. Unlike other methods, ROL makes it easy to “untwist” the buffer tubes and gain quick, mid-span access. Next, DryBlock water-blocking material is applied, and aramid strength elements are placed over the cable core. In the final step, a robust polyethylene outer jacket is applied to complete the construction of a light-weight, durable cable that is easy to handle and install.

PowerGuide® ShortSpan DT Cable

Description:

PowerGuide ShortSpan DT Cable offers an outstanding, totally gel-free solution for short aerial cable spans ranging up to 1,150 feet (350 meters)*, including distribution networks and duct installations. Featuring one of the world’s smallest ADSS cable diameters, ShortSpan DT Cable is lightweight and easy to handle, saving time and money on installation. This cable’s compact size and small bend radius make it easy to use in aerial-to-underground installations.

Features:

Fiber counts to 144
Totally gel-free cable design
Small nominal cable diameter and bend radius
Smaller round profile further minimizes wind and ice loading
Single cable diameter for 2 to 60 fibers simplifies hardware selection and splicing
Broad range of fiber types

Benefits:

Excellent short-span capability
Effective, economical alternative for short spans
Lightweight and easy to handle and install
Single jacket for fast, convenient cable preparation
RDUP listed

Design:

Our proven loose tube design is at the heart of our PowerGuide ShortSpan DT Cable. The optical fibers are placed within color-coded, gel-free buffer tubes to protect the fibers from mechanical and environmental forces. The buffer tubes are then stranded around a dielectric central member using the reverse oscillating lay (ROL) stranding technique. Unlike other methods, ROL makes it easy to “untwist” the buffer tubes and gain quick, mid-span access. Next, DryBlock water-blocking material is applied, and aramid strength elements are placed over the cable core. In the final step, a robust polyethylene outer jacket is applied to complete the construction of a light-weight, durable cable that is easy to handle and install.

PowerGuide® Double Jacket Cable
Description: PowerGuide Double Jacket Cable is your prime cabling solution for high-performance aerial applications, including power transmission and distribution networks, with excellent long-span capability up to 3,281 feet (1,000 meters or more)*. Each PowerGuide Cable is custom designed to ensure exceptional long-term reliability and performance.
Features: Fiber counts to 288 Custom engineered per application Single cable diameter for 2 to 60 fibers simplifies hardware selection and splicing Proven all-dielectric loose tube construction Special tracking-resistant sheath available for high field space potentials (see PowerGuide Tracking Resistant cable above) Broad range of fiber types
Benefits: Outstanding optical performance, durability and field reliability Excellent long-span capability Fast, one-step installation for valuable time and cost savings Easily strippable sheath for quick, convenient cable preparation RDUP listed
Design: Our highly reliable, field-proven loose tube design lies at the core of each PowerGuide Double Jacket Cable. In this design, the optical fibers are placed within color-coded, gel-filled buffer tubes to protect the fibers from external forces. The buffer tubes are then stranded around a dielectric central member using the reverse oscillating lay (ROL) stranding technique for fast, mid-span fiber access. DryBlock water-blocking material is then applied to the cable core to prevent water migration. In the final steps, a carefully determined number of aramid strength elements are placed between inner and outer polyethylene jackets to achieve the performance needed for your application. Using a comprehensive software program, our engineers can analyze electric field space potentials to determine the appropriate outer jacket material and provide recommended cable attachment locations for your application. This custom design ensures stable optical performance over a wide range of loads and temperatures, and assures a long cable life.
PowerGuide Tracking Resistant (TR) Cable: Because ADSS cables are often installed near energized power conductors, we offer two PowerGuide outer jacket materials. For electric field space potentials up to 12 kV, PowerGuide Double Jacket Cable features a polyethylene sheath. For space potentials up to 25 kV, PowerGuide Tracking Resistant Double Jacket Cable features a specially formulated jacket that resists tracking (dry band arcing). Contact us for a complete system analysis to determine which PowerGuide cable design to employ.

PowerGuide® Double Jacket Cable

Description:

PowerGuide Double Jacket Cable is your prime cabling solution for high-performance aerial applications, including power transmission and distribution networks, with excellent long-span capability up to 3,281 feet (1,000 meters or more)*. Each PowerGuide Cable is custom designed to ensure exceptional long-term reliability and performance.

Features:

Fiber counts to 288
Custom engineered per application
Single cable diameter for 2 to 60 fibers simplifies hardware selection and splicing
Proven all-dielectric loose tube construction
Special tracking-resistant sheath available for high field space potentials (see PowerGuide Tracking Resistant cable above)
Broad range of fiber types

Benefits:

Outstanding optical performance, durability and field reliability
Excellent long-span capability
Fast, one-step installation for valuable time and cost savings
Easily strippable sheath for quick, convenient cable preparation
RDUP listed

Design:

Our highly reliable, field-proven loose tube design lies at the core of each PowerGuide Double Jacket Cable. In this design, the optical fibers are placed within color-coded, gel-filled buffer tubes to protect the fibers from external forces. The buffer tubes are then stranded around a dielectric central member using the reverse oscillating lay (ROL) stranding technique for fast, mid-span fiber access. DryBlock water-blocking material is then applied to the cable core to prevent water migration. In the final steps, a carefully determined number of aramid strength elements are placed between inner and outer polyethylene jackets to achieve the performance needed for your application. Using a comprehensive software program, our engineers can analyze electric field space potentials to determine the appropriate outer jacket material and provide recommended cable attachment locations for your application. This custom design ensures stable optical performance over a wide range of loads and temperatures, and assures a long cable life.

PowerGuide Tracking Resistant (TR) Cable:

Because ADSS cables are often installed near energized power conductors, we offer two PowerGuide outer jacket materials. For electric field space potentials up to 12 kV, PowerGuide Double Jacket Cable features a polyethylene sheath. For space potentials up to 25 kV, PowerGuide Tracking Resistant Double Jacket Cable features a specially formulated jacket that resists tracking (dry band arcing). Contact us for a complete system analysis to determine which PowerGuide cable design to employ.

Fiber Type²
Single-Mode
Single-Mode Optical Fiber	Fiber (S1)	Fiber (S2)	Fiber (SF)	Fiber Standards	Wavelengths (nm)	*Typical Attenuation (dB/km)**	Maximum Cable on Reel Attenuation (dB/km)
AllWave® ZWP Optical Fiber	3	B	E	G.652.D	1310/1385/1550	–	0.35/0.31/0.25
AllWave+ ZWP Optical Fiber	3	G	E	G.652.D/G.657.A1	1310/1385/1550	–	0.35/0.31/0.25
AllWave FLEX ZWP Optical Fiber	5	B	E	G.652.D/G.657.A1	1310/1385/1550	–	0.35/0.31/0.25
AllWave Low Loss Optical Fiber	3	A	E	G.652.D	1310/1385/1550	0.33/0.31/0.19	0.35/0.31/0.22
AllWave One Optical Fiber	3	F	E	G.652.D/G.657.A1	1310/1385/1550	0.33/0.31/0.19	0.35/0.31/0.22
TrueWave® RS LWP Optical Fiber	6	2	6	G.655.C & D	1550	0.21	0.25
TeraWave® Optical Fiber	6	2	R	G.654.B	1550	0.20	0.25
TeraWave ULL Optical Fiber	6	9	R	G.654.B	1550	0.18	0.22
Multimode
Multimode Optical Fiber	Fiber (S1)	Fiber (S2)	Fiber (SF)	Fiber Standards	Wavelengths (nm)	*Typical Attenuation (dB/km)**	Maximum Cable on Reel Attenuation (dB/km)
62.5 µm Optical Fiber	R	U	9	OM1 62.5 µm	850/1300	–	3.4/1.0
LaserWave® FLEX 300 Optical Fiber	L	F	2	OM3 50 µm	850/1300	–	2.4/0.7
LaserWave FLEX 550 Optical Fiber	L	H	2	OM4 50 µm	850/1300	–	2.4/0.7

PowerGuide ADSS Loose Tube Cable Ordering Information
Example	AT-3BE27DT-NNN- E1, E2, E3, E4¹
Part Number	AT– S1 S2 SF S3 S4 S5 S6 – N N N – [E1] [E2] [E3] [E4] ¹
S1	Fiber Selection See S1 Fiber Table above
S2	Fiber Transmission Performance See S2 Fiber Table above
SF	Fiber Type² See SF Fiber Table above
S3	Sheath Construction 2 = Double Jacket ADSS 1 = Single Jacket ADSS
S4	Tensile Load 7 = PowerGuide Double Jacket, PowerGuide TR, PowerGuide ShortSpan DT and PowerGuide AccuTube+ RR
S5	Core Type D = DryBlock® 5 = Gel-Free Loose Tube RR in 4.5 mm Tubes (432 Fiber) 5 = Gel-Free Loose Tube RR in 6.0 mm Tubes (864 Fiber)
S6	Fibers per Tube 2 = 2 Fibers 4 = 4 Fibers 6 = 6 Fibers 8 = 8 Fibers N = 10 Fibers T = 72 Fibers/Tube (432 Fiber) T = 144 Fibers/Tube (864 Fiber)
NNN	Fiber Count = 002-288
Custom/Special	[E1]* = Outer Jacket [E2][E3][E4]* = Dielectric Sheath Strength Elements
Note	¹ Part Number shown is for a PowerGuide ADSS Cable with standard AllWave ZWP attenuation and standard cable print. Maximum AllWave ZWP attenuation: 0.35/0.31/0.27/0.25/0.27 dB/km @ 1310/1385/1490/1550/1625 nm. Standard Print, example for PowerGuide ADSS Cable: LIGHTERA OPTICAL CABLE AT-3BE27DT-NNN-E1, E2, E3, E4 [MM-YY] [HANDSET SYMBOL] [NNN] F [SERIAL #] ² Contact Lightera Order Management for information on other cable variations, including additional fiber types, attenuation, and custom cable print. Note: For more information regarding typical attenuation as well as attenuation parameters on Link Design Value (LDV) (Maximum end-to-end attenuation over a concatenated span), please see Lightera Application Note AN-111 which can be downloaded at www.lightera.com or contact your Lightera representative. * Custom/Special: Consult with us regarding your application, span lengths and loading conditions to complete the custom design and part number of your sheath strength system. For PowerGuide Double Jacket, PowerGuide Tracking Resistant and PowerGuide AccuTube+ RR Cables: [E1][E2][E3][E4] Outer Jacket [E1] and Dielectric Sheath Strength Elements [E2][E3][E4]* For PowerGuide ShortSpan DT Cable [C][M][E][A] or [C][L][G][A] Outer Jacket [C] and Dielectric Sheath Strength Elements [M, E, A]* or [L, G, A]*

PowerGuide Double Jacket, Tracking Resistant and ShortSpan DT Cable Performance Data
Parameters	Specifications	Typical Test Results	Test Performed
Low and High Temperature Band	4 Turns @ -30 °C and +60 °C	Complies at 6 Turns @ -40 °C & +70 °C	FOTP-37
Impact Resistance	25 Impacts	Complies at 100 Impacts	FOTP-25
Compressive Strength	≥ 220 N/cm	≥ 220 N/cm	FOTP-41
Tensile Strength of Cable	Custom design tensile strength variable based on application
Cable Twist	10 Cycles	Complies at 100 Cycles	FOTP-85
Cable Cyclic Flex	25 Cycles	Complies at 100 Cycles	FOTP-104
Cable Freezing	No Attenuation Change	No Attenuation Change	FOTP-98
Water Penetration	No Leakage	No Leakage	FOTP-82
Filling Compound Flow	No Flow @ 80 °C	No Flow @ 80 °C	FOTP-81
Temperature Cycling	Operation -40 ºC to +70 ºC Installation -30 ºC to +70 ºC Storage/Shipping -40 ºC to +75 ºC	Operation -40 ºC to +70 ºC (-60 ºC to +70 ºC) Available on request Installation -30 ºC to +70 ºC Storage/Shipping -40 ºC to +75 ºC	FOTP-3
Cable Aging	+85 °C (168 hour exposure)	+85 °C (168 hour exposure)	FOTP-3
High Frequency (Aeolian) Vibration	100 Million Vibration Cycle	No Mechanical Damage to Cable or Hardware	IEEE P1222
Low Frequency (Galloping) Vibration	100 Thousand Vibration Cycles	No Mechanical Damage to Cable or Hardware	IEEE P1222
Electrical Testing	to 12 kV space potential for PowerGuide Double Jacket	No adverse effects to polyethylene jacket	IEEE P1222
Electrical Testing	to 25 kV space potential for PowerGuide Tracking Resistant	No adverse effects to specially formulated jacket	IEEE P1222

Installation and Hardware

PowerGuide Cables are compatible with a complete range of hardware that can accommodate diverse installation conditions. We are fully equipped to serve as your hardware provider and be your “one-stop-shopping” service. Or, if you prefer, you may purchase the approved hardware separately.

Quality

We’re an ISO 9001 and ISO 14001 certified manufacturer that adheres to strict quality control requirements for product design, development, manufacturing and business operations. Product performance is verified on each product manufactured prior to shipment, ensuring many years of reliable performance.

Services

Lightera provides you with an experienced, professional staff to meet your cable design and installation needs. Our engineering staff offers support ranging from tutorials on the basics of fiber optics to product design and selection. Our technical services staff provides rapid on-site assistance and valuable “hands-on” training in proper cable handling, pole attachment hardware selection and testing and installation methods.

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.

Trademark Notice and Disclaimer

Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.

BEAD Disclaimer

Purchase orders must clearly identify specific products requiring compliance with BABAA for BEAD requirements. BABAA for BEAD compliant products will have unique part numbers to distinguish them from non-compliant versions. For details, refer to the Lightera list of BABAA for BEAD Compliant Products listed at https://www.lightera.com/babaa-for-bead-compliant-products/

Customer is required to comply with all BABAA for BEAD requirements applicable to it. Lightera will, at its sole discretion, fulfill orders requested by Customer and will not be liable for errors in product selection, delivery or warehousing which result in the installation of non-BABAA for BEAD compliant products into BEAD funded infrastructure projects.
