Application Optimized for Aerial- and Duct Installation with fiber counts up to 144 fibers
Part no -
07060-01
PowerGuide®200 SkyLight – 6 Element
All-Dielectric, Self Supporting (ADSS) Aerial Loose Tube Fiber Optic Cable Dry core design PowerGuide®200 SkyLight
All-Dielectric, Self Supporting (ADSS) Aerial Loose Tube Fiber Optic Cable Dry core design PowerGuide®200 SkyLight
Application
Design
- Optical fibers
- Gel-filled buffer tubes
- Non-metallic central member
- Water blocking threads
- Non-metallic aramid strength elements
- Ripcords
- Outer HDPE-jacket
Benefits
- Excellent, cost- effective option for short aerial cable spans
- Outstanding optical performance, durability and field reliability
- Fast, one-step installation for valuable time and cost savings
- Small cable diameter and bend radius for easy deployment in aerial- to- underground installation
- Easily strippable sheath for quick, convenient cable preparation

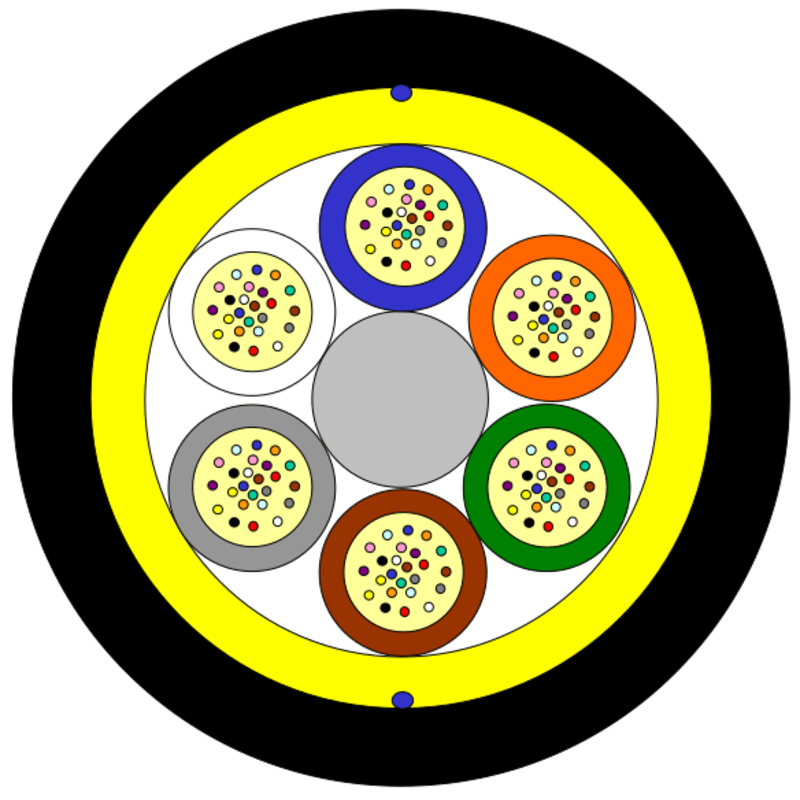

Version illustrated is the 144 Fiber 6 Element Cable
Product Specification
| Product Specification | |||||
|---|---|---|---|---|---|
| Fiber Count | Tubes | Core Design | Outer Diameter [mm] | Cable Weight [kg/km] | AT-Code** |
| 96 | 4 (24F) | 1+6 (2 Fillers*) | 10.4 | 90 | AT-[][][]17UF-096-CNGA |
| 120 | 5 (24F) | 1+6 (1 Filler*) | 10.4 | 90 | AT-[][][]17UF-120-CNGA |
| 144 | 6 (24F) | 1+6 | 10.4 | 90 | AT-[][][]17UF-144-CNGA |
| This table shows nominal diameter and weight values which may differ in shipments. | |||||
| *Fillers are natural colored. | |||||
| **Please refer to the Lightera AT- Code. The blanks specify the fiber type. | |||||
Identification Tube Color Code
| Identification Tube Color Code | |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Grey |
| 6 | White |
Identification Fiber Color Code
| Identification Fiber Color Code | ||
|---|---|---|
| 1 | Blue | |
| 2 | Orange | |
| 3 | Green | |
| 4 | Brown | |
| 5 | Grey | |
| 6 | White | |
| 7 | Red | |
| 8 | Black | |
| 9 | Yellow | |
| 10 | Violet | |
| 11 | Rose | |
| 12 | Aqua | |
| 13 | Blue* | |
| 14 | Orange* | |
| 15 | Green* | |
| 16 | Brown* | |
| 17 | Grey* | |
| 18 | White* | |
| 19 | Red* | |
| 20 | Nature | |
| 21 | Yellow* | |
| 22 | Violet* | |
| 23 | Rose* | |
| 24 | Aqua* | |
| Note | * Black ring | |
| Note | Alternative tube and fiber color code available on request. | |
Sheath Marking
Lightera OPTICAL ADSS CABLE [ID] [MM/YYYY] [Handset Sign] xxxF [Meter Marking]
Alternative sheath printing available on request.
In case of order the exact sheath printing text will be clarified with the customer.
Shipping Information
| Shipping Information | ||||
|---|---|---|---|---|
| Cable Length | Drum Diameter | Drum Width | Shipping Weight Without Lagging | Shipping Weight With Lagging |
| 2 Km | 1050 mm | 790 mm | 240 kg | 260 kg |
| 4 Km | 1250 mm | 790 mm | 440 kg | 480 kg |
| 6 Km | 1600 mm | 1055 mm | 670 kg | 730 kg |
| 8 Km | 1600 mm | 1055 mm | 850 kg | 910 kg |
| The shipping information are given for one-way reels. Reusable reels are available on request. | ||||
Temperatures (IEC 60794-1-22-F1)
| Temperatures (IEC 60794-1-22-F1) | |
|---|---|
| Operation | -40°C to +70°C |
| Installation | -15°C to +60°C |
| Storage/shipping | -40°C to +70°C |
Sag and Tension Calculation AT-[ ][ ][ ]17UF-144-CNGA
| Sag and Tension Calculation AT-[ ][ ][ ]17UF-144-CNGA | |||
|---|---|---|---|
| Conditions | NESC Light Loading | NESC Medium Loading | NESC Heavy Loading |
| Ice Thickness | 0 mm | 6.4 mm | 12.7 mm |
| Wind Pressure | 431 N/m² (95.5 km/h) | 192 N/m² (63.6 km/h) | 192 N/m2 (63.6 km/h) |
| Low Temperature | -1 °C | -9.4 °C | -17.8 °C |
| Safety Factor | 0.73 N/m | 2.92 N/m | 4.38 N/m |
| Tension @ Maximum Span for 1,0 % Installation Sag | |||
| Maximum Span | 150 m | 100 m | 60 m |
| MRCL (Maximum Rated Cable Load) | 3500 N | 3500 N | 3500 N |
| MIT (Maximum Installation Tension) | 1500 N | 950 N | 550 N |
| Installation Temperature | 23 °C | 23 °C | 23 °C |
| Cable Modulus | 940.3 kg/mm² | 940.3 kg/mm² | 940.3 kg/mm² |
| CTE (C-1) | 1.24E- 05 | 1.24E- 05 | 1.24E- 05 |
Application
Application Optimized for Aerial- and Duct Installation with fiber counts up to 144 fibers
Design
- Optical fibers
- Gel-filled buffer tubes
- Non-metallic central member
- Water blocking threads
- Non-metallic aramid strength elements
- Ripcords
- Outer HDPE-jacket
Benefits
- Excellent, cost- effective option for short aerial cable spans
- Outstanding optical performance, durability and field reliability
- Fast, one-step installation for valuable time and cost savings
- Small cable diameter and bend radius for easy deployment in aerial- to- underground installation
- Easily strippable sheath for quick, convenient cable preparation
Version illustrated is the 144 Fiber 6 Element Cable
Product Specification
| Product Specification | |||||
|---|---|---|---|---|---|
| Fiber Count | Tubes | Core Design | Outer Diameter [mm] | Cable Weight [kg/km] | AT-Code** |
| 96 | 4 (24F) | 1+6 (2 Fillers*) | 10.4 | 90 | AT-[][][]17UF-096-CNGA |
| 120 | 5 (24F) | 1+6 (1 Filler*) | 10.4 | 90 | AT-[][][]17UF-120-CNGA |
| 144 | 6 (24F) | 1+6 | 10.4 | 90 | AT-[][][]17UF-144-CNGA |
| This table shows nominal diameter and weight values which may differ in shipments. | |||||
| *Fillers are natural colored. | |||||
| **Please refer to the Lightera AT- Code. The blanks specify the fiber type. | |||||
Identification Tube Color Code
| Identification Tube Color Code | |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Grey |
| 6 | White |
Identification Fiber Color Code
| Identification Fiber Color Code | ||
|---|---|---|
| 1 | Blue | |
| 2 | Orange | |
| 3 | Green | |
| 4 | Brown | |
| 5 | Grey | |
| 6 | White | |
| 7 | Red | |
| 8 | Black | |
| 9 | Yellow | |
| 10 | Violet | |
| 11 | Rose | |
| 12 | Aqua | |
| 13 | Blue* | |
| 14 | Orange* | |
| 15 | Green* | |
| 16 | Brown* | |
| 17 | Grey* | |
| 18 | White* | |
| 19 | Red* | |
| 20 | Nature | |
| 21 | Yellow* | |
| 22 | Violet* | |
| 23 | Rose* | |
| 24 | Aqua* | |
| Note | * Black ring | |
| Note | Alternative tube and fiber color code available on request. | |
Sheath Marking
Lightera OPTICAL ADSS CABLE [ID] [MM/YYYY] [Handset Sign] xxxF [Meter Marking]
Alternative sheath printing available on request.
In case of order the exact sheath printing text will be clarified with the customer.
Shipping Information
| Shipping Information | ||||
|---|---|---|---|---|
| Cable Length | Drum Diameter | Drum Width | Shipping Weight Without Lagging | Shipping Weight With Lagging |
| 2 Km | 1050 mm | 790 mm | 240 kg | 260 kg |
| 4 Km | 1250 mm | 790 mm | 440 kg | 480 kg |
| 6 Km | 1600 mm | 1055 mm | 670 kg | 730 kg |
| 8 Km | 1600 mm | 1055 mm | 850 kg | 910 kg |
| The shipping information are given for one-way reels. Reusable reels are available on request. | ||||
Temperatures (IEC 60794-1-22-F1)
| Temperatures (IEC 60794-1-22-F1) | |
|---|---|
| Operation | -40°C to +70°C |
| Installation | -15°C to +60°C |
| Storage/shipping | -40°C to +70°C |
Sag and Tension Calculation AT-[ ][ ][ ]17UF-144-CNGA
| Sag and Tension Calculation AT-[ ][ ][ ]17UF-144-CNGA | |||
|---|---|---|---|
| Conditions | NESC Light Loading | NESC Medium Loading | NESC Heavy Loading |
| Ice Thickness | 0 mm | 6.4 mm | 12.7 mm |
| Wind Pressure | 431 N/m² (95.5 km/h) | 192 N/m² (63.6 km/h) | 192 N/m2 (63.6 km/h) |
| Low Temperature | -1 °C | -9.4 °C | -17.8 °C |
| Safety Factor | 0.73 N/m | 2.92 N/m | 4.38 N/m |
| Tension @ Maximum Span for 1,0 % Installation Sag | |||
| Maximum Span | 150 m | 100 m | 60 m |
| MRCL (Maximum Rated Cable Load) | 3500 N | 3500 N | 3500 N |
| MIT (Maximum Installation Tension) | 1500 N | 950 N | 550 N |
| Installation Temperature | 23 °C | 23 °C | 23 °C |
| Cable Modulus | 940.3 kg/mm² | 940.3 kg/mm² | 940.3 kg/mm² |
| CTE (C-1) | 1.24E- 05 | 1.24E- 05 | 1.24E- 05 |
Application
Application Optimized for Aerial- and Duct Installation with fiber counts up to 144 fibers
Design
- Optical fibers
- Gel-filled buffer tubes
- Non-metallic central member
- Water blocking threads
- Non-metallic aramid strength elements
- Ripcords
- Outer HDPE-jacket
Benefits
- Excellent, cost- effective option for short aerial cable spans
- Outstanding optical performance, durability and field reliability
- Fast, one-step installation for valuable time and cost savings
- Small cable diameter and bend radius for easy deployment in aerial- to- underground installation
- Easily strippable sheath for quick, convenient cable preparation
Version illustrated is the 144 Fiber 6 Element Cable
Sheath Marking
Lightera OPTICAL ADSS CABLE [ID] [MM/YYYY] [Handset Sign] xxxF [Meter Marking]
Alternative sheath printing available on request.
In case of order the exact sheath printing text will be clarified with the customer.
Application
Application Optimized for Aerial- and Duct Installation with fiber counts up to 144 fibers
Design
- Optical fibers
- Gel-filled buffer tubes
- Non-metallic central member
- Water blocking threads
- Non-metallic aramid strength elements
- Ripcords
- Outer HDPE-jacket
Benefits
- Excellent, cost- effective option for short aerial cable spans
- Outstanding optical performance, durability and field reliability
- Fast, one-step installation for valuable time and cost savings
- Small cable diameter and bend radius for easy deployment in aerial- to- underground installation
- Easily strippable sheath for quick, convenient cable preparation
Version illustrated is the 144 Fiber 6 Element Cable
Sheath Marking
Lightera OPTICAL ADSS CABLE [ID] [MM/YYYY] [Handset Sign] xxxF [Meter Marking]
Alternative sheath printing available on request.
In case of order the exact sheath printing text will be clarified with the customer.
Tangent and Suspension Supports
- Typically used in small line angle (
- Provides vertical support, not designed to support cable tension
- Multiple types depending span length and application
- Allows cable slippage during imbalanced load situations
Vibration Dampers
- ADSS cables can experience Aeolian vibration under certain circumstances
- Circumstances conducive to Aeolian vibration
- Laminar wind flow, Wide open spaces, Light winds, High tensions
- Vibration dampers minimize the effects of this vibration
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Application
Application Optimized for Aerial- and Duct Installation with fiber counts up to 144 fibers
Design
- Optical fibers
- Gel-filled buffer tubes
- Non-metallic central member
- Water blocking threads
- Non-metallic aramid strength elements
- Ripcords
- Outer HDPE-jacket
Benefits
- Excellent, cost- effective option for short aerial cable spans
- Outstanding optical performance, durability and field reliability
- Fast, one-step installation for valuable time and cost savings
- Small cable diameter and bend radius for easy deployment in aerial- to- underground installation
- Easily strippable sheath for quick, convenient cable preparation
Version illustrated is the 144 Fiber 6 Element Cable
Sheath Marking
Lightera OPTICAL ADSS CABLE [ID] [MM/YYYY] [Handset Sign] xxxF [Meter Marking]
Alternative sheath printing available on request.
In case of order the exact sheath printing text will be clarified with the customer.
Dead End Assembly
- Used whenever a cable should not slip
- Cable start and end points
- Where line angles exceed 20°
- Road, river, railroad crossings
- Closure locations
- Different types available dependent upon cable design and application
- Most attachment hardware is used with 5/8" pole line hardware
Tangent and Suspension Supports
- Typically used in small line angle (
- Provides vertical support, not designed to support cable tension
- Multiple types depending span length and application
- Allows cable slippage during imbalanced load situations
Vibration Dampers
- ADSS cables can experience Aeolian vibration under certain circumstances
- Circumstances conducive to Aeolian vibration
- Laminar wind flow, Wide open spaces, Light winds, High tensions
- Vibration dampers minimize the effects of this vibration
Installation Document References
- IP 014 PowerGuide® Installation
- IP 014A PowerGuide® ADSS CABLE Installation Guideline Distribution Line Applications
- IP 006 PowerGuide® Sheath Removal
- IP 017 PowerGuide® Hardware Installation
- AN-101 Maximum Rated Cable Loads & Minimum Bending Diameter
- AN-203 Space Potential Calculation for PowerGuide® ADSS Cable
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Compare products and choose the best one
Compare features, sizes, models to find the perfect option for you
