| Product Specifications | |
|---|---|

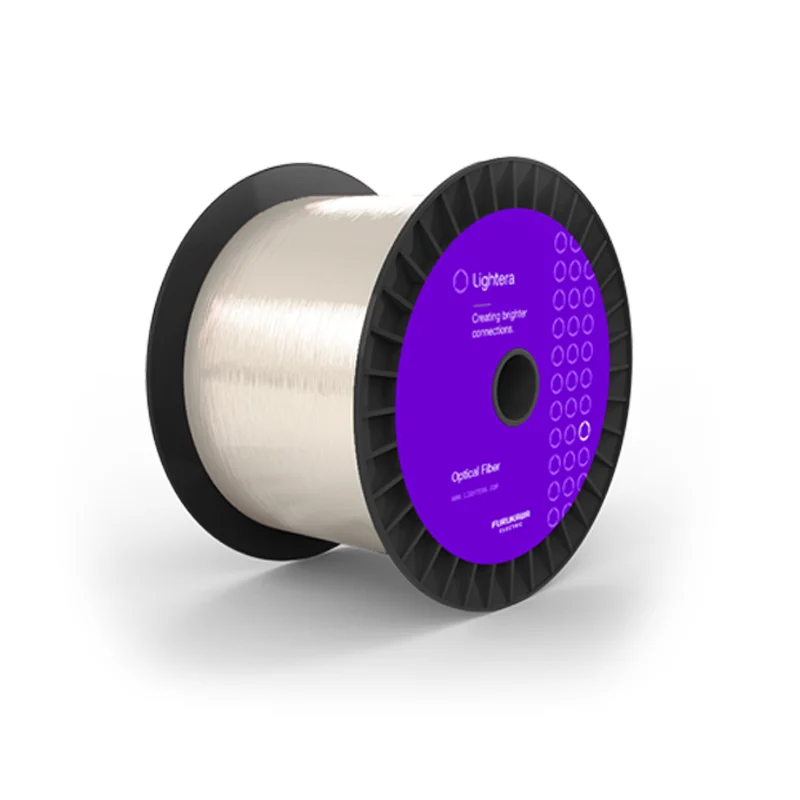

| Product Description | RightWave EDF LNL 80/125 Optical Fiber |
| Optical Characteristics |
|
| Cutoff Wavelength | <1260 nm |
| Mode Field Diameter @ 1550 nm | 4.9 ± 0.7 µm |
| Peak Absorption @ 1530 nm | 55 ± 5 dB/m |
| Numerical Aperture (Nominal) | 0.26 ± 0.02 |
| PMD (Typical) | ≤ 2 fs/m |
| Loss @ 1200 nm | < 15 dB/km |
| Physical Characteristics |
|
| Cladding Diameter | 80 µm |
| Core/Clad Concentricity Error | ≤ 0.3 µm |
| Coating Diameter | 125 µm |
| Mechanical and Environmental |
|
| Tensile Proof Test | 1.38 GPa (200 kpsi) |
| Order by Part Number | 93421 |
| Regulatory Compliance | REACH and RoHS Compliant |
| Quality Certification | ISO 9001 Certified |
