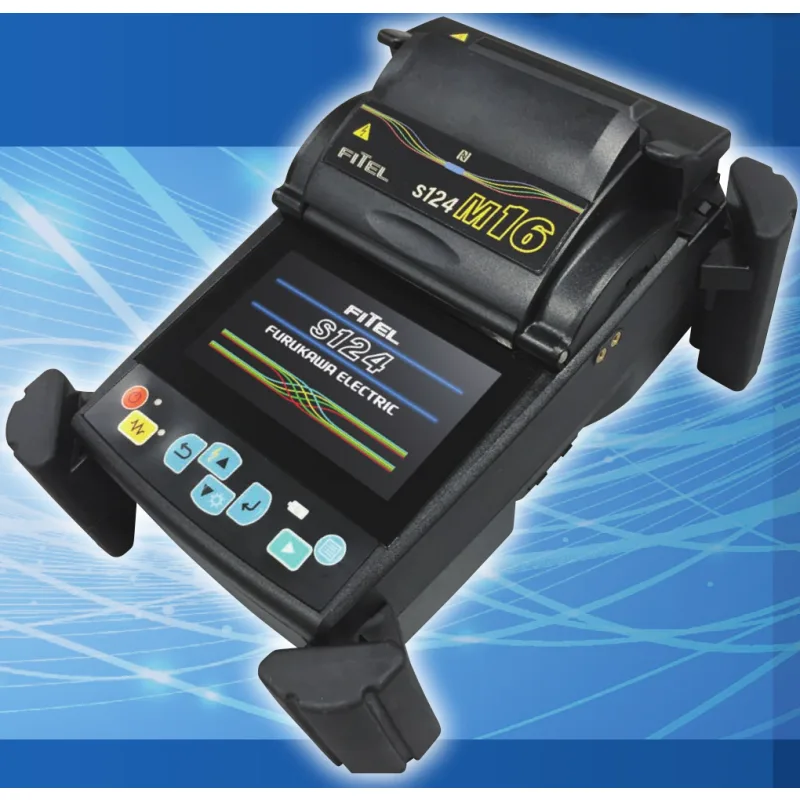

S124 M16 Ribbon Fiber Fusion Splicer
S124 M16 Ribbon Fiber Fusion Splicer
| Specifications | |||
|---|---|---|---|
| Applicable Fibers *¹ | SM (ITU-T G.652.B/D) MM (ITU-T G.651) DS (ITU-T G.653) NZD (ITU-T G.655) BIF (ITU-T G.657.A1/A2) |
||
| Fiber Count | Up to 16-fibers | ||
| Cladding Diameter | 125 μm | ||
| Fiber Coating Diameter Single Fiber | 0.25 mm, 0.9 mm | ||
| Fiber Coating Diameter Ribbon Fiber | 200 µm, 250 µm (refer to fiber holder) | ||
| Fiber Cleaving Length | 10 mm | ||
| Average Splice Loss *² | SM 0.05 dB MM 0.03 dB DS 0.08 dB NZD 0.08 dB BIF 0.05 dB |
||
| Typical Splice Time | 16-fiber ribbon : 23 sec 12-fiber ribbon 15 sec. Single fiber 13 sec. |
||
| Typical Heating Time | 16-fiber ribbon 28 sec. (S927R, power mode) 12-fiber ribbon 28 sec. (S927R, power mode) Single fiber 13 sec. (S921, power mode) |
||
| Splice Program | Max. 300 | ||
| Heat Program | Max. 100 | ||
| Applicable Protection Sleeve Length | 40 mm / 60 mm | ||
| Tension Test | 1.96 N | ||
| Discharge Compensation Function | Automatic correction according to temperature and atmospheric pressure | ||
| Optical Fiber Viewing Method | Two-way Observation From X and Y Axes | ||
| Monitor | 4.3 inch wide LCD monitor with touch screen | ||
| Magnification | 16X, 20X (in zooming), 28X (in zooming), 56X (in zooming) | ||
| Splice Result Storage | Last 10,000 splices | ||
| Image Capture Capacity | Last 100 images to be automatically captured | ||
| Dimensions | 139W X 209D X 114H mm not including shock absorber 179W X 246D X 131H mm including shock absorber |
||
| Weight | 1.8 kg (with battery) | ||
| Data Output | USB ver.2 mini B X 1 port, Standard A X 1 port | ||
| Power Source | AC 100-240 V (50/60 Hz) DC 11-24 V | ||
| Battery Capacity*³ | 170 splice and heating cycles | ||
| Operating Condition | Altitude : 0-2,000 m (1-12-fibers), 0-1,000 m (16-fibers) Wind protection : 15 m/s Operating temperature : -10 to +50°C (non-condensing) |
||
| Storage condition | -40 to +60 °C (non-condensing) | ||
| Note | *1 Corresponding to optical fiber in compliance with ITU-T recommendation. *2 This numerical number is the one when measured for the purpose to show the fusion splice characteristics in the testing method of IEC 61073-1, it is not the one to guarantee the splicing loss. *3 Number of times that the fusion splicing of the fiber and the heat reinforcement can be performed continuously at a rate of once a 90 seconds at the room temperature (20°C) condition when using a new 100% charged battery. The number of times you can use depends on the state of the battery and usage. |
||
| Environmental Durability | |
|---|---|
| Drop impact | Vertical drop test (5 sides excluding the top side) is conducted from a height of 76 cm and the normal operation is confirmed. |
| Impact Protection | The normal operation is confirmed after dropping a 500 grams weight of IK 07 grade from the height of 40 cm onto the equipment. |
| Dustproof | The normal operation is confirmed after putting the equipment in a device containing dust of 25 μm or less for 8 hours. |
| Drip proof | The normal operation is confirmed after exposing water droplet of IPX 2 grade with 3 mm/min to 4 sides for 2.5 min or more tilted by 15 degree. |
| Note | * It is not the guarantee of no break or no failure of this product since the test is performed with the draft shield closed. |
| Standard Package | |||
|---|---|---|---|
| Item | Model No. | S124M16-30 (Q'ty) | S124M16-31 (Q'ty) |
| S124M16 main body | S124M16-X-A-0001 | 1 | 1 |
| Hard carrying case | HCC-11 | 1 | 1 |
| Battery pack | S947 | 1 | 1 |
| 12-fiber Fiber Guide | FVG-12-P250 | 1 | 1 |
| Spare electrode | ELR-01 | 1 pair | 1 pair |
| AC adapter | S979 | 1 | 1 |
| AC power cord | 1 | 1 | |
| Cooling tray | CTX-03 | 1 | 1 |
| Fiber reformer (4 fiber) | FRF-01 | 1 pair | 1 pair |
| Fiber reformer (8/12 fiber) | FRF-02 | 1 pair | 1 pair |
| Cleaning brush | VGC-01 | 1 | 1 |
| Electrode sharpener | D5111 | 1 | 1 |
| Tool case | TCC-01 | 1 | 1 |
| LCD antireflective sheet | ARS-01 | 1 | 1 |
| Rubber foot | RBC-01 | 1 pair | 1 pair |
| Quick Reference guide | FTS-B559 | 1 | 1 |
| Instruction manual | UMC-03 | 1 | 1 |
| Wi-Fi dongle | WFD-01 | 0 | 1 |
| Optional components | |
|---|---|
| Item | Model No. |
| Soft carrying case | SCC-01 |
| Battery Charger | S980 |
| Strap plate | SPL-01 |
| Work belt | WBT-01 |
| USB cable | USB-01 |
| Car cigarettes cable | CDC-04 |
| Fiber Holders | |
|---|---|
| Item | Model No. |
| Fiber holder (0.25 mm coating fiber) | S712S-250 |
| Fiber holder (0.90 mm coating fiber) | S712S-900 |
| Fiber holder (2 fiber ribbon) | S712A-002 |
| Fiber holder 4 fiber ribbon) | S712A-004 |
| Fiber holder 6 fiber ribbon) | S712A-006 |
| Fiber holder (12 fiber ribbon) | S712A-012 |
| Fiber holder (12 fiber rollable ribbon) | S712A-12e |
| Fiber holder (12 fiber rollable ribbon, 200 µm fiber coating) | S712A-12e-P200 |
| Fiber holder (16 fiber rollable ribbon, 200 µm fiber coating | S712A-16e-P200 |
| Fiber Guide V-groove | ||
|---|---|---|
| Pitch | Fiber Count | Model No. |
| 0.25mm pitch | 4 fiber | FVG-04-P250 |
| 0.25mm pitch | 8 fiber | FVG-08-P250 |
| 0.25mm pitch | 12 fiber | FVG-12-P250 |
| 0.2mm pitch | 12 fiber | FVG-12-P200 |
| 0.2mm pitch | 16 fiber | FVG-16-P200 |
| Protection Sleeve | ||
|---|---|---|
| Model No. | Applicable Fiber | Length |
| S921 | Single fiber, 0.25 – 0.9 mm coating dia. | 60 mm |
| S922 | Single fiber, 0.25 – 0.9 mm coating dia. | 40 mm |
| S924 | Single fiber and upto 8-fiber ribbon | 40 mm |
| S924F | 12-fiber ribbon (Flat ribbon) | 40 mm |
| S927R | 12-fiber ribbon (Rollable ribbon) | 40 mm |
| S927R | 16-fiber ribbon (Rollable ribbon) | 40 mm |
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
