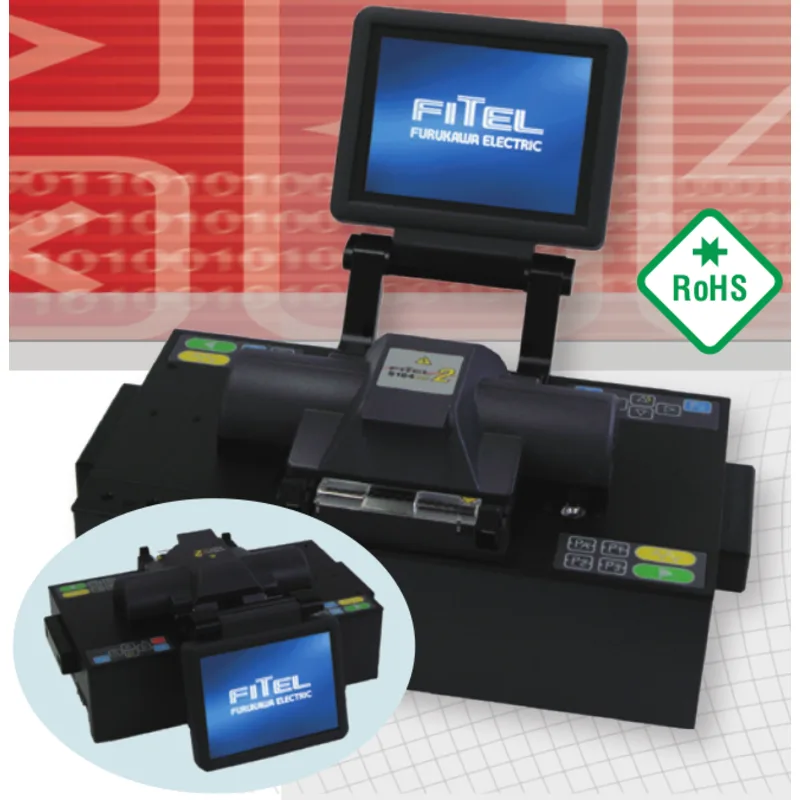

S183PMII ver.2 / S184PM-SLDF ver.2 S183PMII ver.2 Fusion Splicer S184PM-SLDF ver.2 Fusion Splicer
S183PMII ver.2 / S184PM-SLDF ver.2 S183PMII ver.2 Fusion Splicer S184PM-SLDF ver.2 Fusion Splicer
Features of Version 2
The advanced features of the S183PMII and S184PM-SLDF allow you to splice today’s and tomorrow’s most exotic fiber types. Whether performing high-strength splices, splicing small cladding fibers (80 μm), large cladding fibers (S183PMII: 500 μm, S184PM-SLDF: 1200 μm), PM fibers or erbium doped fibers, the S183PMII or S184PM-SLDF is the splicer for your high-end application.
S183PMII and S184PM-SLDF automatically adjust for different fiber coating and cladding sizes. There is no need to exchange v-grooves or fiber clamps. In addition, the S183PM II and S184PM-SLDF have been designed so that the user simply loads the fiber and closes the lid to begin the splice process. There is no need to lower or set fiber clamps before starting to splice.
S183PMII and S184PM-SLDF automatically perform a tensile proof test on the fiber and releases the holder lid to avoid twisting the fiber after the splice. This automation eliminates the need for the user to manually open and reset the splicer after each fusion splice.
S183PMII ver.2 and S184PM-SLDF ver.2 are designed especially for the demanding OEM, R&D, production and other special applications in the optical components industry
The S184PM-SLDF ver.2 Fusion Splicer has three electrodes instead of the standard two electrodes. This groundbreaking technology makes the plasma field (temperature field) wider, adjustable and realizes splicing super large diameter fiber.
New PANDA fiber is analyzed and the optimum program for rotational adjustment is automatically created. Unknown PANDA fiber can be easily spliced.
This function adjusts the parameters automatically based on the setting fibers, and achieves accurate splicing with dissimilar core diameter splicing. If there is no fusion program, this function is useful for any combination of fibers with dissimilar core diameters.
The new design uses intuitive operation to control motors. With many support tools (such as alignment and Automatic rotational adjustment), a complex fiber can be spliced effortlessly by Manual splicing.
“SmartFuse” has many functions: Export images, splice data and existing splice programs. Modify and import (to the splicer) new splice programs. Connect the splicer to feedback measurement instruments.
New functions are available for existing S183PMII and S184PM-SLDF by updating software. Please contact us for more information.
| SPECIFICATIONS | ||
|---|---|---|
| Description | S183PMII ver.2 | S184PM-SLDF ver.2 |
| Applicable Fibers *¹ | SM, MM, DSF, NZD, EDF, PMF, LDF, PCF, HighΔ | SM, MM, DSF, NZD, EDF, PMF, LDF, PCF, HighΔ |
| Cladding Diameter | 80 to 500 µm | 80 to 1200 µm *⁴ |
| Coating Diameter | 160 to 2000 µm | 160 to 2000 µm |
| Fibers Cleave Length | 3 to 5 mm with coating clamping 9 to 11 mm with bare fiber clamping |
5 mm with coating clamping 9 to 11 mm with bare fiber clamping |
| Sweep Length | ± 1.9 mm | ± 1.9 mm |
| Typical Insertion Loss *² (Similar Fiber Splicing) | 0.02 dB for identical SM/0.01 dB for identical MM 0.04 dB for identical DSF/0.05 dB for identical PMF |
0.03 dB for identical SM |
| Typical Insertion Loss *² (Dissimilar Fiber Splicing) | 0.15 dB (SMF to DSF) 0.25 dB (SMF to HI980 Fiber) |
0.15 dB (SMF to DSF) 0.25 dB (SMF to HI980 Fiber) |
| Extinction Ratio (Cross Talk) *² (Similar Fiber Splicing) | -40 dB (0.6 degree) (PANDA Fiber) -32 dB (1.4 degree) (BOW-TIE Fiber) |
-35 dB (1.0 degree) (PANDA Fiber) -30 dB (1.8 degree) (BOW-TIE Fiber) |
| Extinction Ratio (Cross Talk) *² (Dissimilar Fiber Splicing) | -30 dB (1.8 degree) (PANDA Fiber to BOW-TIE Fiber) | -28 dB (2.3 degree) (PANDA Fiber to BOW-TIE Fiber) |
| Return Loss | >60dB | >60dB |
| Splice Time *³ | 15 seconds for identical SM Fibers 35 seconds for identical PM Fibers (cladding clamping) 55 seconds for identical PM Fibers (coating clamping) |
20 seconds for identical SM Fibers 45 seconds for identical PM Fibers (cladding clamping) |
| Heating Time | 51 seconds for 60 mm sleeves 40 seconds for 40 mm sleeves; Gap setting |
51 seconds for 60 mm sleeves 40 seconds for 40 mm sleeves; Gap setting |
| Manual Splicing Mode | Gap setting Manual alignment (X, Y, θ) Support Tool for Manual splicing |
Gap setting Manual alignment (X, Y, θ) Support Tool for Manual splicing |
| Auto Splicing Mode | SM•MM•DSF automatic recognition Splicing dissimilar fiber PANDA fiber Auto |
SM•MM•DSF automatic recognition Splicing dissimilar fiber PANDA fiber Auto |
| Splice Programs | 72 Default/150 Available | 43 Default/150 Available |
| Heating Programs | 10 Default/12 Available | 10 Default/12 Available |
| Sleeve | 20, 40, 60 mm | 20, 40, 60 mm |
| Magnification | 215X & 430X | 215X & 430X |
| Splice Memory | Maximum 2000 splices | Maximum 2000 splices |
| Size | 350W X 197D X 154H mm | 350W X 197D X 154H mm |
| Weight | 8.5 kg | 8.8 kg |
| Monitor | 6.5" color LCD monitor | 6.5" color LCD monitor |
| Video Output | Analog RGB | Analog RGB |
| Data Interface | USB ver. .1.1 end Ethernet | USB ver.1.1 end Ethernet |
| Storage Temperaturere | -40 to +60°C (without excessive humidity) | -40 to +60°C (without excessive humidity) |
| Power Source | AC 100 to 240 V (50/60 Hz, AC Adaptor) | AC 100 to 240 V (50/60 Hz, AC Adaptor) |
| *1) It applies the fiber specified in the ITU-T standard. Regarding the type of fibers, it is necessary to optimize the splice program. *2) These are typical data values. Depending on the fibers, the values can vary. *3) Depending on program setting, the time can vary. *4) The maximum value of cladding diameter can be 500µm depending on the type of fiber( PHOTONIC CRYSTAL and non-circle fiber, etc.). |
||
| Standard Package | |||
|---|---|---|---|
| Item | P/N | Quantity S183PMII Ver.2 | Quantity S184PM-SLDF Ver.2 |
| 1 S183PMII Main Body *⁵ | S183-P2-A-0001 | 1 | |
| 1 S184PM-SLDF Main Body *⁶ | S184-PS-A-0001 | 1 | |
| 2 250 µm Coating Fiber Holders | S710S-250 | – | 1 pair |
| 2 400 µm Coating Fiber Holders | S710S-400 | – | 1 pair |
| 2 900 µm Coating Fiber Holders | S710S-900 | – | 1 pair |
| Fiber Holders for LDF | S710S-LDF | – | 1 pair |
| 3 AC Adaptor | S976A | 1 | 1 |
| 4 AC Adaptor | S975A | – | 1 |
| 5 AC Cable | 1 | 2 | |
| 6 Electrodes for Regular Fiber (Spare) | S960 | 1 pair (2 pieces) | |
| 8 Electrodes Set for Regular Fiber | S184-X-A-0012 | – | 1 set (3 pieces) |
| 9 Electrodes Set for LDF (Spare) | S184-X-A-0011 | – | 1 set (3 pieces) |
| 10 Z Stage Lock | S183-X2-A-0010 | 1 pair | 1 pair |
| 11 Change Tool for Vertical Electrode | S184-X-A-0004 | – | 1 |
| Electrode Sharpener | D5111 | 1 | 1 |
| Operation Manual | FTS-331 | 1 | – |
| Operation Manual | FTS-340 | – | 1 |
| *5) Electrodes for regular fiber(S960) are installed in S183PMII Main Body. *6) Electrodes set for LDF(S184-X-A-0010) are installed in S184PM-SLDF Main Body. |
|||
| Optional Accessories | |||
|---|---|---|---|
| Item | P/N | Quantity S183PMII Ver.2 | Quantity S184PM-SLDF Ver.2 |
| 2 160µm Coating Fiber Holders | S710S-080 | 1 pair | 1 pair |
| 2 250µm Coating Fiber Holders | S710S-250 | pair | 1 pair |
| 2 400µm Coating Fiber Holders | S710S-400 | 1 pair | 1 pair |
| 2 900µm Coating Fiber Holders | S710S-900 | 1 pair | 1 pair |
| Special Fiber Holder (custom-made) *⁷ | – | 1 pair | 1 pair |
| Fiber Holders for LDF | S710S-LDF | 1 pair | 1 pair |
| Fiber Holders for Loose Tube | S710S-LT | 1 pair | 1 pair |
| 6 Electrodes for Regular Fiber | S960 | 1 pair (2 pieces) | – |
| 7 Electrodes for LDF | S968 | 1 pair (2 pieces) | – |
| 8 Electrodes Set for Regular Fiber | S184-X-A-0012 | – | 1 set (3 pieces) |
| 9 Electrodes Set for LDF | S184-X-A-0011 | – | 1 set (3 pieces) |
| 12 Fiber Transporter | S183-X2-A-0002 | 1 | 1 |
| SmartFuse (Software) | SF-01 | 1 | 1 |
| *7) This is a custom-made item. Please inform us about the coating diameter within the range of 100-2000 μm. | |||
.
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Export of S183PMII and S184PM-SLDF form Japan are controlled under Foreign Exchange and Foreign Trade Control Act by Japanese government.
Please note that the export of this product requires permission from Japanese government in advance.
The products and/or technical information presented in this publication may be subject to the application of the Foreign Exchange and Foreign Trade Act and other related laws and regulations in Japan.
In addition, the Export Administration Regulations (EAR) of the United States may be applicable.
In cases where exporting or reexporting the products and/or technical information presented in this publication, customers are requested to follow the necessary procedures at their own responsibility and cost.
Please contact the Ministry of Economy, Trade and Industry of Japan or the Department of Commerce of the United States for details about procedures.
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
