Part no - 07532-01

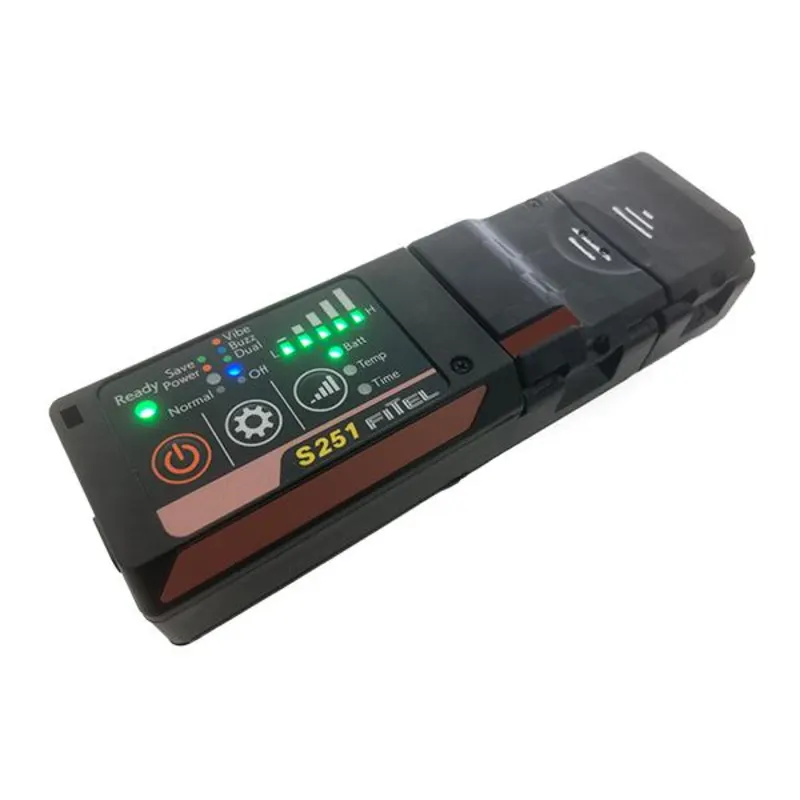

S251

S251 (S218R-Plus Successor)

S251 (S218R-Plus Successor)

Product Specifications

Item
S218R-PLUS
S251
Applicable Fibers
1 ~ 12ribbon
1 ~ 16ribbon
*Only 200um pitch
is applicable for
16ribbon
Applicable Clad Diameters
125um
125um
Applicable Coating Diameters (Single Fiber)
200 ~ 400um
200 ~ 400um
Applicable Coating Diameters (Ribbon)
250 ~ 400um
200 ~ 400um
Heating Time (Turn on to Stand-by)
20sec
5sec/3sec *
Heating Temp. Setting
80~160℃
80, 100, 120, 140, 160℃
Power Supply(AC/DC)
100-240V / 11-1V
100-240V / 11-1V (USB-C type)
Buttery Capacity/Stripping Time/Operation Time
2040mAh / – / 10hrs
2350mAh / 645 times of stripping/10h45m
Charging Time (Full Charge)
3hrs (@Power Off)
2h20m (@Power Off)
Operation Condition (Temp. / Humid.)
0 ~ 40℃ / Up to 95%Rh
-10 ~ 50℃ / Up to 95%Rh
Storage Condition (Temp. / Humid.)
40 ~ 60℃/ Up to 95%Rh
Durability
Drop Test (76cm)
Drop Test(76cm) /Vibration/Impact Test
/Water Resist (IPX4)
Size
125L × 48D × 41H mm
146.4L×46D×35H mm
Weight (w/Battery)
260g
250±30g

Features

  • Wider application: S251 is to be applicable 200um ribbon fiber which previously only applicable by S218R-200.
  • Easy to clean removed coat: The bumping texture which S218R has near the heater was eliminated to make it easy to clean removed coating debris.
  • Easy to charge: Apply USB Type-C for charging.
  • Easy to handling: Added shapes to easy to open lid of heater.
  • Lower pulling strength: By changing blade dimension, required pulling strength for 12-fiber ribbon stripping was reduced 40% comparing to S218R-Plus.
  • Improvement of workability for outdoor operation: Adapting new LED which is more visible than S218R’s. Added beeping and vibrating function for notifying end of heating for easier recognition.
  • More setting variety: S251 has more setting variety of heating time and temperature. While S218 has setting function of 4 step heating temperatures, both heating time and temperature can be adjustable by 5 steps each for S251.
  • Shorter waiting time for heating when booting up: Stand-by heating time for S251 is as short as 5 secs, while S218R-Plus needs 20 secs.


Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.

Trademark Notice and Disclaimer

Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
