- Cleave anywhere
- Simple operation
- Easy fiber loading
- Durable and reliable design
- Wide lid opening
- Long blade life
- Light weight (About 30% reduced from previous model)
- High capacity waste bin
- RoHS compliant
Part no -
07142-01
S326 High Precision Optical Fiber Cleaver
S326 High Precision Optical Fiber Cleaver
S326 High Precision Optical Fiber Cleaver
Key features
Description

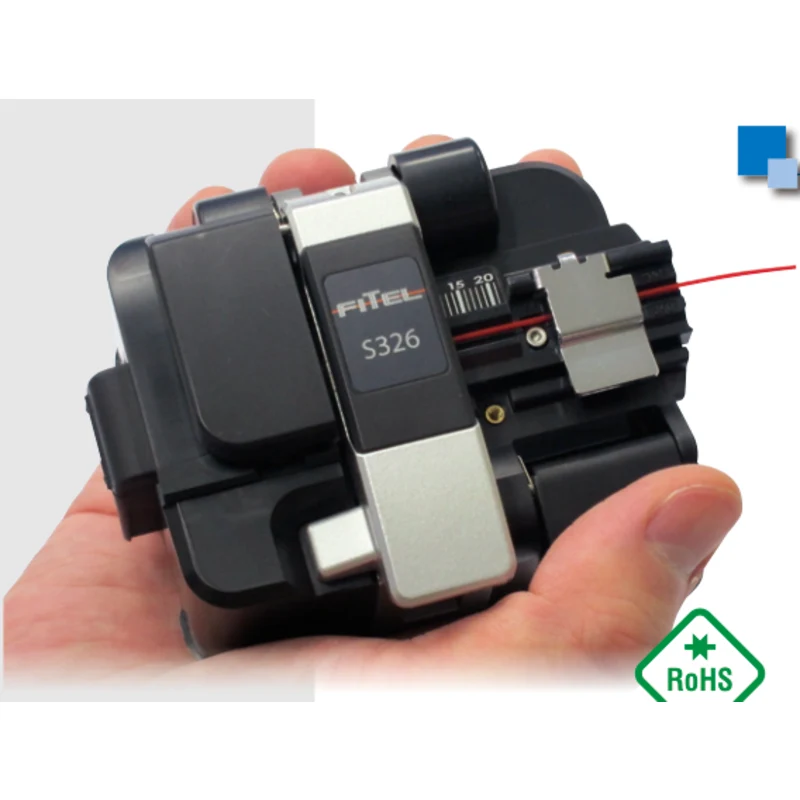

With its ergonomic and light weight design, the S326 cleaver offers the operator the versatility to cleave on a work bench or in the palm of their hand. The reduced lid size and wide opening angle facilitates fiber loading and improves stability resulting in better single and ribbon fiber cleaves. Just pressing the lever completes the fiber cleave and automatically collects the waste. With 24 positions, the long life-time blade achieves 48,000 fiber cleaves. The S326 cleaver can offer opti- cal fiber cleaving for a full range of OSP and OEM applications.
Product Line Up
| Product Line Up | |
|---|---|
| Model | Application |
| S326A | 125μm clad diameter fiber |
| S326S80 | 80μm clad diameter fiber |
Specifications
| Specifications | ||
|---|---|---|
| Item | S326A | S326S80 |
| Fiber Types | All fiber types | All fiber types |
| Fiber Count | Single to 12 ribbon fiber | Single |
| Clad Diameter | 125 μm | 80 μm |
| Coating Diameter | Single fiber: 250 to 900 µm Ribbon fiber: 300 to 400 µm (thickness) |
Single fiber: 160 to 180 µm |
| Cleave Length | Single fiber: 5 to 20 mm Ribbon fiber: 10 mm |
Single fiber: 5 to 10 mm |
| Blade Life *¹ | 48000 fibers (2000 fibersx24 positions | 48000 fibers (2000 fibersx24 positions) |
| Dimensions | 96Wx79Dx56Hmm | 96W×79D×56H mm |
| Weight | 250 g | 250 g |
| *1: The blade life depends on the operation environment and condition. The number can vary and is not guaranteed. | ||
Standard Package S326A
| Standard Package S326A | |||
|---|---|---|---|
| Item | P/N | Quantity S326A | Quantity S326S80 |
| S326A Main Body | S326A-01 | 1 | – |
| S326S80 Main Body | S326S80-01 | – | 1 |
| Single Fiber Adapter | S326X-18 | 1 | 1 |
| Normal Fiber Waste Bin | S326X-12 | 2 | 2 |
| Large Capacity Fiber Waste Bin | S326X-13 | 1 | 1 |
| Hard Case | S326X-17 | 1 | 1 |
| Hexagonal Wrench | S326X-16 | 1 | 1 |
| Operation Manual | FTS-B423 | 1 | 1 |
.
.
.
.
New Design of Single Fiber Adapter
Vivid scale makes visibility easier. By changing the mounting position, it can prevent the consumption at a particular position of clamp rubbers and make the life time of rubber longer.
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Export Control Regulations
The products and/or technical information presented in this publication may be subject to the application of the Foreign Exchange and Foreign Trade Act and other related laws and regulations in Japan.
In addition, the Export Administration Regulations (EAR) of the United States may be applicable.
In cases where exporting or reexporting the products and/or technical information presented in this publication, customers are requested to follow the necessary procedures at their own responsibility and cost.
Please contact the Ministry of Economy, Trade and Industry of Japan or the Department of Commerce of the United States for details about procedures.
Key features
- Cleave anywhere
- Simple operation
- Easy fiber loading
- Durable and reliable design
- Wide lid opening
- Long blade life
- Light weight (About 30% reduced from previous model)
- High capacity waste bin
- RoHS compliant
Description
With its ergonomic and light weight design, the S326 cleaver offers the operator the versatility to cleave on a work bench or in the palm of their hand. The reduced lid size and wide opening angle facilitates fiber loading and improves stability resulting in better single and ribbon fiber cleaves. Just pressing the lever completes the fiber cleave and automatically collects the waste. With 24 positions, the long life-time blade achieves 48,000 fiber cleaves. The S326 cleaver can offer opti- cal fiber cleaving for a full range of OSP and OEM applications.
Product Line Up
| Product Line Up | |
|---|---|
| Model | Application |
| S326A | 125μm clad diameter fiber |
| S326S80 | 80μm clad diameter fiber |
Specifications
| Specifications | ||
|---|---|---|
| Item | S326A | S326S80 |
| Fiber Types | All fiber types | All fiber types |
| Fiber Count | Single to 12 ribbon fiber | Single |
| Clad Diameter | 125 μm | 80 μm |
| Coating Diameter | Single fiber: 250 to 900 µm Ribbon fiber: 300 to 400 µm (thickness) |
Single fiber: 160 to 180 µm |
| Cleave Length | Single fiber: 5 to 20 mm Ribbon fiber: 10 mm |
Single fiber: 5 to 10 mm |
| Blade Life *¹ | 48000 fibers (2000 fibersx24 positions | 48000 fibers (2000 fibersx24 positions) |
| Dimensions | 96Wx79Dx56Hmm | 96W×79D×56H mm |
| Weight | 250 g | 250 g |
| *1: The blade life depends on the operation environment and condition. The number can vary and is not guaranteed. | ||
Standard Package S326A
| Standard Package S326A | |||
|---|---|---|---|
| Item | P/N | Quantity S326A | Quantity S326S80 |
| S326A Main Body | S326A-01 | 1 | – |
| S326S80 Main Body | S326S80-01 | – | 1 |
| Single Fiber Adapter | S326X-18 | 1 | 1 |
| Normal Fiber Waste Bin | S326X-12 | 2 | 2 |
| Large Capacity Fiber Waste Bin | S326X-13 | 1 | 1 |
| Hard Case | S326X-17 | 1 | 1 |
| Hexagonal Wrench | S326X-16 | 1 | 1 |
| Operation Manual | FTS-B423 | 1 | 1 |
.
.
.
.
New Design of Single Fiber Adapter
Vivid scale makes visibility easier. By changing the mounting position, it can prevent the consumption at a particular position of clamp rubbers and make the life time of rubber longer.
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Export Control Regulations
The products and/or technical information presented in this publication may be subject to the application of the Foreign Exchange and Foreign Trade Act and other related laws and regulations in Japan.
In addition, the Export Administration Regulations (EAR) of the United States may be applicable.
In cases where exporting or reexporting the products and/or technical information presented in this publication, customers are requested to follow the necessary procedures at their own responsibility and cost.
Please contact the Ministry of Economy, Trade and Industry of Japan or the Department of Commerce of the United States for details about procedures.
