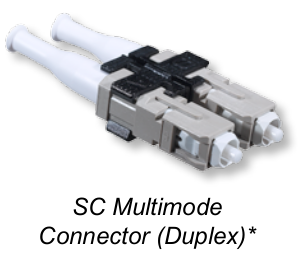

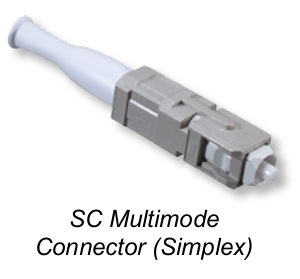

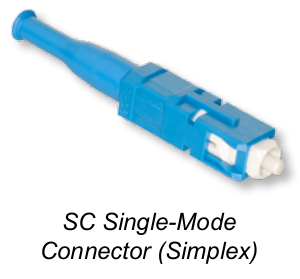

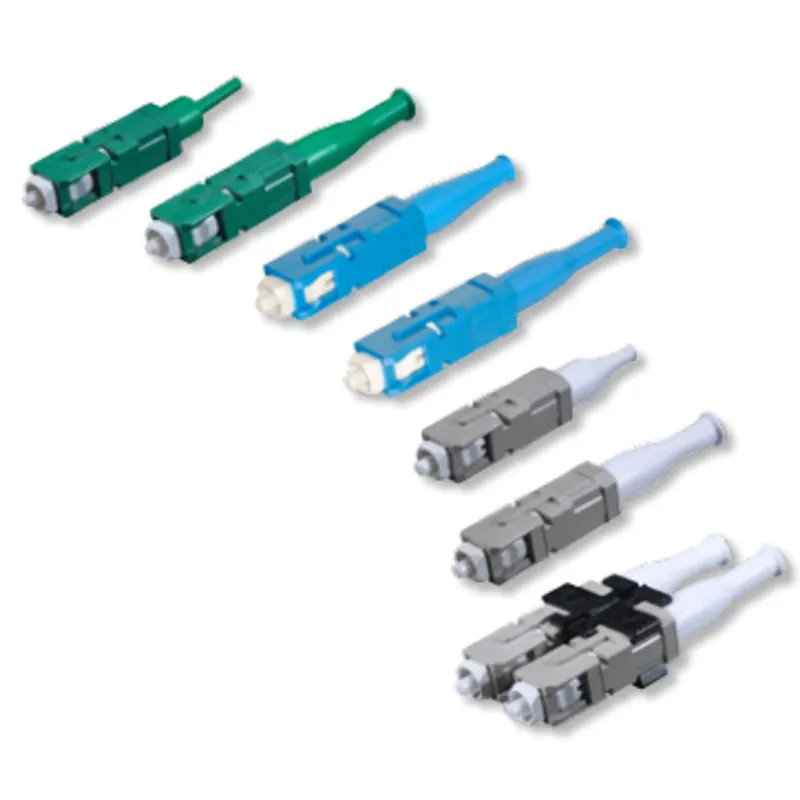

Lightera offers a complete family of fiber optic products featuring the SC Connector. With its familiar push-pull insertion release mechanism, the SC Connector is standard in most fiber applications and well known in the industry.
Lightera offers a complete family of fiber optic products featuring the SC Connector. With its familiar push-pull insertion release mechanism, the SC Connector is standard in most fiber applications and well known in the industry.
Lightera offers a complete family of fiber optic products featuring the SC Connector. With its familiar push-pull insertion release mechanism, the SC Connector is standard in most fiber applications and well known in the industry.

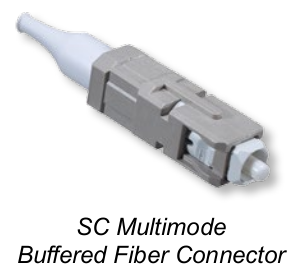

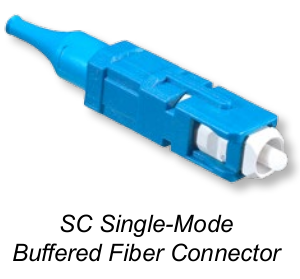

The SC Connector is an easily field mountable connector that is designed to mount on 900 micron buffered fiber, 1.6 mm jacketed cable and 3.0 mm jacketed cable. Jumper connector is also available with a reduced length cable support. It can be mounted on bare fiber but it is recommended that the fiber be buffered first using the D181755 kit or equivalent. The connector utilizes a zirconia ferrule for fiber alignment; and push-pull hardware for installation into the adapter. It can be used in high density applications and not be affected by axial cable loads. The cable is crimped to the outer hardware and therefore prevents momentary disconnect when axial load is placed on the cable. The 1032B5 Tool Kit contains all the tools and instructions needed to mount SC Connectors. The new MiniTool kit is available for mounting the connectors using the EZ method.
| SC Connector Specifications | ||
|---|---|---|
| Cable OD, nom | Proof Test, Axial, nom | Common Specs* |
| 3.0 mm; 30 lbs, 20 lbs | Insertion Loss µ,s | 0.3 dB, 0.3 |
| 1.6/2.0 mm | Fiber OD, nom | 125 µm |
| 0.9 mm 2 lbs. | Insertion Loss Stability | < 0.3 dB |
| Mount Time – Epoxy | 8 min. avg. | |
| Mount Time EZ | 5 min. avg. | |
| Mating Durability | < 0.2 dB | |
| Temperature Stability | -40 °C to 75 °C | |
| Insertion Loss Change for 500 reconnects | ||
| SC Connector Ordering Information* | |||
|---|---|---|---|
| Multimode Product Code (Comcode) |
|||
| Cable OD, nom | Single | 100 Pack | 1000 Pack |
| 3.0 mm | P6200A-Z-126 (106917776) | P6200A-Z-126-100 BULK (107503872) | P6200A-Z-126-1000 BULK (300461803) |
| 1.6/2.0 mm | P6200B2-Z-126 (300581576) | P6200B2-Z-126-100 BULK (300537362) | P6200B2-Z-126-1000 BULK (300537388) |
| 0.9 mm | P6201A-Z-126 (106917800) | P6201A-Z-126-100 BULK (107503880) | P6201A-Z-126-1000 BULK (109161299) |
| 3.0 mm | P6000A-Z-126 (106917438) | P6000A-Z-126-100 BULK (107503856) | P6000A-Z-126-1000 BULK (300464740) |
| 1.6/2.0 mm | P6000B2-Z-126 (300581584) | P6000B2-Z-126-100 BULK (300581592) | P6000B2-Z-126-1000 BULK (300537396) |
| 0.9 mm | P6001A-Z-125 (106917586) | P6001A-Z-125-100 BULK (107503864) | P6001A-Z-125-1000 BULK (300441128) |
Lightera offers SC Adapters in a variety of configurations. The adapters are easily mounted by simply snapping them into a panel. The blue simplex adapter C6000A-4 can mate both multimode and single-mode connectors. The beige simplex multimode adapter uses a metallic sleeve and should only be used for multimode connectors. Single-mode adapters may be used for both single-mode and multimode connectors, while multimode adapters should only be used for multimode applications. Lightera also offers angled adapters in a distinctive green color per industry standards.
Note: Attenuators in both a build-on and UMA style are also available.
| Cross-Connect Panels |
|---|
| Cross-connect Panels |
|
|
|
|
| Adapter Ordering Information | ||
|---|---|---|
| Product Code | Description | Comcode |
| C6001A-5 | C6001A-5, SC MM simplex adapter, short flange | 300474350 |
| C6001A-5-100 | C6001A-5-100, SC MM simplex adapter, 100 pack, short flange | 300471331 |
| C6001A-RP-UA | C6001A-RP-UA, SC MM 45° mount Angled Simplex Adapter | 300537990 |
| C6001A-RP-UA-100 | C6001A-RP-UA-100, SC MM 45° mount Angled Simplex Adapter, 100 pack | 300538006 |
| C6061A-4 | C6061A-4, SC MM duplex adapter | 107118903 |
| C6061A-4-100 | C6061A-4-100, SC MM duplex adapter, 100 pack | 107504961 |
| C6061A-4-LS | C6061A-4-LS, SC LaserWave Duplex Adapter | 108911728 |
| C6001A-5-LS | C6001A-5-LS, SC LaserWave Simplex adapter, short flange | 300474368 |
| C6001A-RP-UA-LS | C6001A-RP-UA-LS, SC Laserwave 45° mount Angled Simplex Adapter | 300538436 |
| C6001A-RP-UA-LS-100 | C6001A-RP-UA-LS-100, SC Laserwave 45° mount Angled Simplex Adapter, 100 pack | 300538444 |
| C6070A-4 | C6070A-4, SC/ST MM duplex hybrid adapter | 107087967 |
| C6000A-4 | C6000A-4, SC SM simplex adapter | 106703200 |
| C6000A-4-100 | C6000A-4-100, SC SM simplex adapter, 100 pack | 300528668 |
| C6000A-5 | C6000A-5, SC SM Simplex, short flange | 107022980 |
| C6000A-5 -100 | C6000A-5-100, SC SM Simplex, short flange, 100 pack | 107505042 |
| C6000A-5 -1000 | C6000A-5-1000, SC SM Simplex, short flange, 1000 pack | 300471281 |
| C6000SC-RP | C6000SC-RP, SC SM Simplex adapter, plastic latch | 108988817 |
| C6000SC-RP-100 | C6000SC-RP-100, SC SM Simplex adapter, plastic latch, 100 pack | 108988825 |
| C6000A-RP-UA | C6000A-RP-UA, SC SM 45° mount Angled Simplex Adapter | 300538014 |
| C6000A-RP-UA-100 | C6000A-RP-UA-100,SC SM 45° mount Angled Simplex Adapter, 100 pack | 300538022 |
| C6060A-4 | C6060A-4, SC SM Duplex Adapter | 106817380 |
| C6060A-4-100 | C6060A-4-100, SC SM Duplex Adapter, 100 pack | 300485174 |
| C6060A-4-1000 | C6060A-4-1000, SC SM Duplex Adapter, 1000 pack | 109161307 |
| Angled Adapters |
||
| Product Code | Description | Comcode |
| C6800A-4 | C6800A-4, SCAPC SM Simplex Adapter | 107562142 |
| C6800A-4-100 | C6800A-4-100, SCAPC SM Simplex Adapter, 100 pack | 108922766 |
| C6800A-4-1000 | C6800A-4-1000, SCAPC SM Simplex Adapter, 1000 pack | 300471299 |
| C6800A-RP-UA | C6800A-RP-UA, SCAPC SM Unplated Angled Simplex Adapter | 300538030 |
| C6800A-RP-UA-100 | C6800A-RP-UA-100, SCAPC SM Unplated Angled Simplex Adapter, 100 pack | 300538048 |
| C6868A-4 | C6868A-4, SCAPC SM Duplex Adapter | 108223199 |
| Ganged Adapters |
||
| Product Code | Description | Comcode |
| C6MMSC-1 | C6MMSC-1 MM Adapter Strip Single Pack | 300395852 |
| C6MMSC-10PK | C6MMSC-10PK MM Adapter Strip 10 Pack | 108918442 |
| C6MMSC-20PK | C6MMSC-20PK MM Adapter Strip 20 Pack | 300472768 |
| C6MMSC-LS-1 | C6MMSC-LS-1 LaserWave Adapter Strip Single Pack | 300395837 |
| C6MMSC-LS-10PK | C6MMSC-LS-10PK LaserWave Adapter Strip 10 Pack | 108911413 |
| C6MMSC-LS-20PK | C6MMSC-LS-20PK LaserWave Adapter Strip 20 Pack | 300472776 |
| C6SMSC-1 | C6SMSC-1 SM Adapter Strip Single Pack | 300397866 |
| C6SMSC-10PK | C6SMSC-10PK SM Adapter Strip 10 Pack | 108168782 |
| C6SMSC-Z-10PK | C6SMSC-Z-10PK SM Zirconia Adapter Strip 10 Pack | 300472875 |
| C6SMSC-Z-20PK | C6SMSC-Z-20PK SM Zirconia Adapter Strip 20 Pack | 300472883 |
| C6APSC-1 | C6APSC-1 SMAPC Adapter Strip Single Pack | 108134982 |
| C6APSC-10PK | C6APSC-10PK SMAPC Adapter Strip 10 Pack | 108168790 |
| C6APSC-Z-1 | C6APSC-Z-1 SMAPC Zirconia Adapter Strip Single Pack | 108134974 |
The SC Terminators from Lightera are designed to reduce back-reflections typically found on laser-activated, connectorized access points such as those on splitters, DWDM couplers, or LGX Fiber Distribution Frames. Any single fiber connector mated to an adapter or coupling that is unused is a source of back-reflection. Back-reflection can be a major cause of bit errors. Lightera terminators are operational between 1310 and 1550 nm and provide a reflectance of -45 dB.
The SC-to-LC Converter features a male SC connector on the front and an LC Adapter on the back. This converter can be used in those applications where customers may have chosen to convert to the LC system (connectors and jumpers) but still has an embedded base of SC adapters in their systems.
The converter has been designed to yield an insertion loss of ≤ 0.5 dB.
| Terminator Codes | |
|---|---|
| Terminator, SC-T | 107 796 686 |
| Terminator, SC-T-100 | 107 860 157 |
| Converter Codes | |
|---|---|
| Converter, SC-LC | 109 119 834 |
Lightera offers an extensive line of fiber optic jumpers. On multimode duplex jumpers, the 2A1 clip is added in the factory to maintain the transmit/receive position of the simplex plugs. SC jumpers are available with reduced length cable supports for unique applications where space may be a constraint.
The SC Jumpers are available in both 3.0 mm and 1.6 mm diameter cordage. The 1.6 mm cordage, allows greater jumper density in a fully loaded frame and prevents congestion in overhead racks or building risers. A duplex jumper made from a figure-eight MiniCord® Cordage does not require a bulky bifurcation joint thereby saving space in the frame. The duplex MiniCord jumper can be peeled apart with ease so that two cords can be installed as one, then easily separated into two, saving time and effort. The single-mode cordage uses Lightera’ AllWave® FLEX Zero Water Peak (ZWP) Fiber providing excellent bend loss performance. The bend radius permits you to install jumpers or jumpers in spaces with limited maneuverability or around sharp corners. Quad jumpers utilize four color-coded 1.6 mm cords combined in one jacket.
Jumpers are tested and must meet a maximum insertion loss of 0.3 dB. Field terminations using proper procedures should yield similar results. Jumpers come in fixed lengths or can be ordered in custom lengths. Hybrid jumpers are also available.
| SC Factory-Made Jumper Specifications | |||
|---|---|---|---|
| Specification | Single-Mode PC | APC | Multimode |
| Loss*: Avg./Std. Dev. | 0.15dB/0.08 dB (Tuned)+ | 0.25 dB/0.12 dB | 0.2 dB/0.1 dB |
| Loss*: Max | 0.3 dB | 0.5 dB | 0.5 dB |
| Return Loss Minimum | 55 dB | 65 dB | 20 dB |
| Cable Retention: (1.6 mm), (3.0 mm) | 20 lbs./89.67 N, 30 lbs./133 N | 20 lbs./89.67 N, 30 lbs./133 N | 20 lbs./89.67 N, 30 lbs./133 N |
| Mating Durability, (500 Reconnects), Insertion loss change | < 0.2 dB | < 0.2 dB | < 0.2 dB |
| Temp. Stability (-40 °C to 75 °C), Insertion loss change | < 0.3 dB | < 0.3 dB | < 0.3 dB |
| * Complete connection concatenated statistics 8.8/125 fiber, dry connection. | |||
| t Optical performance is dependant on ferrule end face cleanliness. Cleaning the end face prior to examination or installation is recommended. See Telcordia GR-326_COR, Issue 3, September 1999, Section 4.3 for recommended cleaning procedure. | |||
JP3WY001LCUSCU003M – Jumper Plenum 3.0 mm AllWave® FLEX Fiber Yellow 1 fiber (Simplex) LCU SCU 003 Meters long
JR2WY002LCUSCU003M – Jumper Riser 2.0 mm AllWave FLEX Fiber Yellow 2 fibers (Zip) LCU SCU 003 Meters long
JR9WY001LCUUNC003M – Jumper Riser 900 µm AllWave FLEX Fiber Yellow 1 fiber LCU UNC (Pigtail) 003 Meters long
SMART Code syntax below has spaces between field sets for visibility. Actual SMART Code should not include any spacing.
Cable Design
Fiber Type
Jacket Color
Fiber Count
Connector Ends “A” & “B”
LCA = LC Angle Polish (Single Mode Only)
LA4 = LC Angle Polish 40 Degree Boot (Single Mode Only)
LC4 = LC Ultra Polish 40 Degree Boot
LCU = LC Ultra Polish
LCS = LC Ultra Polish Short Boot (1.6mm & 2.0mm Only)
LCF = LC Ultra Polish Soft Boot (900µm Only)
LCD = LC Ultra Polish Single Mode Duplex w/ Clip
SCA = SC Angle Polish (Single Mode Only)
SAS = SC Angle Polish Short Boot (1.6mm & 2.0mm Single Mode Only)
SCU = SC Ultra Polish
SCS = SC Ultra Polish Short Boot (1.6mm & 2.0mm Only)
SCF = SC Ultra Polish Soft Boot (900µm Only)
STP = STII+ Ultra Polish Pool Proof (Use with RISER & LSZH)
ST2 = STII Ultra Polish (Use with PLENUM Cordage)
FCA = FC Angle Polish (Single Mode Only)
FCU = FC Ultra Polish
UNC = UNConnectorized (Stub, Pigtail) (End “B” only)
Length
001 – 999
Unit Of Measure
M = Meters (Min. 1 m)
C = Centimeters (Min. 15 cm simplex/45 cm duplex)
F = Feet (Min. 1 ft)
I = Inches (Min. 6 in. simplex/18 in. duplex)
| SC Tools, Kits, and Consumables | ||
|---|---|---|
| Product Code | Description | Comcode |
| 1032B5 | Tool Kit with oven for epoxy | 106 705 213 |
| 1032B6 | Tool Kit with international oven for epoxy | 106 919 012 |
| D-182738 | Consumables for mounting 100 MM connectors using epoxy | 106 919 236 |
| D-182739 | Consumables for mounting 100 SM connectors using epoxy | 106 919 244 |
| D-182919 | Consumables for mounting 100 Connectors on MiniCord Cable | 107 983 041 |
| 1032H | Mini Tool Kit | 108 267 279 |
| D-182804 | Consumables for mounting 100 MM Connectors using EZ | 108 919 143 |
| D-182720 | Consumables for mounting 100 SM Connectors using EZ | 107 834 039 |
| 1510A | Polishing Fixture – SC/ST | 108 237 710 |
| 1510B | Crimping Tool – SC/ST | 106 918 998 |
| 1510LC | Curing Fixture | 106 919 004 |
| Pad | Universal Polishing Pad | 300 472 644 |
| MM Kit | Universal Polishing Kit MM | 300 486 552 |
| SM Kit | Universal Polishing Kit SM | 300 472 651 |
| Primer | Primer | 106 730 849 |
| Adhesive | Adhesive | 106 730 856 |
| List of Instructions | ||
|---|---|---|
| Document ID | Description | Web Address |
| 640-252-044-UNIV | Epoxy & EZ for ST/SC | http://www.lightera.com/pdfs/640-252-044-UNIV.pdf |
| 640-252-049-03-UNIV | Epoxy for SC MM & SM Using Universal Procedure | http://www.lightera.com/pdfs/640-252-049-03-UNIV.pdf |
| 640-252-049-02-UNIV | EZ for SC MM & SM using Universal Procedure | http://www.lightera.com/pdfs/640-252-049-02-UNIV.pdf |
| 640-252-044-06-UNIV | Epoxy for ST Il MM & SM using Universal Procedure | http://www.lightera.com/pdfs/640-252-044-06-UNIV.pdt |
| 640-252-053-UNIV | BTW LC Universal Procedure | http://www.lightera.com/pdfs/640-252-053-UNIV.pdf |
| 640-252-054-UNIV | LC Jumper Connector Universal Polishing Procedure | http://www.lightera.com/pdfs/640-252-054-UNIV.pdf |
| D-182804 | Consumables for mounting 100 MM Connectors using EZ | 108 919 143 |
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
