Descontinuado

Part no - 35150634

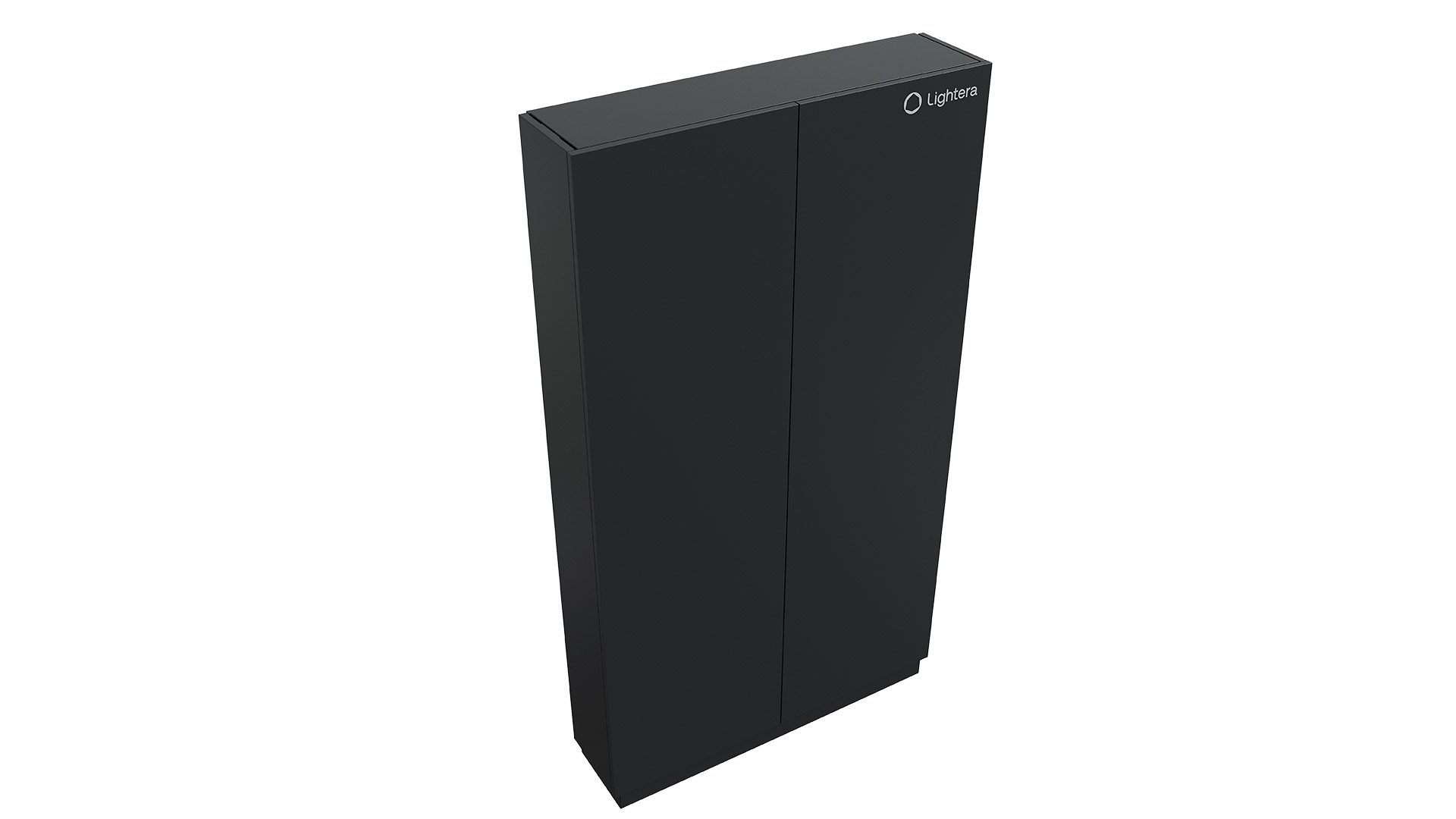

TARS CABINET 45U – HIGH DENSITY

The TARS 45U High Density Cabinet is designed and optimized for deployment and high-density storage of optical terminations and connections in enterprise, colocation, cloud, AI and/or HPC data centers.

Description

The TARS 45U – High Density Cabinet was developed and optimized for high-density deployment and storage of optical terminations and connections in enterprise, colocation, cloud, and/or HPC data centers. It meets the requirements for successful mass and/or single splices, as well as pre-connectorized terminations.

This cabinet features a multifunctional, high-density structure, optimized to house high-density fiber optic modules for terminating and distributing single-tube fiber optic cables, as well as high-fiber Ribbon cables.

High-density solution for installation environments with reduced depth and various mounting layout configurations. For more details consult the TARS Solution Application Guide, available on Lightera's website.

Provides only front access for installation, operation, and maintenance.

Large entry/exit paths for cables and optical cords on the top of the cabinet with brushes to facilitate cable entry.

Solid and smooth doors, double front, pivoting and with 2-point locking with cremone type lock.

Standalone structure suitable for distributing up to 3,456 fibers with LC type connectors.

Application

EF – Entrance Facilities Room

TR – Telecommunications Rooms

MMR´s – Meet-Me-Rooms

MDA – Main Distribution Areas

IDA´s – Intermediate Distribution Areas

HDA´s – Horizontal Distribution Areas

EDA´s – Equipment Distribution Areas

Cages in data centers of colocation

For more applications, please consult the Application Guide – TARS Solution, available in the website lightera.com

Advantage

This TARS cabinet is capable of supporting and housing a larger number of optical connections while occupying less space, allowing for the expansion of services such as accommodating more equipment and a higher client density, without the need for major physical expansions, combining secure routing and practical maintenance.

It can also be used in retrofits of telecommunications entrance rooms, container data centers and edge data centers to transition cables from external to internal environments.

Installation Environment

Indoor

Operation Environment

Non-aggressive

Dimensions

45U useful and available for installing ODF modules.

Compatibility with 19” and 23” products.

Height (mm)

2200 mm

Width (mm)

1180 mm

Depth (mm)

303 mm

Color

Black RAL 9005

Cable Type

Rollable Ribbon Optical Cables

Flat Ribbon Optical Cables

Loose Tube Optical Cables

Fiber Type

OS1 Singlemode

OS2 Singlemode

Multimode OM4 (On request)

Multimode OM5 (On request)

Connector Type

LC Duplex

SN Duplex (On request)

SN-MT (On request)

MDC (On request)

MMC (On request)

CS (On request)

MPO (On request)

Polishing Type

UPC

APC

Paint Type

Finished in scratchproof high resistant black epoxy

Main Product Material

Carbon Steel

protection rating

IP 20

Mechanical characteristics

Adjustable columns for depth compatibility.

Compatible with cage nuts and screw fastening method.

Fingers for organizing and accommodating optical cords.

High-density type spool cable manager.

Removable front doors with an internal shaft mechanism with lock and key.

Top cable entry with brush closure.

Cable entry at the lower sides and lower rear with the possibility of removing protective covers.

Removable side covers with locks and key.

Compatible with cable trays, trays, cable troughs, wire trays, ducts, conduits, and raised floors.

Possibility of assembling the cabinets in side-by-side rows, back-to-back, among others, juxtaposed against the wall.

For handling and transport, it has four eyelets on the top.

Identification

Lightera's brand on the external front part.

TARS brand on the external front part.

Included Accessories

Installation Manual.

Velcro for organizing cables and cords.

Anchors for securing the cabinet to the floor.

Keys to the doors and side plates.

Complementary Accessories

Grounding Bar (Separately purchased)

Warranty

12 months

25 Years Extended Product Warranty – According to the Lightera Extended Warranty Program.

Compatibility

ODF TARS Fusion Module 4U

ODF TARS Termination Module 3U 288F

TARS Transition Box Module

Duplex LC Optical Patch Cords

Duplex Uniboot LC Optical Patch Cords

Trunk Cables MPO

OCS 42"

19" brackets, mounted on the top of the case to complement the organization of cable entries and exits in the case.

RoHS

This product reaffirms our commitment to global sustainability, in full compliance with the European RoHS and REACH Directives. This ensures the restriction of hazardous substances and the responsible management of all chemicals used. We guarantee a safer product for you and with a lower environmental impact. A conscious choice for a greener future.

Standard

EIA-310

TIA-942

TIA-568

TIA-569

ISO/IEC 11801-5

ABNT NBR ISO IEC 22237

Weight (kg)

164

Package

Pallet and wood structure.

Corrugated cardboard.

Quantity per gift box

Note

1) This product was developed to have the capacity to store up to 3,456 fibers with LC type connectors, mass fusion splicing, and Ribbon cables. The use of loose tube construction cables and single splicing reduces its capacity by half.

2) Trust Lightera. Our standards of excellence are internationally recognized. With ISO 9001 certifications for the Quality Management System and ISO 14001 for the Environmental Management System, we ensure a safer and more efficient future for you, your company, and the planet.

3) For Mounting and Installation details, please consult Installation Manual of Product. Available on Lightera's website.

4) Application Details,please consult TARS Application Guide. Available on Lightera's website.

5) TARS is a LIGHTERA's brand currently in the registration process. Unauthorized use is subjected to legal action for intellectual property violation.

6) Dislaimer of Liabilty: Lightera reserves the right to make updates to the products described in this document at any time without prior notice. This document is supplied exclusively for information purposes and is not intended to modify or add any warranty or specification of any products or services.

7) Contact Information: For more details and information about our products, please contact us at:
Website: lightera.com
Customer Service Center: 0800 041 2100
E-mail: lightera@latam.lightera.com

Technical drawing
